Removing And Installing Horn: Removal

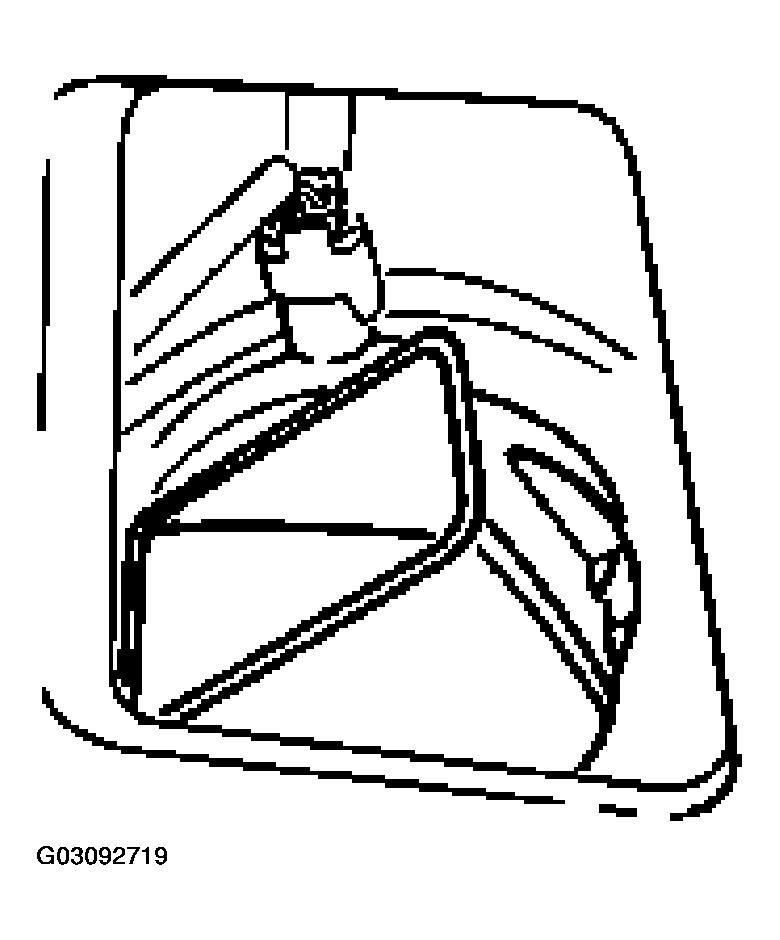

Fig 1: Removing Horn

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. The high-pitch horn can be removed from below through the sound outlet opening. Pull off electrical plug connection and observe installation position of the horn.
2. Unscrew the M 6 hexagon nut from the bracket and remove the high-pitch horn through the sound outlet opening.

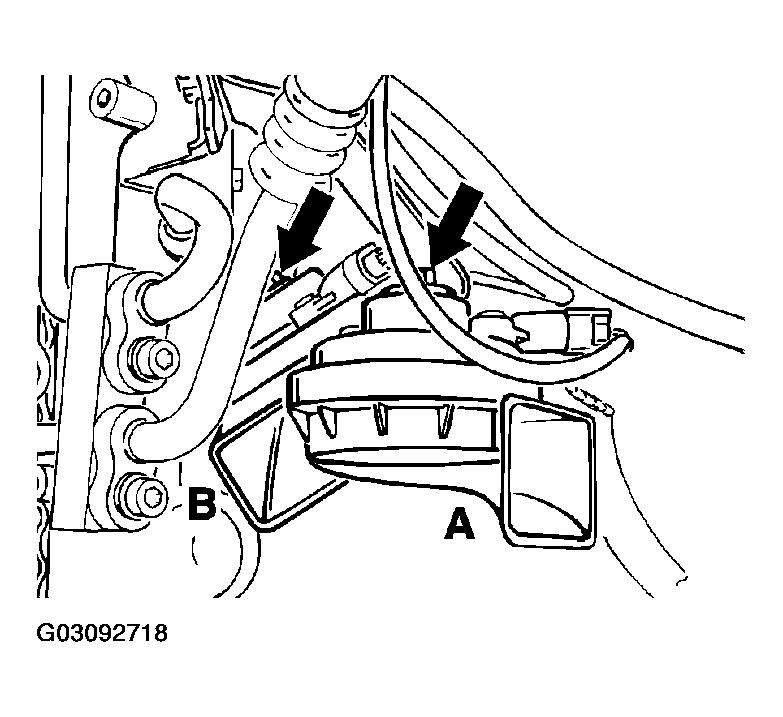

   Fig 2: Removing High-Pitch Horn Through Sound Outlet Opening

   Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

• The entire front end must be removed in order to remove the low-pitch horn.
