Diagnosis Procedure: Notes

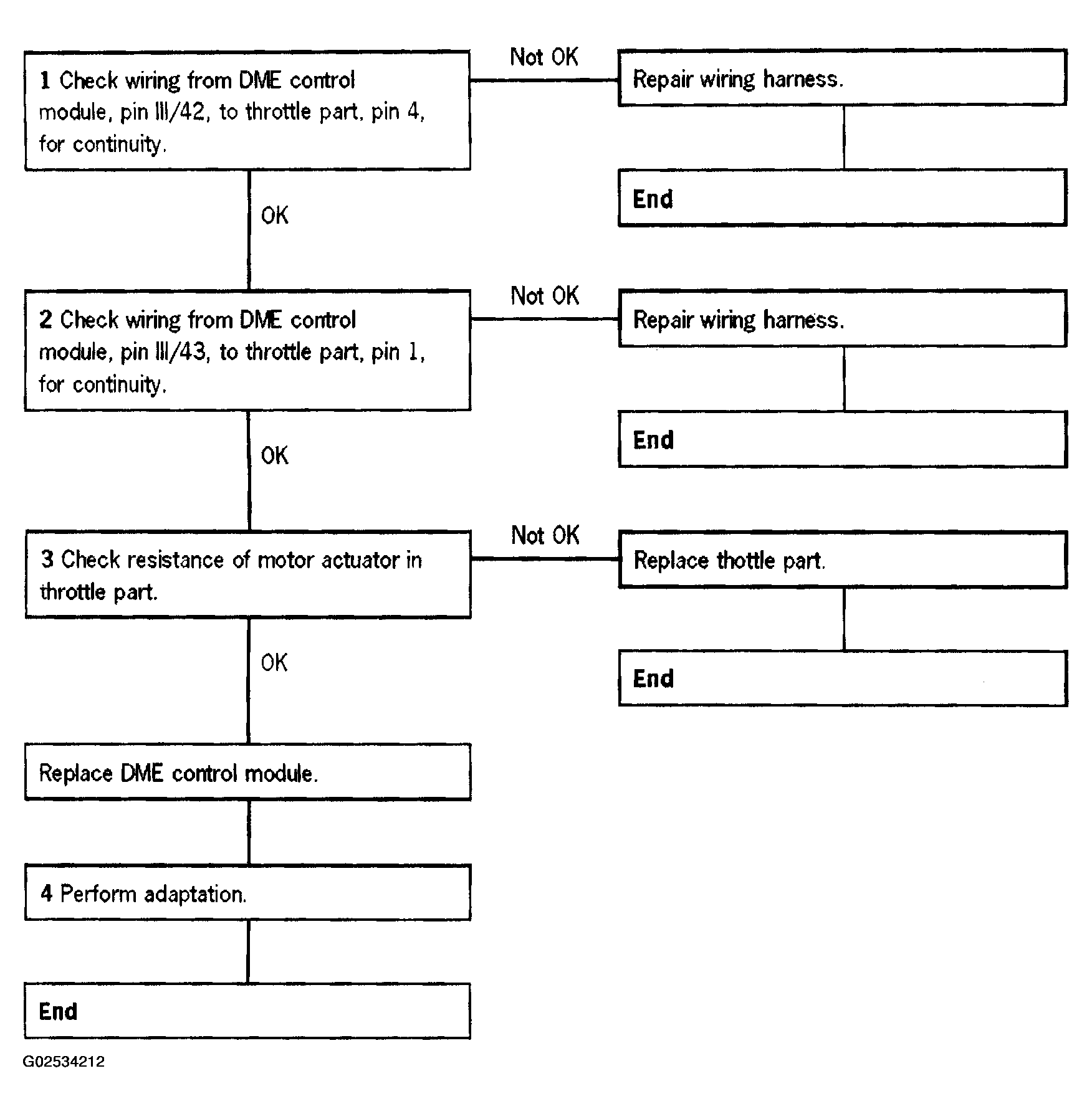

Fig 1: DTC P1505 Diagnostic Procedure (Open Circuit)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

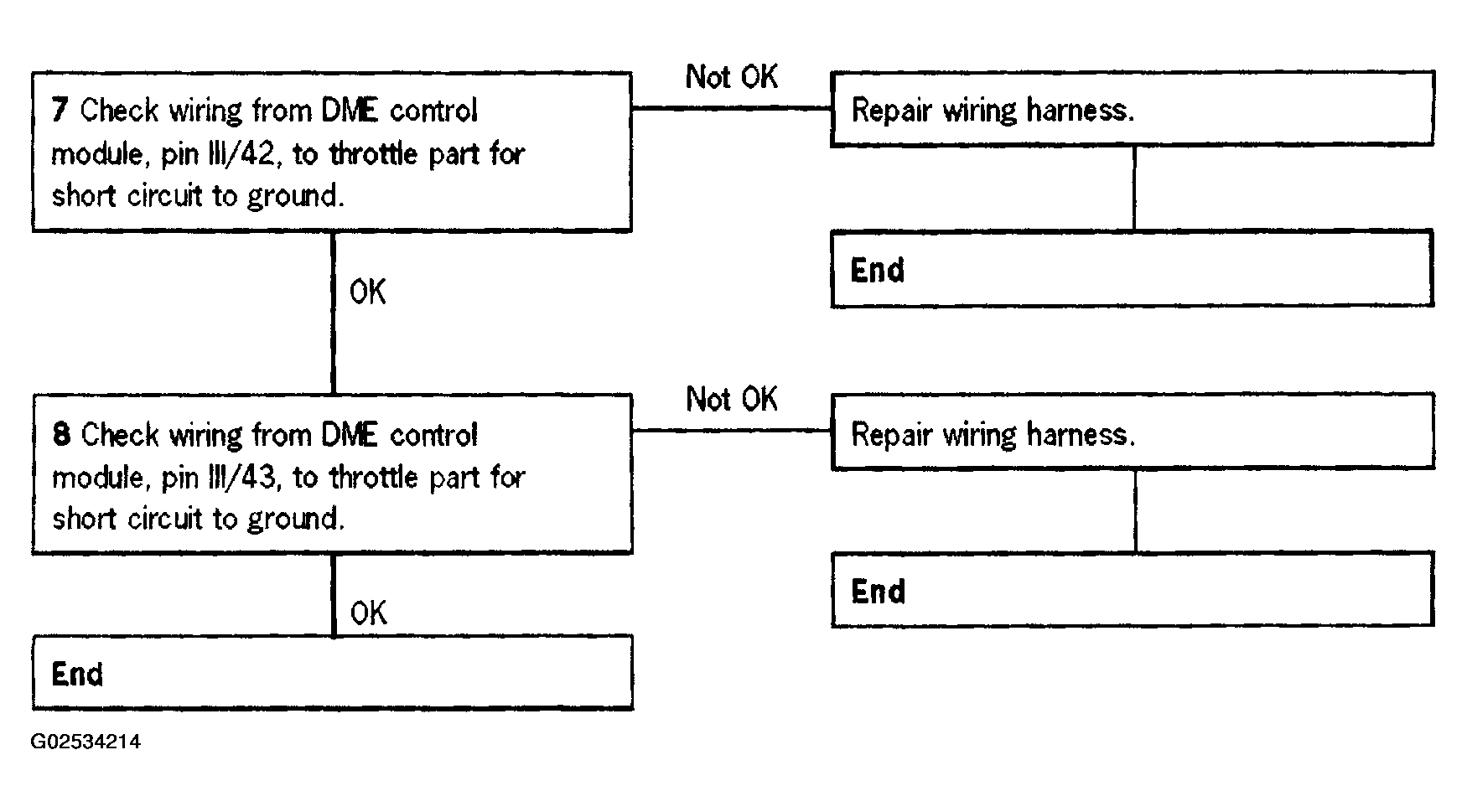

Fig 2: DTC P1505 Diagnostic Procedure (Below Limit)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

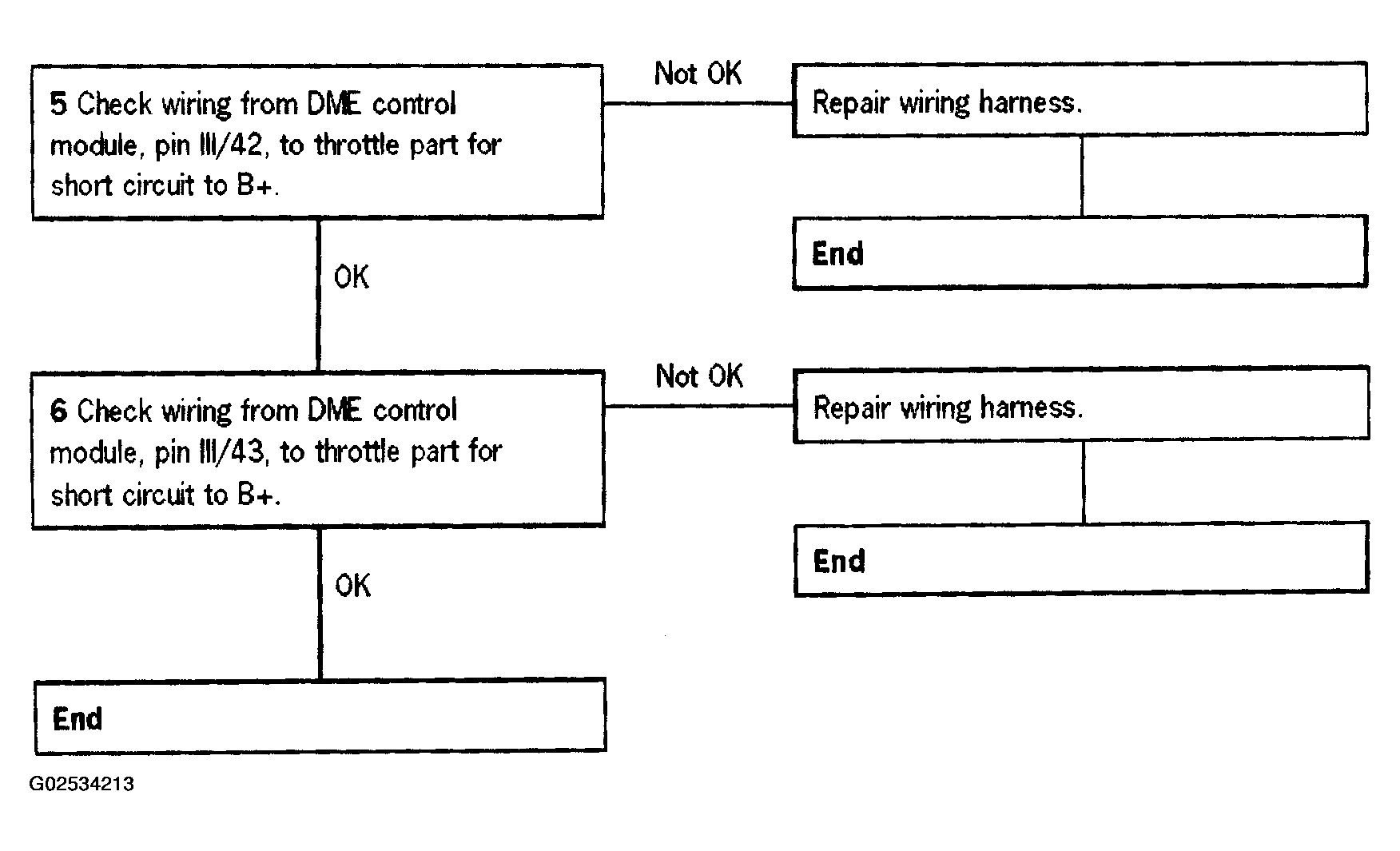

Fig 3: DTC P1505 Diagnostic Procedure (Above Limit)

Courtesy of PORSCHE OF NORTH AMERICA, INC.
