Check Wiring From Airbag Control Module To DME Control Module For Continuity

  1. Connect special tool 9637 to wiring harness (DME control module connector).
  2. Remove connector of airbag control module.

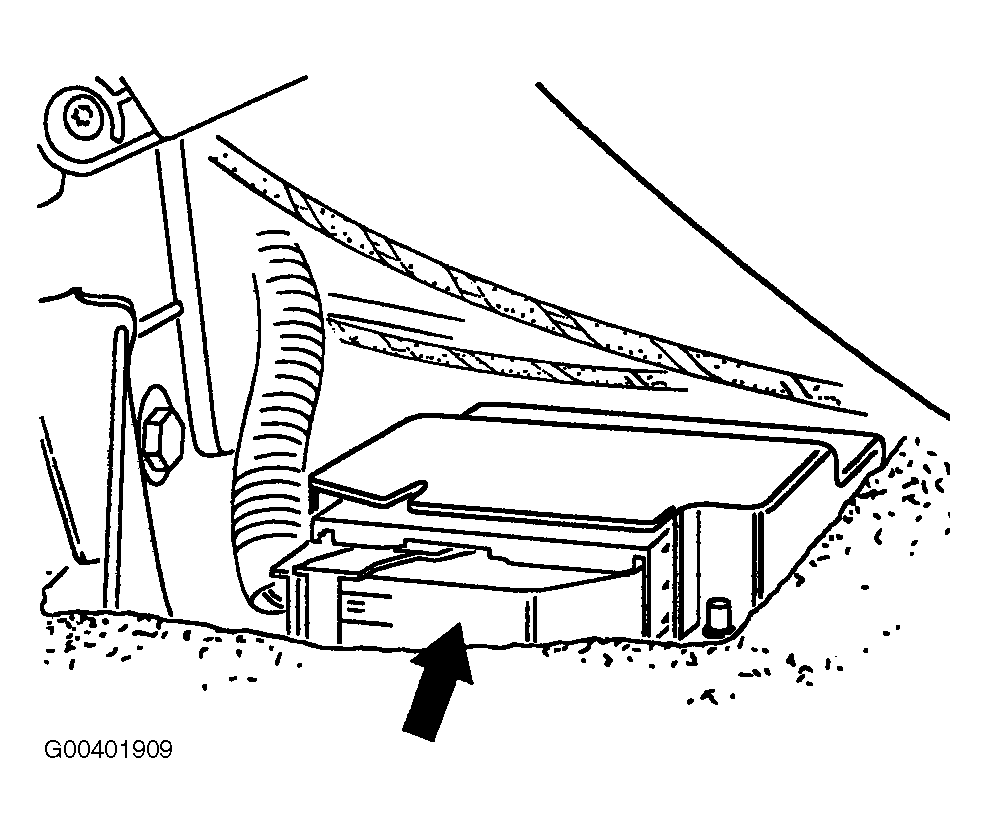

    Fig 1: Locating Airbag Control Module
    G00401909Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Connect ohmmeter to special tool 9637, pin IV/16, and airbag connector, pin 24 or 34.

    Display: 0-5 ohms

    If infinity ohms is displayed, check connector C 2/5 or check wiring harness for chafing and pinching damage.
