Removing And Installing Long Flanged Shaft: Removal

  1. Remove left rear wheel.
  2. Drain rear-axle oil. Refer to CHANGING AND CHECKING TRANSMISSION OIL IN FINAL DRIVE  .
  3. Uncouple left drive shaft on the transmission side and protect shaft from damage (use piece of hose with diameter of approximately 30 mm).
  4. Unscrew fastening screw (A) for coolant pipe and (B) for the mounting saddle.

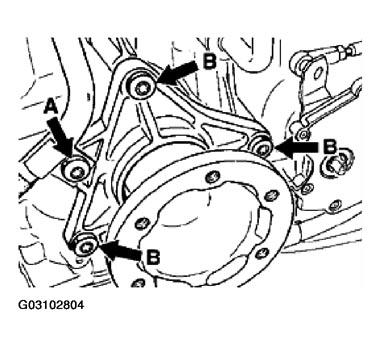

    Fig 1: Removing Coolant Pipe And Mounting Saddle Fastening Screws
    G03102804Courtesy of PORSCHE OF NORTH AMERICA, INC.
  5. Carefully pull out flanged shaft.
