Adjusting The Drive Set (Transmission G 86): Tools

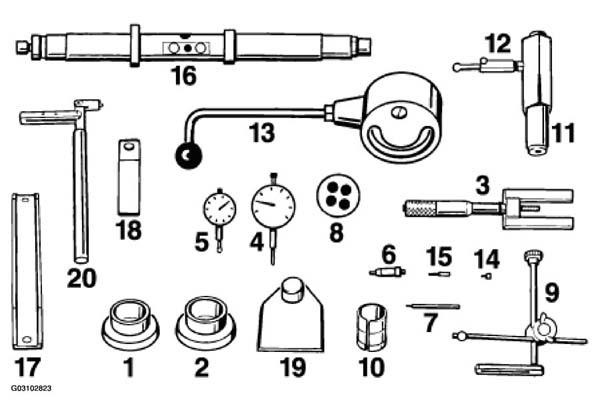

Fig 1: Identifying Special Tools - Drive Set Adjustments

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOLS DESCRIPTION

No.	Designation	Special tool	Explanation
1(1)	Centring disc	VW 385/4
2(1)	Centring disc	VW 385/3
3(1)	Universal master gauge	VW 385/30
4(1)	Dial gauge	-	Commercially available
5(1)	Dial gauge	-	Commercially available, measuring range 3 mm
6(1)	Gauge plunger	VW 385/14
7(1)	Dial gauge extension	VW 385/56	30 mm long
8(1)	End plate	VW 385/17
9(1)	Gauge holder	VW 387
10(1)	Clamping sleeve	VW 521/12
11(1)	Adjustment device	VW 521/4
12(1)	Measuring lever	VW 388
13(1)	Torque gauge	-	Commercially available 0...600 Ncm
14(1)	Dial gauge extension	VW 382/10	6.0 mm long
15(1)	Dial gauge extension	VW 385/15	9.3 mm long
16(1)	Measuring mandrel	VW 385/1
17(1)	Holder	VW 792/1
18(1)	Holder	3177
19(1)	End plate	VW 385/33
20(1)	Lever	VW 296
(1) For explanation see Fig 1
