Alarm System Control Unit (GROUP 9, NO. 4/01)

WARNING: This page is about the Boxster Base, Automatic, which is a different variant/trim than selected.
Publication date: 2001-04-19
Reference number: GROUP 9, NO. 4/01

ALARM SYSTEM CONTROL UNIT

ALARM SYSTEM CONTROL UNIT

TECHNICAL SERVICE BULLETIN

Reference Number(s): 4/01, Date of Issue:  April 19, 2001
PORSCHE: MY 1997 (V) Boxster/Boxster S
GROUP: A/C & Equipment

DESCRIPTION

Alarm System Control Unit

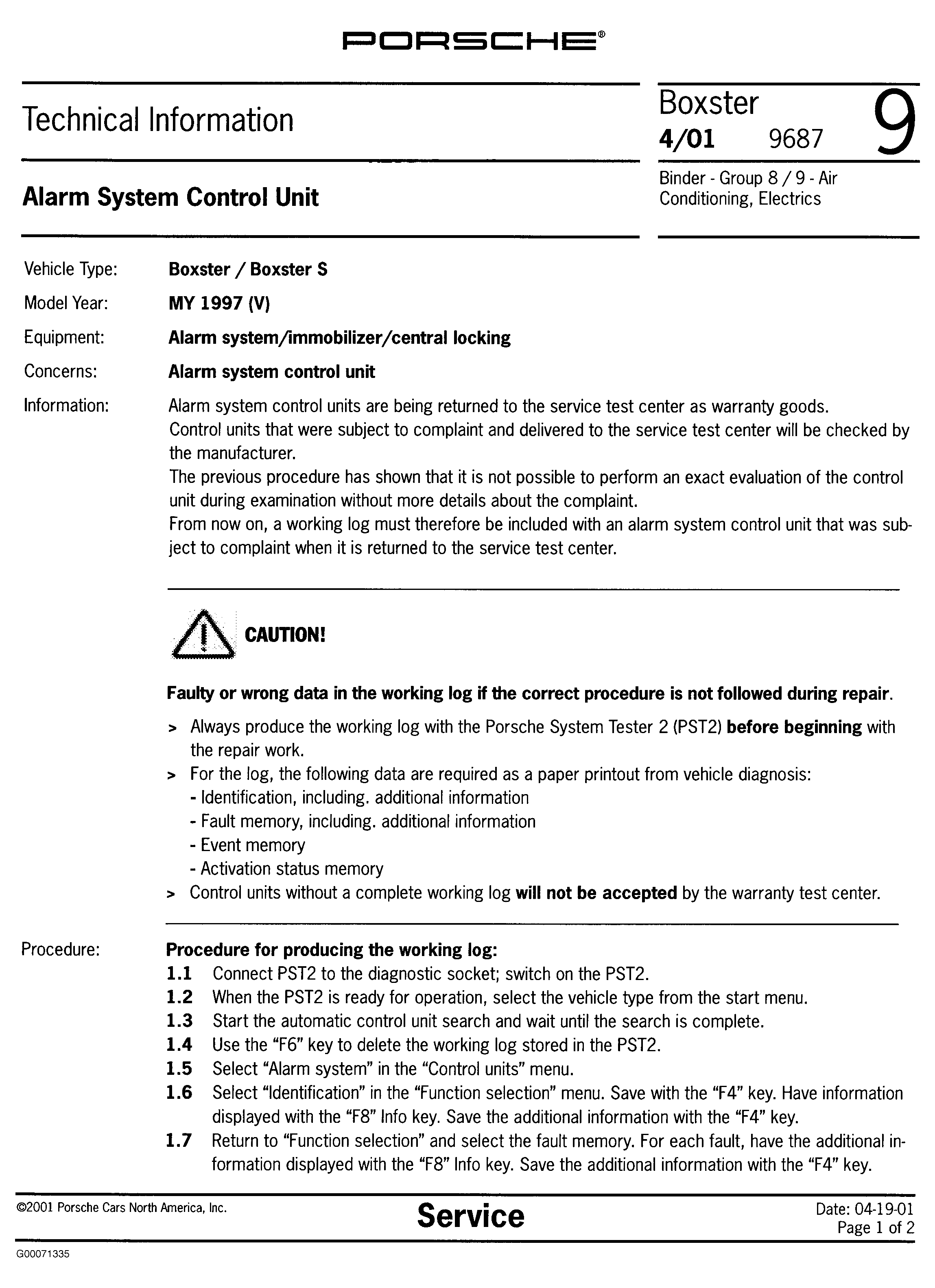

Fig 1: Page 1 of Bulletin
G00071335

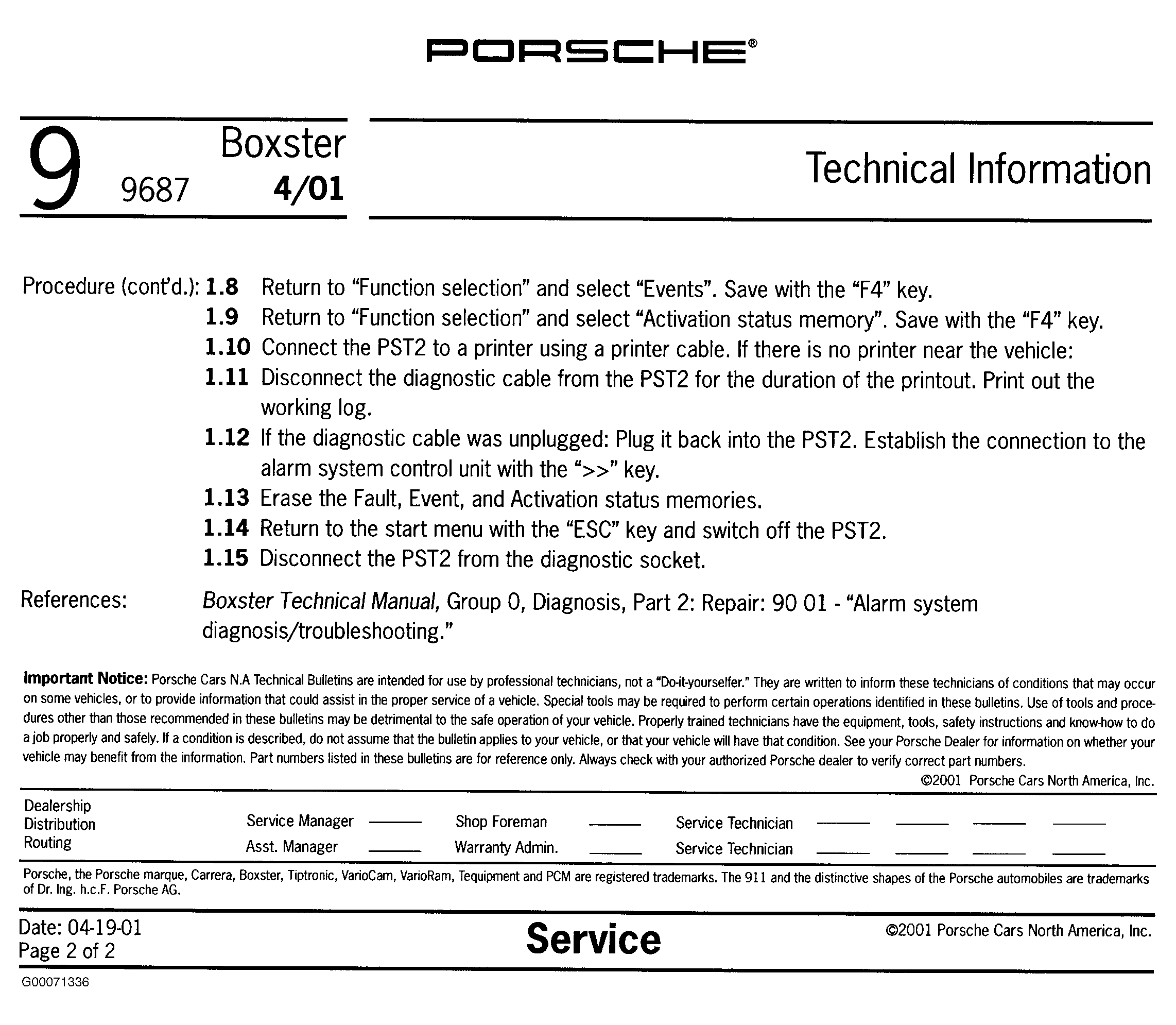

Fig 2: Page 2 of Bulletin
G00071336
