Assembling The Instrument Panel: Notes

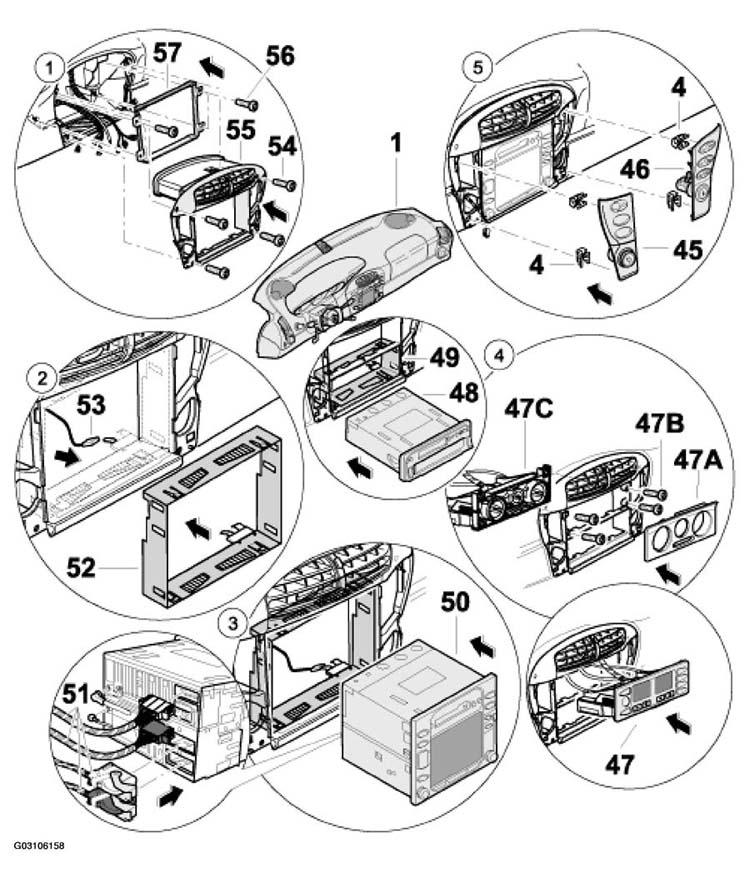

REMOVING AND INSTALLING PROCEDURE FOR INSTRUMENT PANEL (1 Of 3)
| No. | Procedure | Instructions | ||
|---|---|---|---|---|
| Installing the regulator for wipe interval | ||||
| Installing the cigarette lighter | ||||
| 1 | Installing the inside retaining bracket and the center nozzle | Position the inside retaining bracket -57-1-56-55-54- (1) | ||
| 2 | Installing the PCM retaining bracket | Insert the retaining bracket -52-53- (1) | ||
| 3 | Installing the PCM -50- (1) | Connect the electrical plug connection -51- (1) Refer to REMOVING AND INSTALLING DISPLAY AND OPERATOR CONTROL UNIT (PCM) AS OF MODEL YEAR 2003 . Refer to REMOVING AND INSTALLING DISPLAY AND OPERATOR CONTROL UNIT (PCM) AS OF MODEL YEAR 2003 . |
||
| 4 | Installing the mechanical heating and fresh air regulator version -47A, 47B, 47C-47-48- (1) | See REMOVING AND INSTALLING HEATING AND FRESH-AIR CONTROL
. See REMOVING AND INSTALLING MECHANICAL HEATING AND FRESH-AIR CONTROL . See REMOVING AND INSTALLING THE CAR RADIO . |
||
| 5 | Installing the switch covers | Plug in the electrical plug connections. (Observe the color designation of the wiring harness switches). -4-45 and 46- Check the clips -4-45 and 46- (1) |
||
|
||||

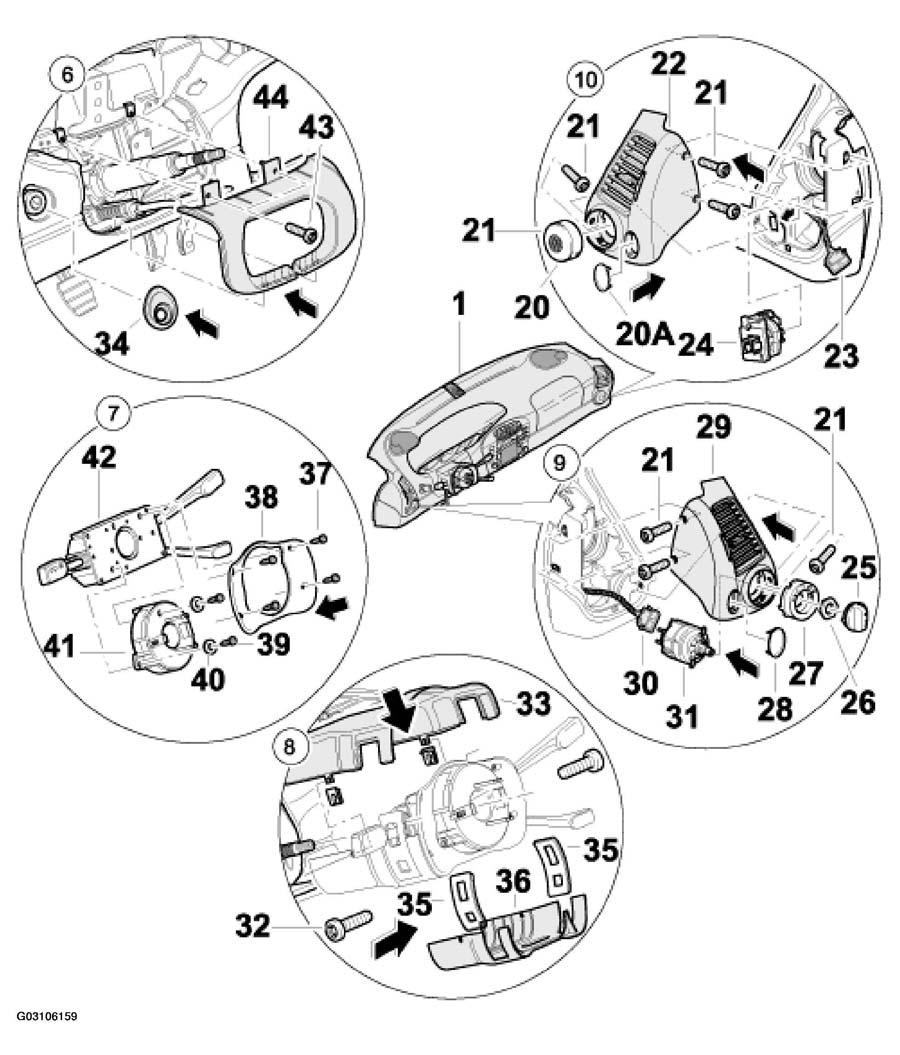

REMOVING AND INSTALLING PROCEDURE FOR INSTRUMENT PANEL (2 Of 3)
| No. | Procedure | Instructions | ||
|---|---|---|---|---|
| 6 | Installing the steering column cover | Position the steering column cover -44-43- Fig 2 | ||
| 7 | Installing the steering column switch | Connect the electrical plug connection of the steering column switch -42-41-38-37- Fig 2 Refer to REMOVING AND INSTALLING THE CONTACT UNIT |
||
| 8 | Installing the steering column switch cover | Position the steering column switch cover at the top and bottom or laterally -33, 36, 35-32-36-33- Fig 2 | ||
| 9 | Installing left side nozzles and main light switch | Connect the electrical plug connection -30-31-27-29-27-26-3.5 N.m (2.5 ft.lb)--21-25-28- Fig 2 | ||
| 10 | Installing the right side nozzles and the temperature sensor | Engage the temperature sensor -24-1-22-1-21-20, 20A Fig 2 (1) | ||
|
||||

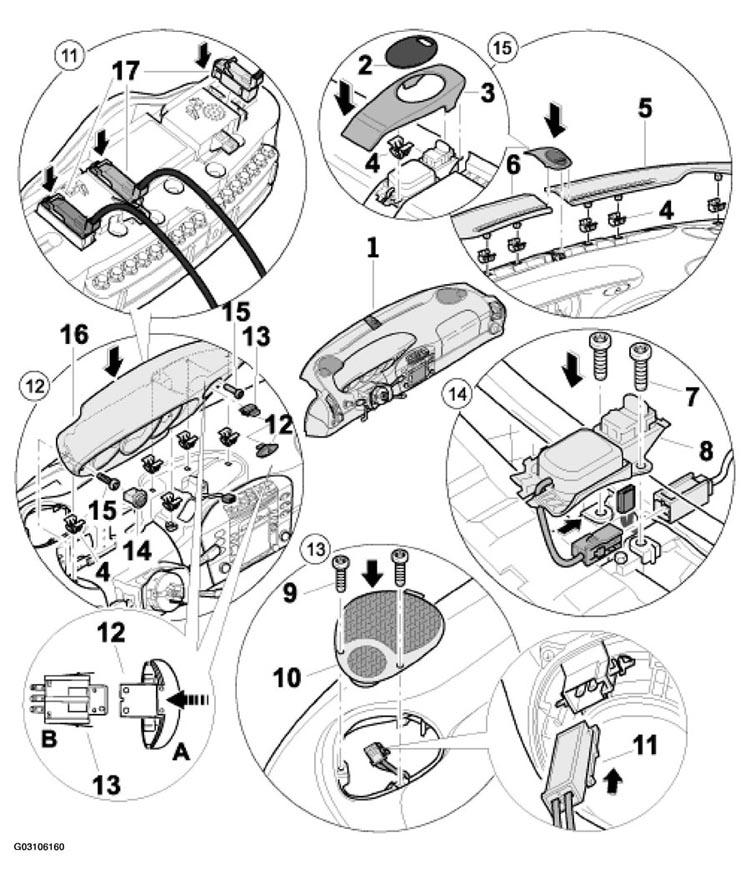

REMOVING AND INSTALLING PROCEDURE FOR INSTRUMENT PANEL (3 Of 3)
| No. | Procedure | Instructions | ||
|---|---|---|---|---|
| 11 | Connecting instrument cluster electrical plug connection | Plug in the electrical plug connection of the instrument mount. After inserting the plug connection -17-direction of the arrow- (1) | ||
| 12 | Installing instrument mount | Fit the hazard warning light switch -13-4-15-12-14- (1) | ||
| 13 | Installing the loudspeaker | Connect electrical plug connection -11-9- (1) | ||
| 14 | Installing the alarm readiness unit | Connect the plug connection. Secure the alarm readiness unit -8-7- (1) | ||
| 15 | Installing the alarm readiness cover and the defroster cover | Clip the defroster covers on the left and right -5, 6-4-3-8-4- (1) | ||
|
||||
