Welding in front wall
Courtesy of PORSCHE OF NORTH AMERICA, INC. FRONT WALL WELDING PROCEDURE
| No. |
Procedure |
Instructions |
| 1 |
Plug-welding front wall/side members and wheel housings |
Plug-weld the front wall to the side members -A-, D-B-

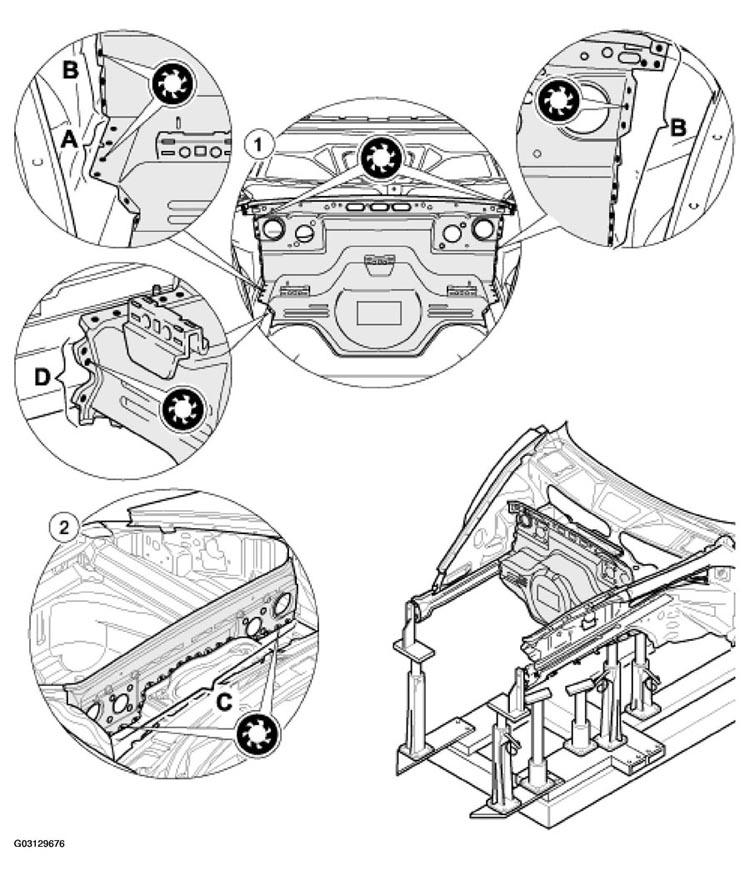

. See Fig 1
. |
| 2 |
Plug-welding radiator tank/front wall. |
Plug-weld radiator tank to the front wall -C-
. See Fig 1
. |
