Cleaning front water drains

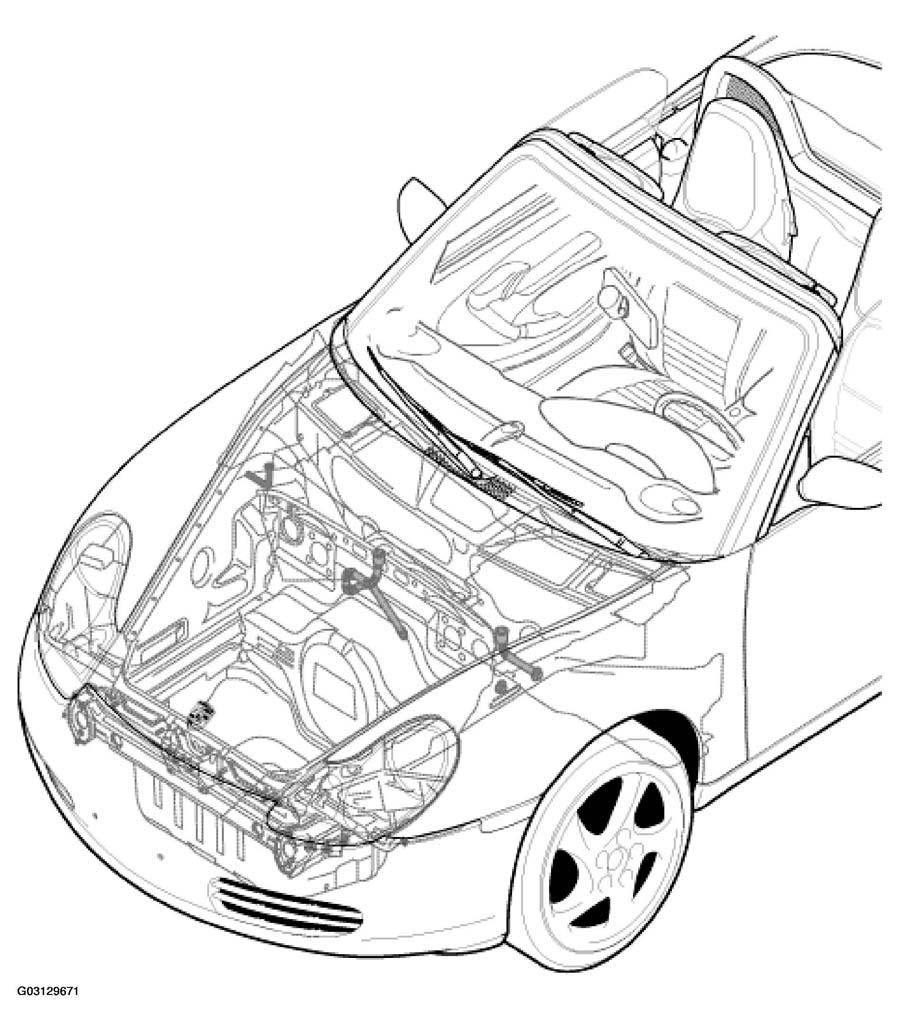

Fig 1: Identifying Front Water Drains
G03129671Courtesy of PORSCHE OF NORTH AMERICA, INC.
Fig 2: Identifying Front Water Drains Components
G03129672Courtesy of PORSCHE OF NORTH AMERICA, INC.
CAUTION: Material damage due to water leakage!
  • Water drainage hoses can be pushed out or pressed in when blown out of the body
  • The water drains should be blown out carefully with compressed air.
FRONT WATER DRAINS REFERENCE

No. Procedure Instructions
  Remove cowl panel cover Refer to REMOVING AND INSTALLING COWL PANEL COVER .
1 Blow out water drains on right side of front end Carefully blow out water drainage -1-inset A-inset B-  . See Fig 2 .
2 Blow out water drains on right side of front end Carefully blow out water drainage -2-inset A-inset B-  . See Fig 2 .
3 Blow out water drainage on left side of front end. Put vehicle onto platform lift and carefully blow out the left water drainage -3-inset B-inset B-  . See Fig 2 .
4 Blow out water drainage on left side of front end. Put vehicle onto platform lift and carefully blow out the left water drainage -4-inset A-inset B-  . See Fig 2 .
  Installing cowl panel cover Refer to REMOVING AND INSTALLING COWL PANEL COVER .
