Home >> Porsche >> 2000 >> Boxster Base, Standard >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> DME 7.2 - 911 CARRERA & BOXSTER >> DTC P1503: Throttle Jacking Unit, Position Error - Signal Implausible >> Diagnosis Procedure >> Notes

Diagnosis Procedure: Notes

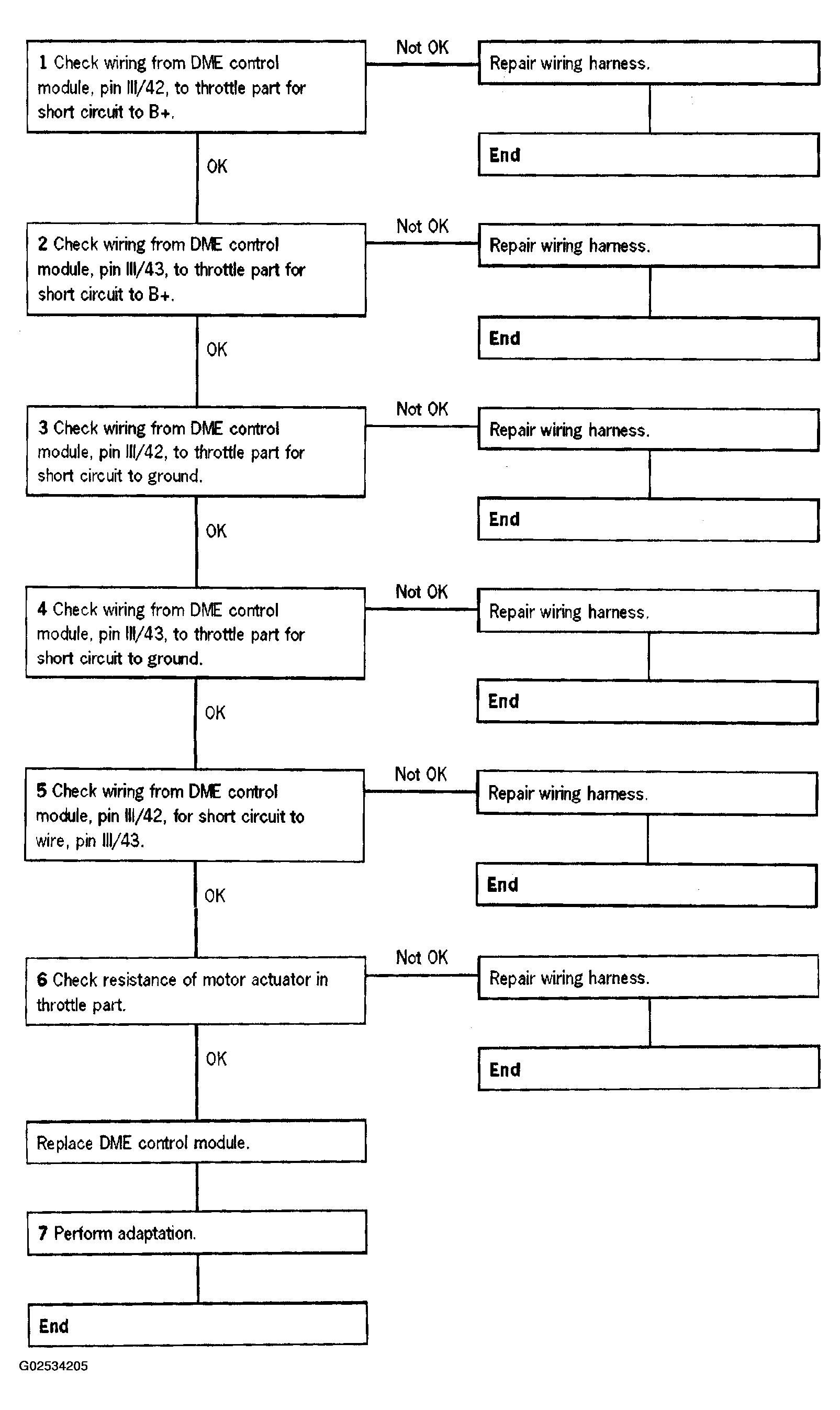

Fig 1: DTC P1503 Diagnostic Procedure

G02534205

Courtesy of PORSCHE OF NORTH AMERICA, INC.
