Removing DME control module

NOTE: Switch ignition off and remove ignition key.
  1. Open rear luggage compartment lid and lever out the clips for the carpet lining using the removal tool. See TOOLS  .

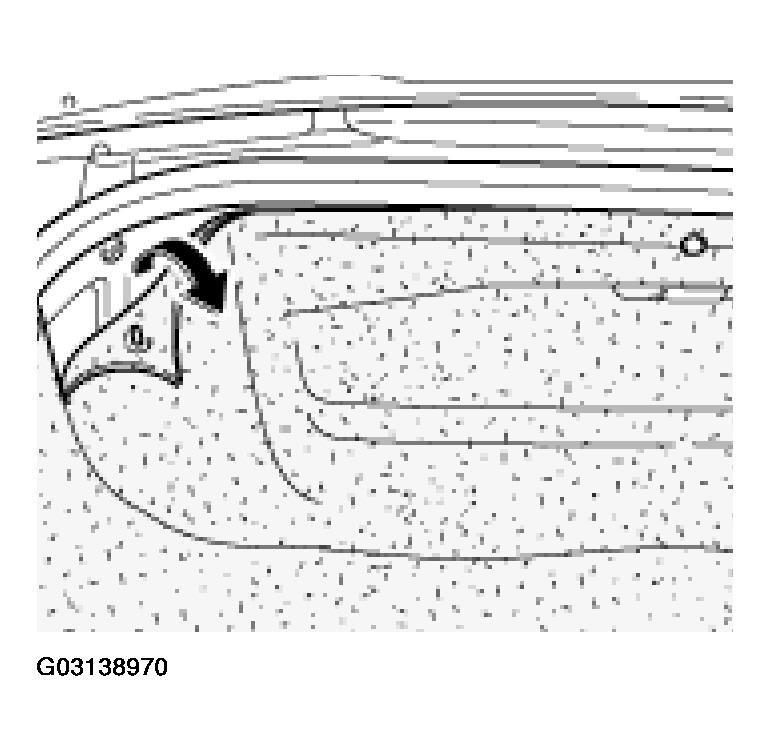

    Fig 1: Levering Out Clips For Carpet Lining
    G03138970Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Fold over the carpet lining and unscrew the 3 fastening nuts.

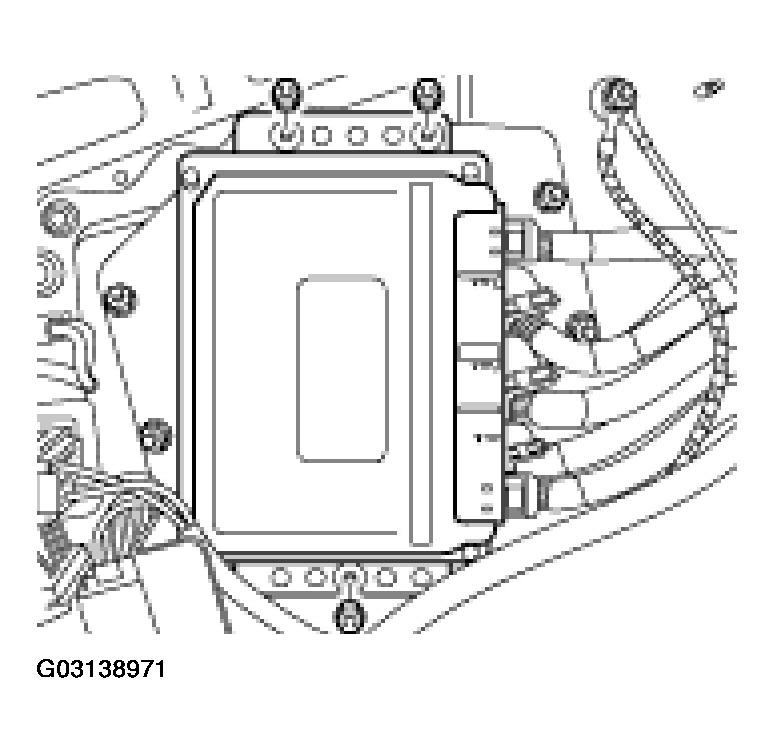

    Fig 2: Unscrewing Fastening Nuts From DME Control Module
    G03138971Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Lift out the control module and push in plugs -A- -arrow-  and remove. See Fig 3 .

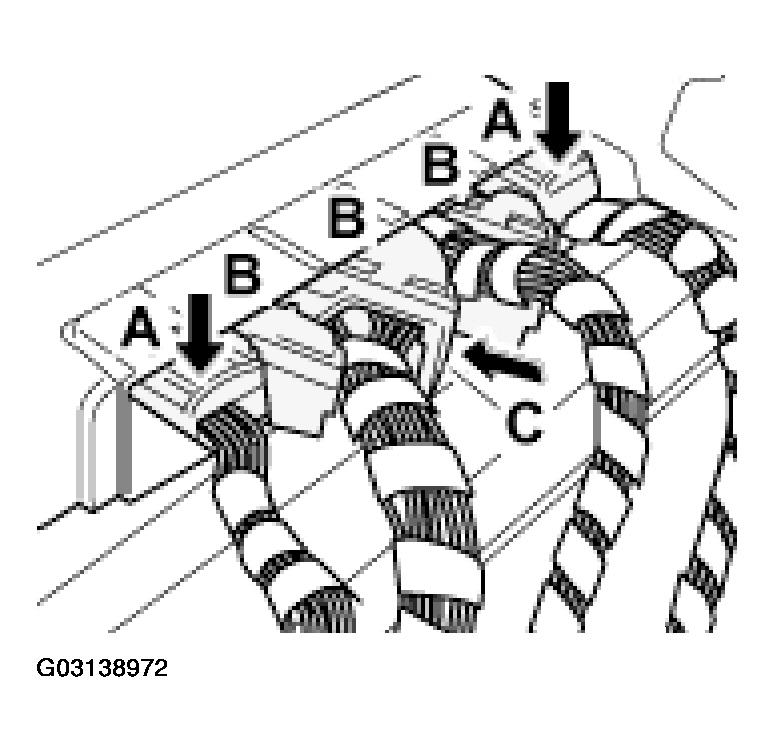

    Fig 3: Lifting Out Control Module And Push In Plugs
    G03138972Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Press in locking element -arrow-  of plugs -B-  and actuate latching lever -C-  . See Fig 3 .
  5. Remove the control module.
