Installing the DME control module

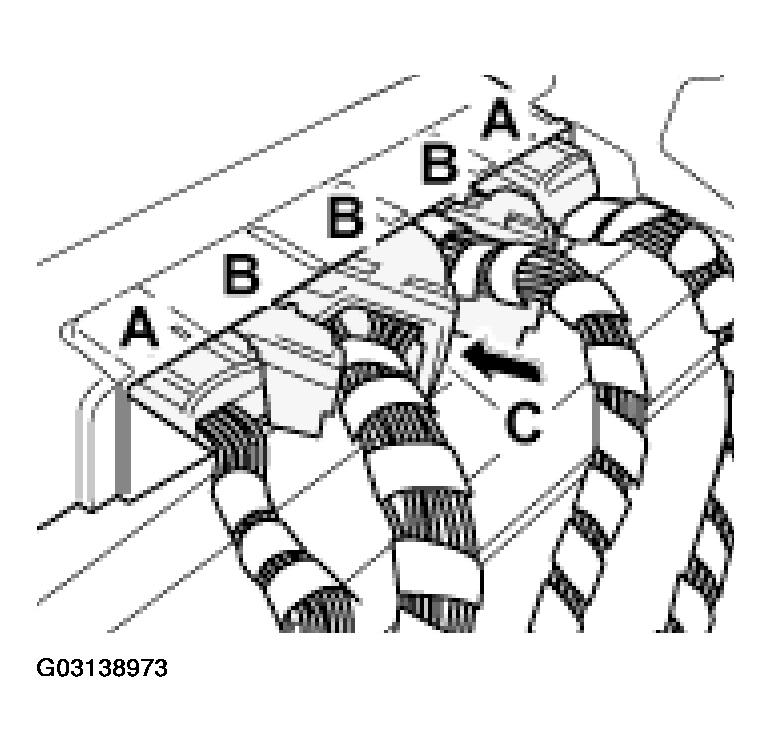

- Push in plugs -B-
on the DME control module and close the latching lever -C-
until the lever engages. See Fig 1
.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
- Press in plugs -A-
on the control module, until they engage. See Fig 1
.

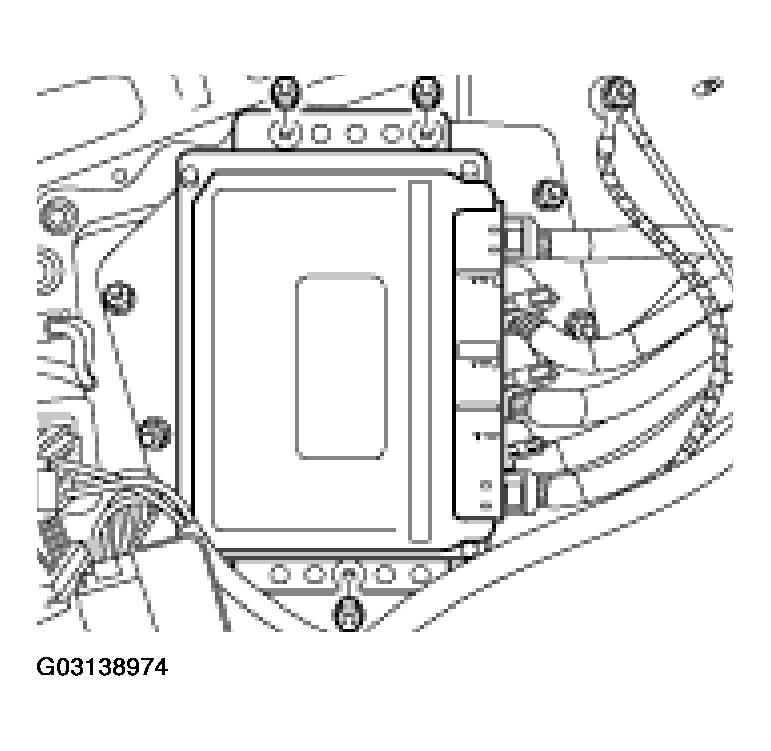

- Position control module and secure with the fastening nuts. Tightening torque: 10 Nm (7.5 ftlb.).
Courtesy of PORSCHE OF NORTH AMERICA, INC.
- Fold back the carpet lining into position and fasten with the clips.
- Program the DME control module with the Porsche System Tester. See PROGRAMMING NEW DME CONTROL MODULE
and PROGRAMMING DME CONTROL MODULE
.
