Installing Display And Operator Control Unit (Pcm 2)

NOTE:
  • If a new PCM is being installed, the navigation module must be removed from the old PCM and installed in the new PCM.
  • If the old PCM is being reinstalled, then begin at Step   6  .
  1. Before the new  PCM is installed, unlock and disconnect the protective plug -A-  for the optical waveguide. See Figure .

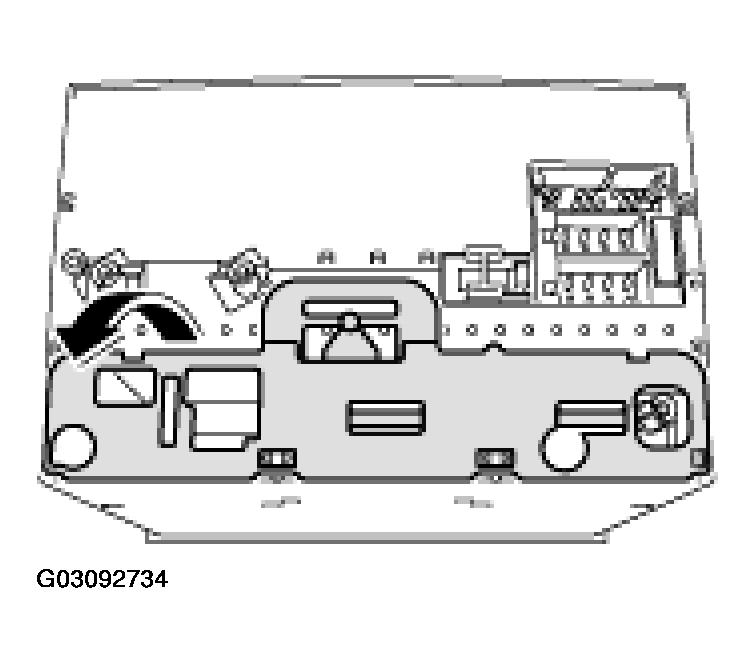

    Fig 1: Unlocking And Disconnecting Protective Plug From NEW PCM
    G03092734Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Unclip the cover on the new  and old  PCM.
  3. With the PCM removed, carefully lever out the navigation module using a screwdriver.

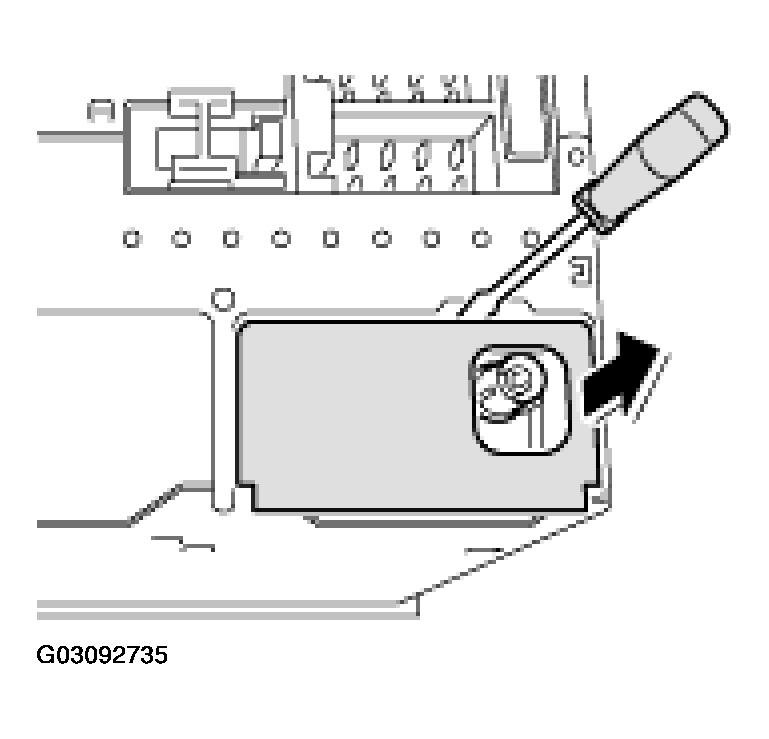

    Fig 2: Removing Navigation Module With Screwdriver
    G03092735Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Insert the navigation module into the PCM to be installed.

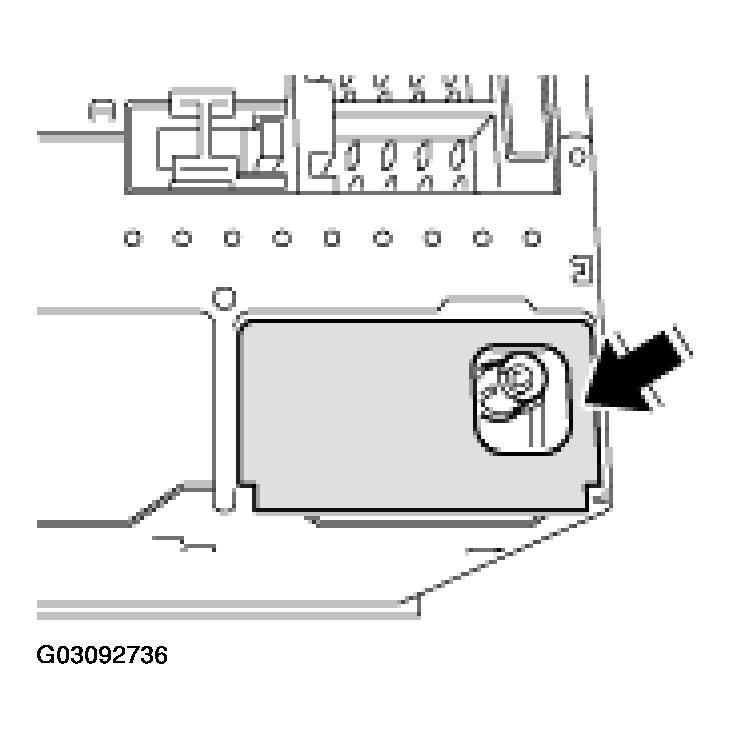

    Fig 3: Inserting Navigation Module Into PCM
    G03092736Courtesy of PORSCHE OF NORTH AMERICA, INC.
  5. Position the cover and press in place.

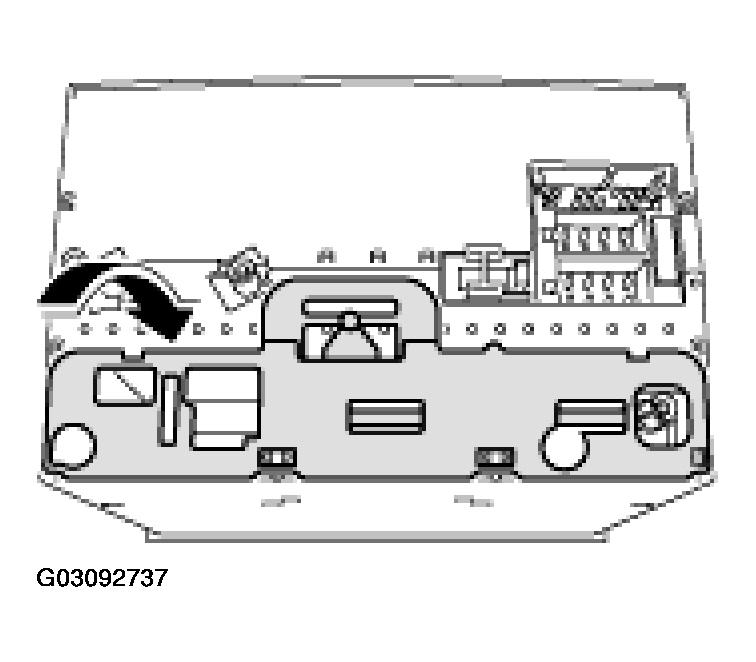

    Fig 4: Positioning Cover In Place
    G03092737Courtesy of PORSCHE OF NORTH AMERICA, INC.

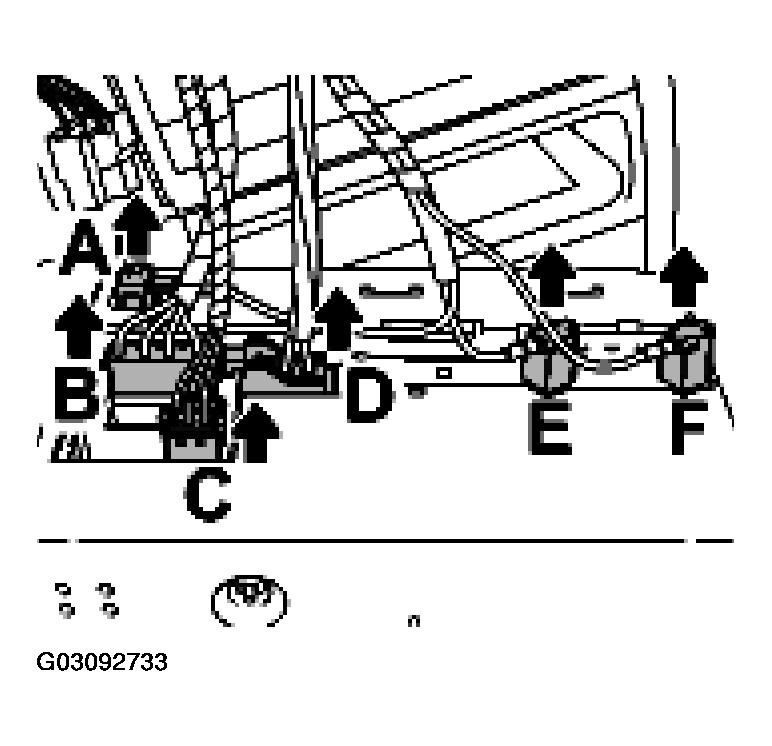

  6. Push on the electrical plug connections for the display and operator control unit in the sequence -D, B, A-  and the antenna plugs -A, E and F-  until they are felt to engage. See Fig 5 .

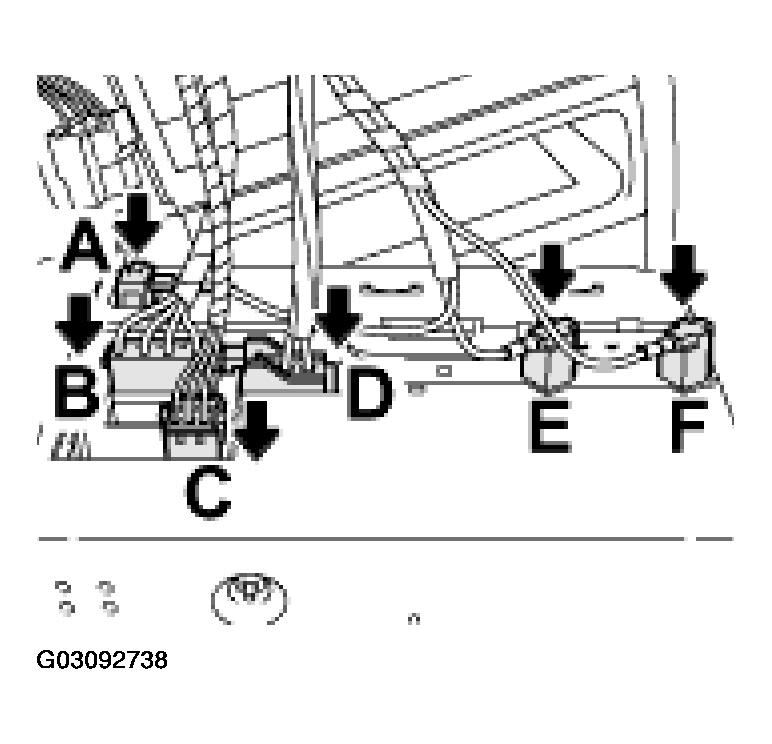

    Fig 5: Pushing On Electrical Plug Connections
    G03092738Courtesy of PORSCHE OF NORTH AMERICA, INC.
  7. Check that the locking tabs on the PCM are out -arrow-  , opening the lock with a hexagon-socket wrench if necessary. See Fig 6 .

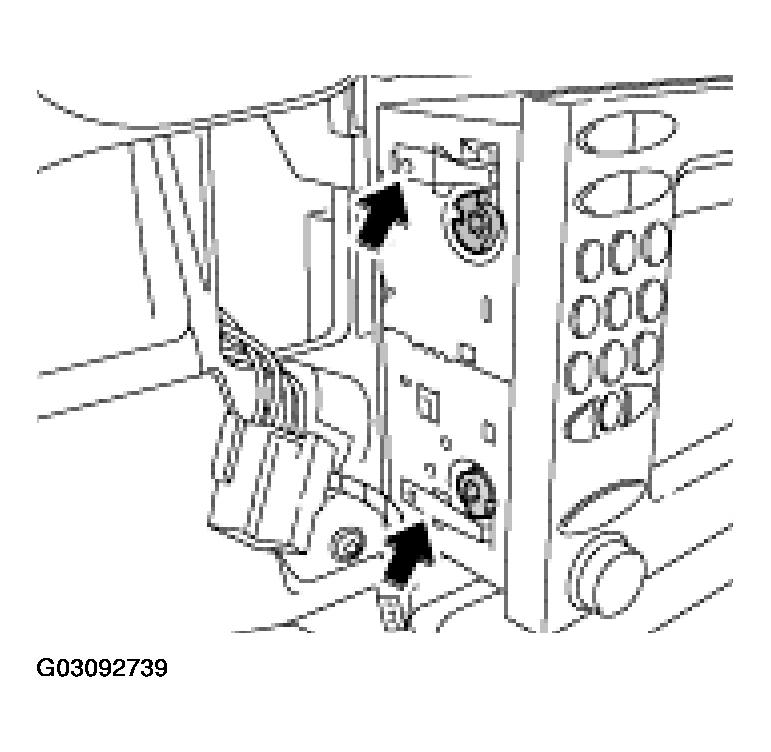

    Fig 6: Checking Locking Tabs On PCM
    G03092739Courtesy of PORSCHE OF NORTH AMERICA, INC.
    NOTE: Before sliding the PCM into the installation slot, make sure that the electrical leads are not trapped by the PCM or damaged.
  8. Push the navigation unit into the installation slot until the locks engage on the PCM housing.
  9. Connect the electrical plug connections to the switch cover.

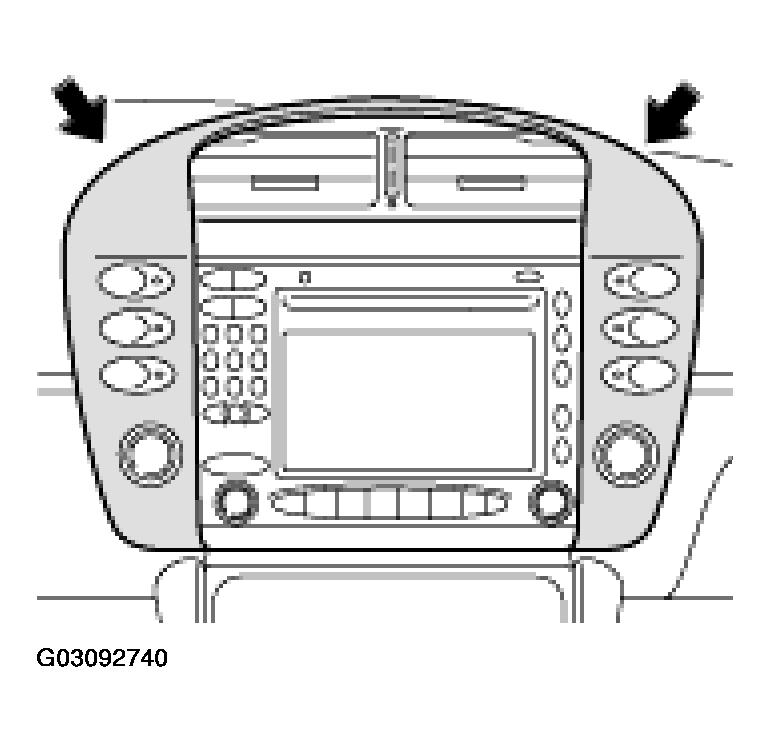

    Fig 7: Positioning Switch Cover
    G03092740Courtesy of PORSCHE OF NORTH AMERICA, INC.
  10. Position switch cover and press in until it is felt to engage.
    NOTE: After installation of a new display and operator control unit, the system must be activated with the Porsche System Tester!
  11. Connect and switch on the Porsche System Tester 2.
