Installing Control Unit For Alarm System
NOTE:
Only install the control unit with the battery disconnected. See WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY
.

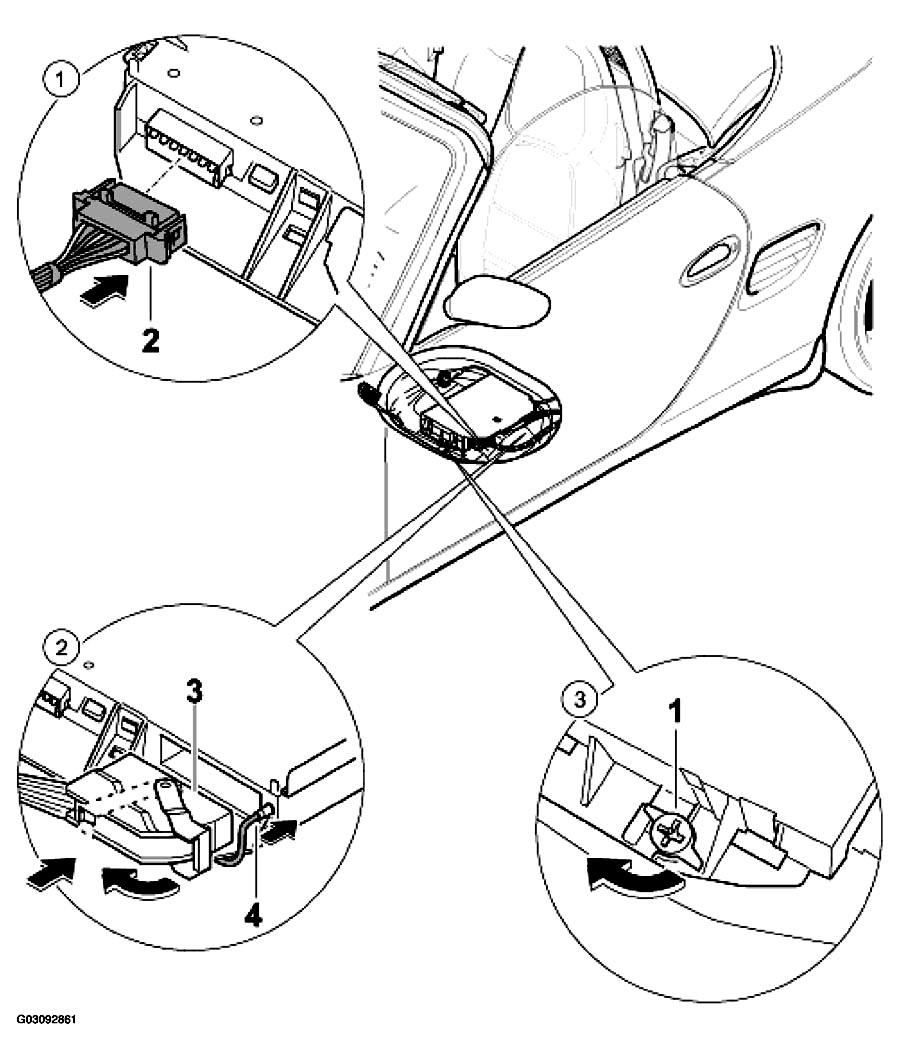

ALARM SYSTEM CONTROL UNIT INSTALLATION PROCEDURE
| No. | Procedure | Instructions | ||
|---|---|---|---|---|
| 1 | Inserting the connectors | Insert the connector -2- (1) | ||
| 2 | Inserting the connectors | Insert connector -4-3- (1) | ||
| 3 | Screwing control unit tight | Engage the control unit in the opening on the vehicle floor and close the lock -1-direction of the arrow- (1) | ||
|
||||
Installing left front seat
Refer to REMOVING AND INSTALLING FRONT SEAT, - AS OF MY 1996 .
