Removing And Installing Wiring Harness: Installation

Install in reverse order.

  1. Insert wiring harness plug with the flat point (arrow) to the ATF pan.

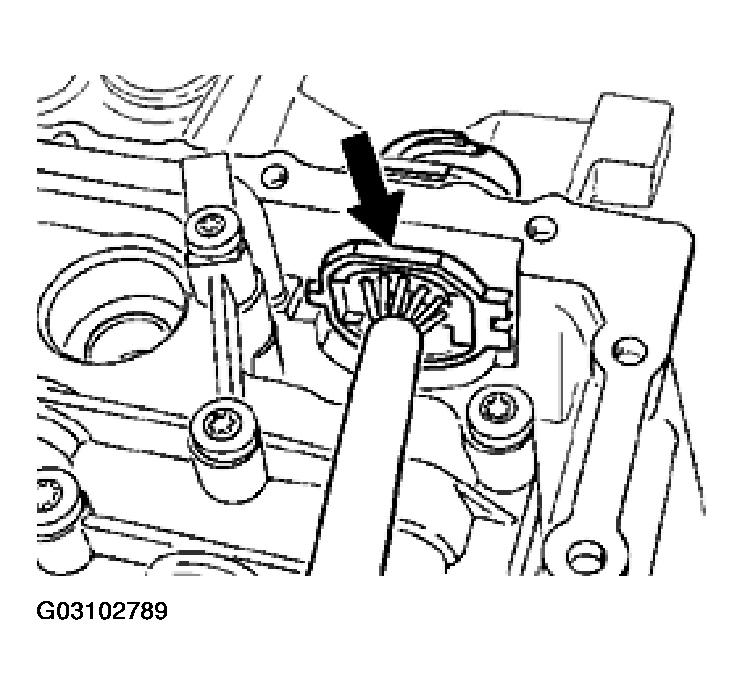

Fig 1: Inserting Wiring Harness Plug With Flat Point To ATF Pan
G03102789Courtesy of PORSCHE OF NORTH AMERICA, INC.
