Removing And Installing Sensor For Transmission Speed: Removal

1. Remove ATF pan.
2. Remove sensor.

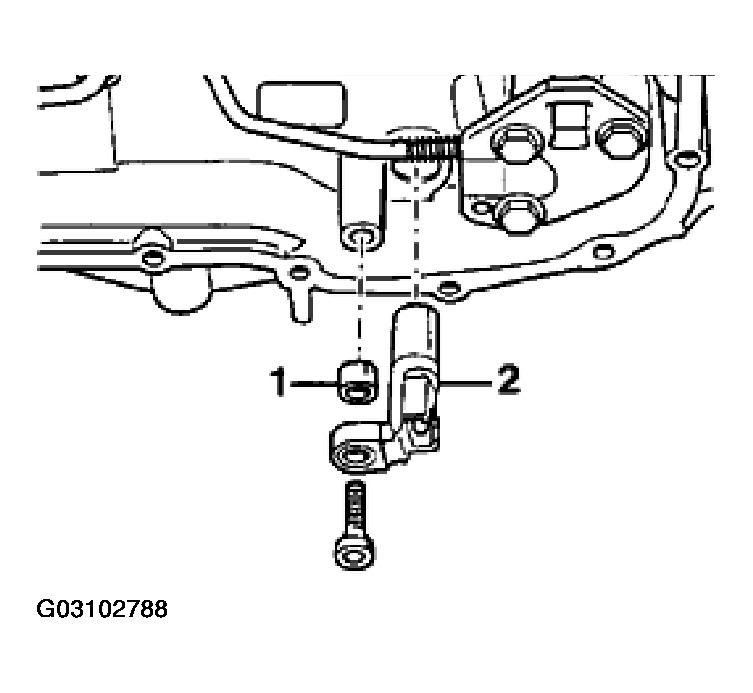

Fig 1: Removing Transmission Speed Sensor And Spacer Sleeves

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Spacer sleeve (height 8 mm)
2. Sensor
