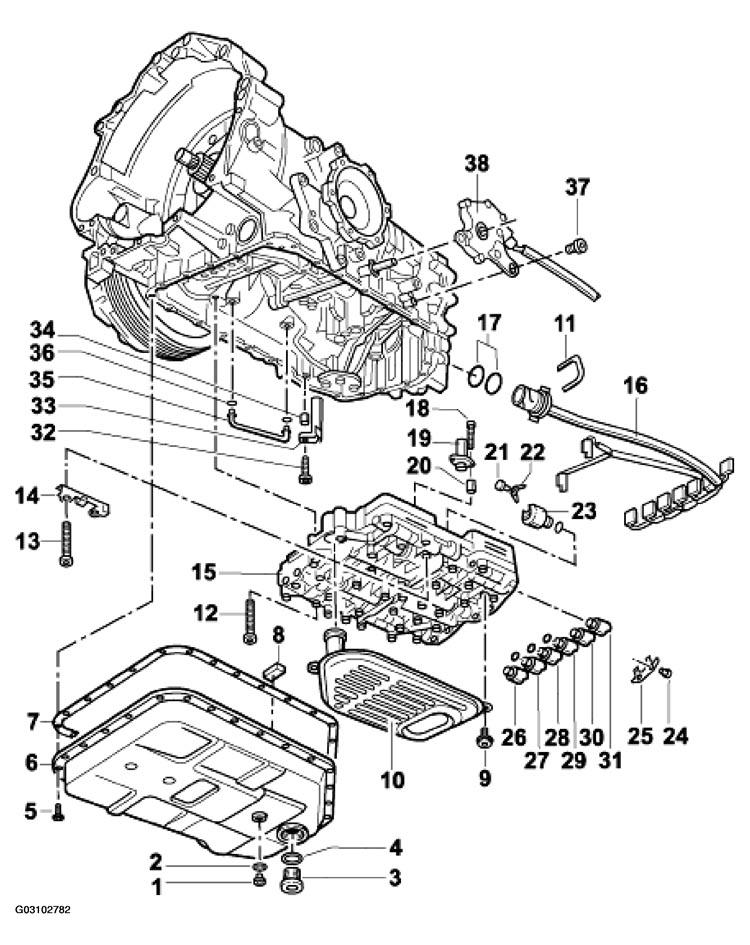

A/T GEARS AND VALVE BODY COMPONENT DESCRIPTIONS
| No. | Designation | Qty. | Removal | Installation | ||
|---|---|---|---|---|---|---|
| 1(1) | ATF screw | 1 | Tightening torque 40 Nm (30 ft.lb.) | |||
| 2(1) | Sealing ring | 1 | Always replace | |||
| 3(1) | ATF filler screw | 1 | Tightening torque 80 Nm (59 ft.lb.) | |||
| 4(1) | Toroidal sealing ring | 1 | Always replace | |||
| 5(1) | Screw | 27 | Loosen crosswire | Observe tightening sequence. See INSTALLING THE HYDRAULIC CONTROL UNIT
. Tightening torque 11 Nm (8 ft.lb.). |
||
| 6(1) | ATF pan | 1 | ||||
| 7(1) | Seal | 1 | Always replace | |||
| 8(1) | Magnet | 4 | Clean before re-installing and lay in the seam ensuring there is contact over the full area. | |||
| 9(1) | Screw | 2 | Tightening torque 6 Nm (4.5 ft.lb.) | |||
| 10(1) | ATF filter | 1 | Thinly coat gasket at suction collar with Vaseline | |||
| 11(1) | Securing clasp | 1 | Check that holding tongue engages | |||
| 12(1) | Screw | 16 | Only unscrew specified screws. See REMOVING THE HYDRAULIC CONTROL UNIT . | Observe tightening specifications. See INSTALLING THE HYDRAULIC CONTROL UNIT . | ||
| 13(1) | Screw M6 x 60 | 1 | ||||
| 14(1) | Holder for wiring harness | 1 | ||||
| 15(1) | Hydraulic control unit | 1 | Observe removal specifications. See REMOVING THE HYDRAULIC CONTROL UNIT . | |||
| 16(1) | Wiring harness | 1 | Observe removal specifications. See REMOVING AND INSTALLING WIRING HARNESS . | |||
| 17(1) | Toroidal sealing ring | 2 | Always replace and coat with Vaseline for installation | |||
| 18(1) | Screw | 1 | Tightening torque 6 Nm (4.5 ft.lb.) | |||
| 19(1) | Sensor for transmission input speed | 1 | See REMOVING AND INSTALLING SENSOR FOR TRANSMISSION INPUT SPEED . | See REMOVING AND INSTALLING SENSOR FOR TRANSMISSION INPUT SPEED . | ||
| 20(1) | Spacer sleeve (20 mm) | 1 | ||||
| 21(1) | Screw | 1 | Tightening torque 6 Nm (4.5 ft.lb.) | |||
| 22(1) | Holder | 1 | ||||
| 23(1) | Pressure regulator 1 (with toroidal sealing ring) | 1 | Thinly coat toroidal sealing ring with Vaseline | |||
| 24(1) | Screw | 4 | ||||
| 25(1) | Holder | 2 | ||||
| 26(1) | Solenoid 1 (without toroidal sealing ring) | 1 | Unscrew guide plate for parking-lock mechanism | Do not tighten screws for guide plate in selector lever position P. Tightening torque 6 Nm (4.5 ft.lb.) |
||
| 27(1) | Pressure regulator 2 (with toroidal sealing ring) | 1 | Thinly coat toroidal sealing ring with Vaseline | |||
| 28(1) | Pressure regulator 4 (with toroidal sealing ring) | 1 | Thinly coat toroidal sealing ring with Vaseline | |||
| 29(1) | Pressure regulator 3 (with toroidal sealing ring) | 1 | Thinly coat toroidal sealing ring with Vaseline | |||
| 30(1) | Solenoid 1 (without toroidal sealing ring) | 1 | ||||
| 31(1) | Solenoid 1 (without toroidal sealing ring) | 1 | ||||
| 32(1) | Screw | 1 | Tightening torque 6 Nm (4.5 ft.lb.) | |||
| 33(1) | Sensor for transmission speed | 1 | See REMOVING AND INSTALLING SENSOR FOR TRANSMISSION SPEED . | See REMOVING AND INSTALLING SENSOR FOR TRANSMISSION SPEED . | ||
| 34(1) | Spacer sleeve (8 mm) | 1 | ||||
| 35(1) | Oil tube | 1 | Always replace. See REMOVING AND INSTALLING INNER OIL TUBE . | |||
| 36(1) | Toroidal sealing ring | 2 | Always replace and thinly coat with Vaseline | |||
| 37(1) | Screw | 2 | Tightening torque 8 Nm (6 ft.lb.) | |||
| 38(1) | Multifunction switch | 1 | See REMOVING AND INSTALLING DEFLECTION LEVER . | See REMOVING AND INSTALLING DEFLECTION LEVER . | ||
|
||||||
