Removing And Installing ATF Cooler: Removal

1. Remove rear underside panel (only for transmission type A86/05).
2. Clamp shut coolant hoses (flow and return sides) with special tool 3094.

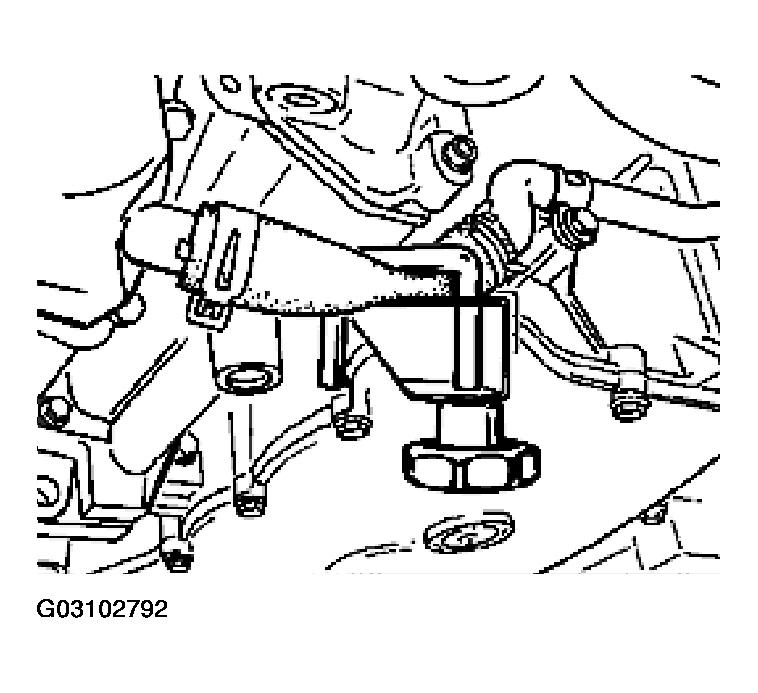

   Fig 1: Clamping Shut Coolant Hose (1 Of 2)

   Courtesy of PORSCHE OF NORTH AMERICA, INC.

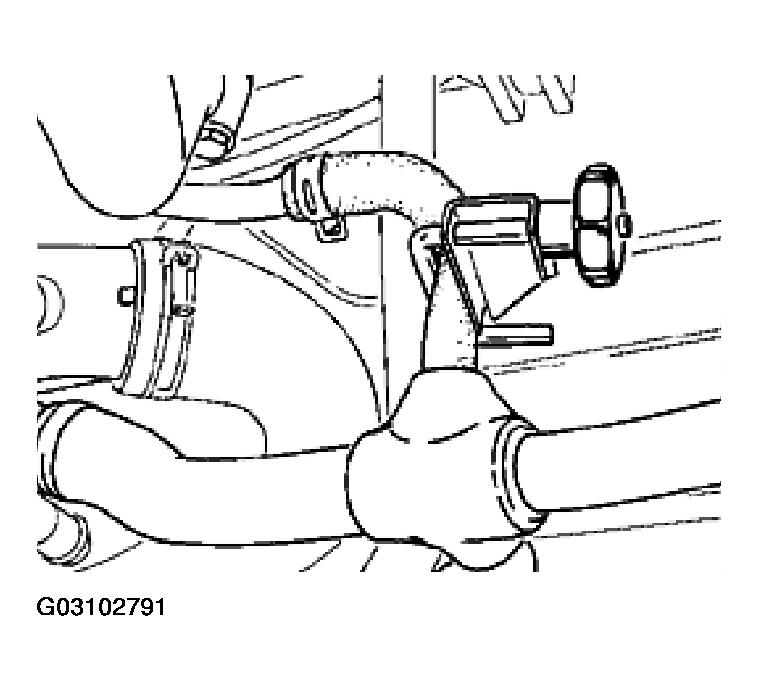

   Fig 2: Clamping Shut Coolant Hose (2 Of 2)

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
3. Remove catalytic converter on the right.
4. Place oil collection pan under the transmission.
5. Unscrew the fastening screws for the ATF cooler with a Torx T30 (3/8 inch) screwdriver insert.

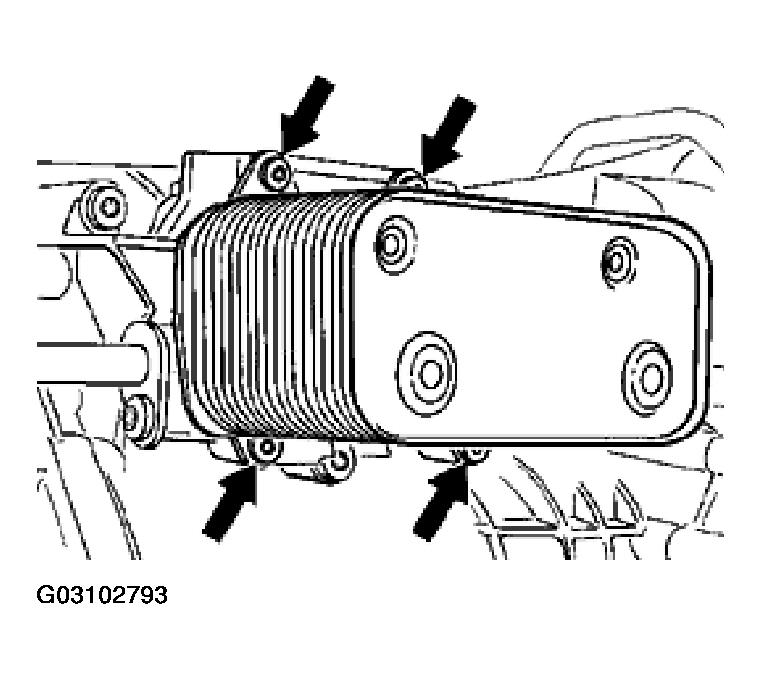

Fig 3: Removing ATF Cooler Fastening Screws

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

• If necessary, use a mirror when unscrewing the top two screws.
