Removing And Installing SHIFTLOCK Solenoid: Removal

  1. Remove center console. See REMOVING AND INSTALLING CENTRE CONSOLE .
  2. Removing and installing selector support. See REMOVING AND INSTALLING SELECTOR SUPPORT  .
  3. Remove cover plate on selector lever support.

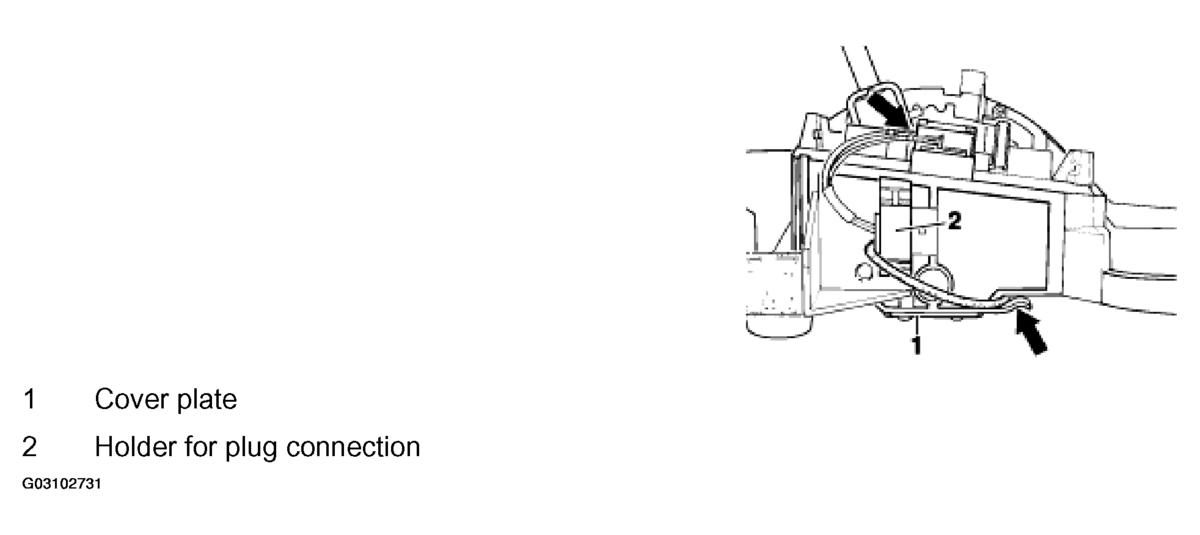

    Fig 1: Removing Cover Plate On Selector Lever Support
    G03102731Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Pull off cable on manual switch, unclip holder for plug connection and remove cable from the cable guides.
  5. Pull solenoid holding clip only far enough away to permit the solenoid can be removed. Do not overstretch the holding clip.

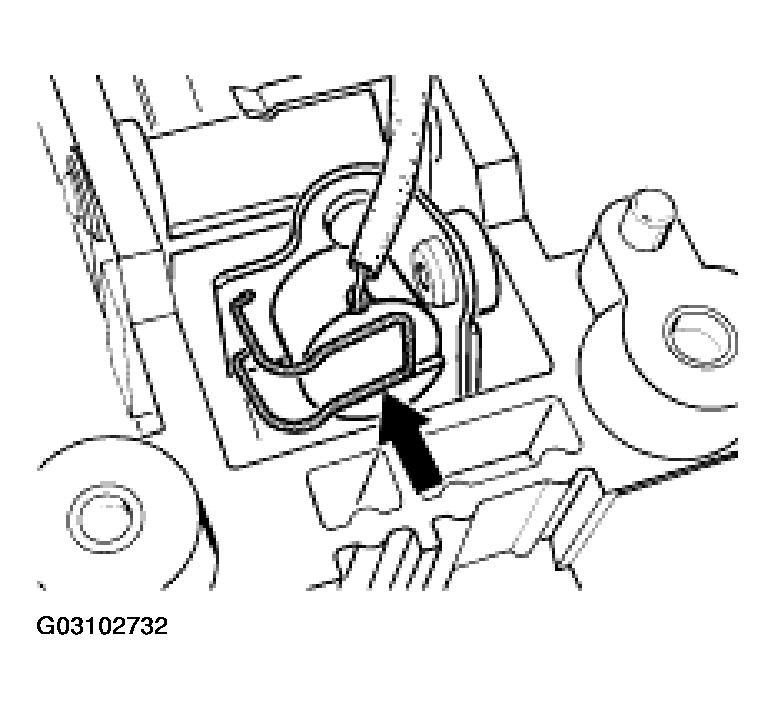

    Fig 2: Pulling Solenoid Holding Clip
    G03102732Courtesy of PORSCHE OF NORTH AMERICA, INC.
