Tiptronic connector assignment

  1. 1 - Pressure regulator 2
  2. 2 - Shiftlock solenoid
  3. 3 - Free
  4. 4 - Pressure regulator 4
  5. 5 - Pressure regulator 1
  6. 6 - Power ground
  7. 7 - Free
  8. 8 - Multi-function switch, line 2
  9. 9 - Multi-function switch, line 4
  10. 10 - Brake light
  11. 11 - Free
  12. 12 - Pin code 1
  13. 13 - Manual program switch
  14. 14 - Output shaft speed (-)
  15. 15 - Shield, output shaft speed
  16. 16 - Turbine speed (+)
  17. 17 - Free
  18. 18 - Kick-down
  19. 19 - TC active
  20. 20 - Free
  21. 21 - Sensor ground
  22. 22 - ATF temperature
  23. 23 - Shield, turbine speed
  24. 24 - Free
  25. 25 - Display, manual mode
  26. 26 - Terminal 30
  27. 27 - Cruise control
  28. 28 - Electronics ground
  29. 29 - Pressure regulator 3
  30. 30 - Solenoid valve 1
  31. 31 - Free
  32. 32 - Solenoid valve 3
  33. 33 - Solenoid valve 2
  34. 34 - Power ground
  35. 35 - Free
  36. 36 - Multi-function switch, line 1
  37. 37 - Multi-function switch, line 3
  38. 38 - Front-wheel speed, left
  39. 39 - Front-wheel speed, right
  40. 40 - Free
  41. 41 - Free
  42. 42 - Output shaft speed (+)
  43. 43 - Free
  44. 44 - Ground, turbine speed
  45. 45 - Free
  46. 46 - Upshift
  47. 47 - Downshift
  48. 48 - Pin code 2
  49. 49 - Free
  50. 50 - Free
  51. 51 - Coolant shutoff valve
  52. 52 - Plus - pressure regulator, solenoid valves
  53. 53 - Plus - pressure regulator, solenoid valves, shiftlock
  54. 54 - Terminal 15
  55. 55 - Terminal 15
  56. 56 ... 84 - Free
  57. 85 - CAN - low
  58. 86 - CAN - high
  59. 87 - Free
  60. 88 - K-line

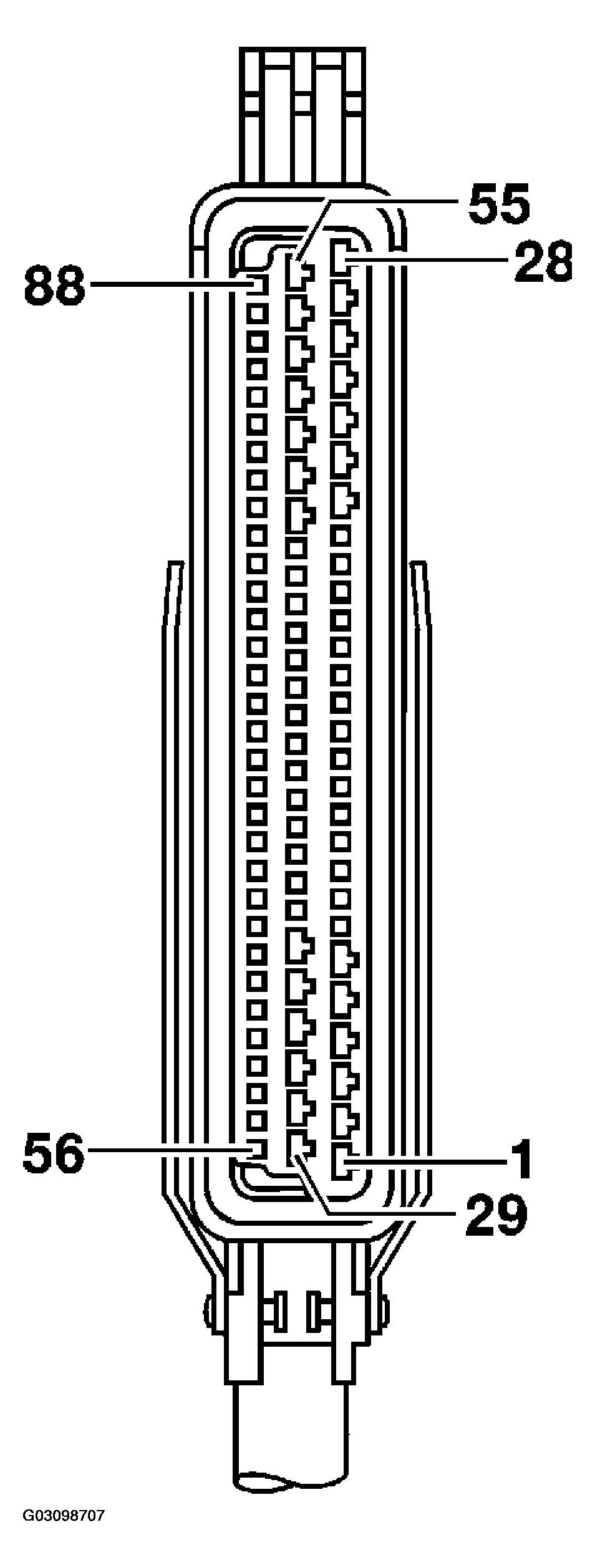

    Fig 1: Identifying Terminals Of Triptonic Harness Connector
    G03098707Courtesy of PORSCHE OF NORTH AMERICA, INC.
