Adjusting caster

The caster is not adjustable on standard vehicles. In the event of repairs, a caster adjustment facility can be installed if necessary. See INSTALLING CASTER ECCENTRIC .

On vehicles with a caster adjustment facility, adjust the caster by turning the special screw (A) with the fastening nut (C) loosened. See Fig 1 . Then tighten the fastening nut (C) to 160 Nm (118 ftlb.).

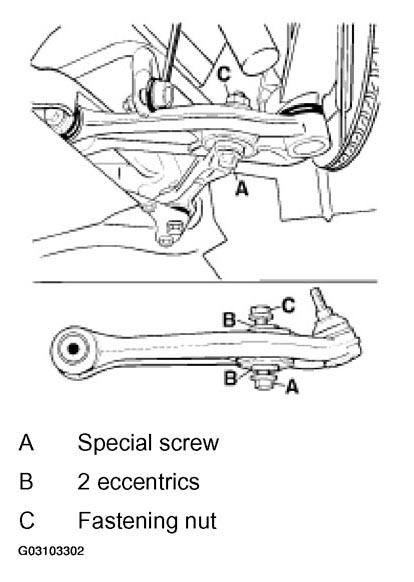

Fig 1: Adjusting Caster - Front Axle

Courtesy of PORSCHE OF NORTH AMERICA, INC.
