Removing Hydraulic Pump: Notes

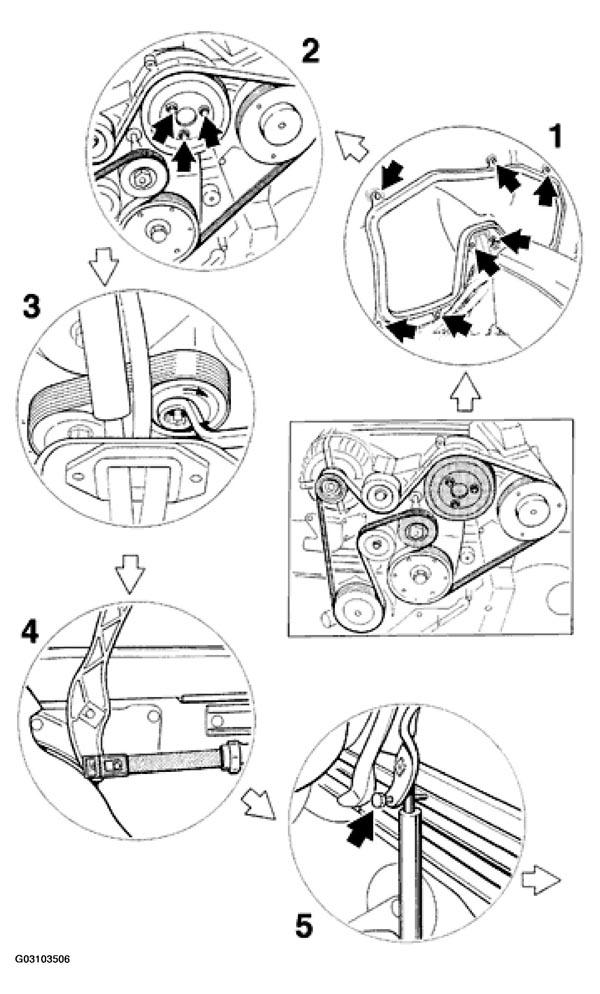

Fig 1: Identifying Hydraulic (Power Steering) Pump Removal Steps (1 Of 2)
G03103506Courtesy of PORSCHE OF NORTH AMERICA, INC.

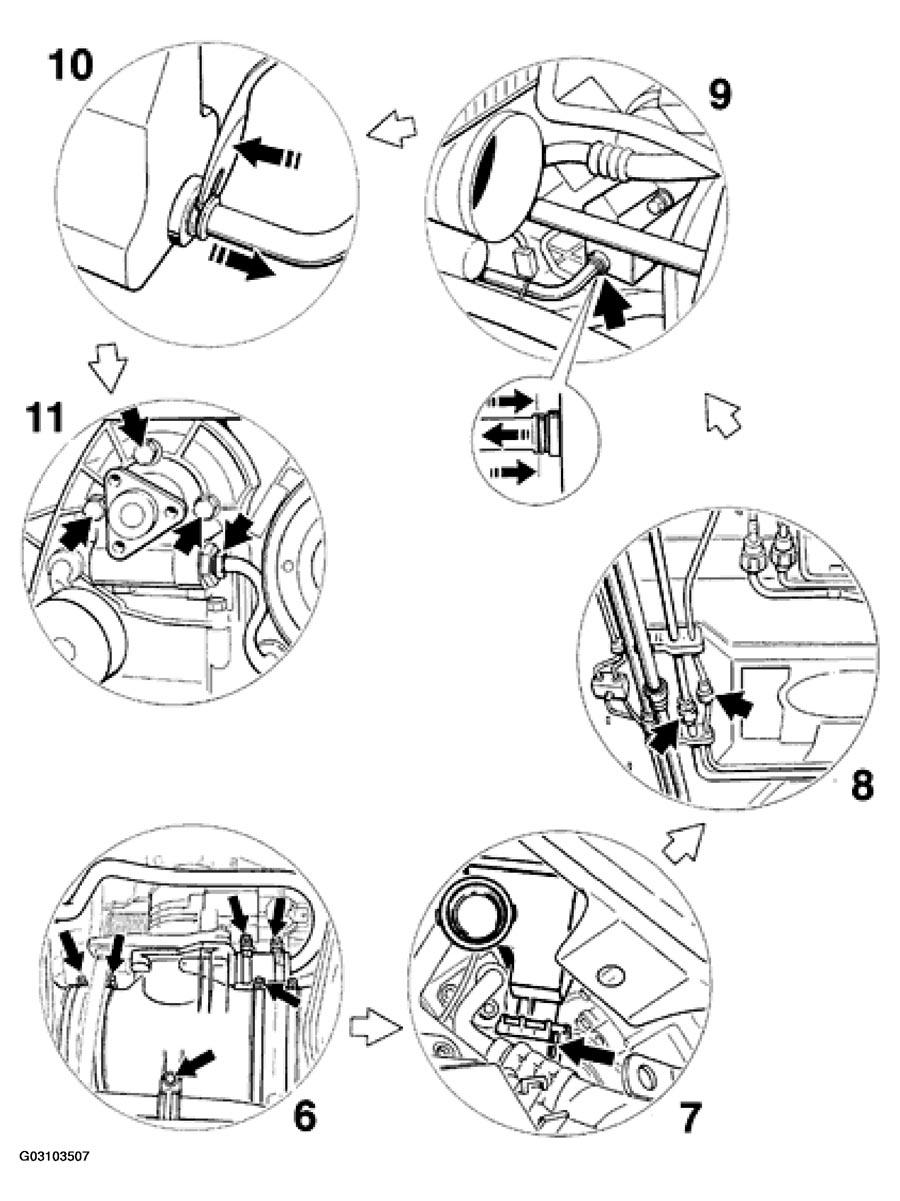

Fig 2: Identifying Hydraulic (Power Steering) Pump Removal Steps (2 Of 2)
G03103507Courtesy of PORSCHE OF NORTH AMERICA, INC.
