Driver's side

Connect the ignition device 9257 with the adapter cable 9567 directly to the 2-pin plug of the driver's airbag contact unit (under the steering column).

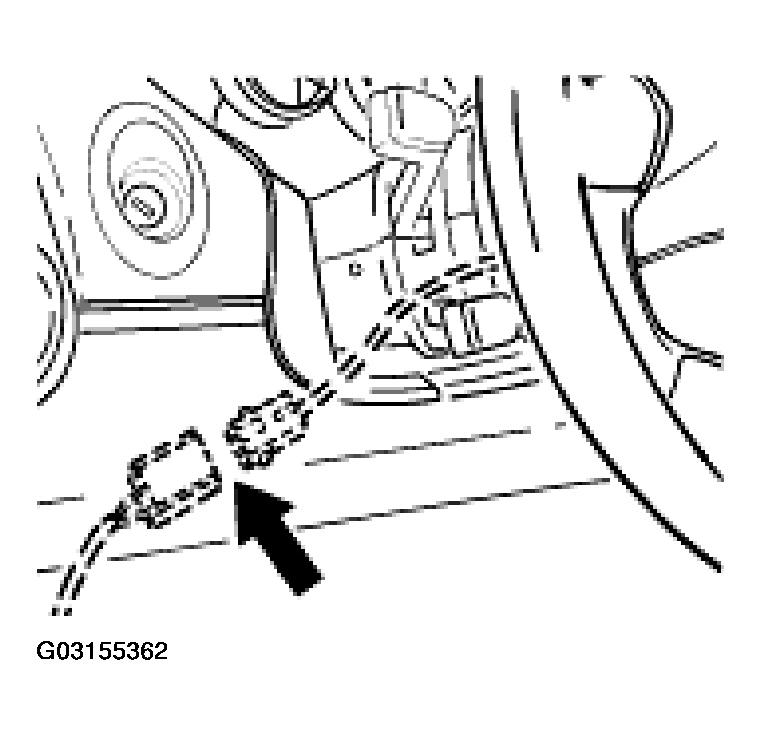

Fig 1: Connecting Ignition Tool (Driver Side)
G03155362Courtesy of PORSCHE OF NORTH AMERICA, INC.
