Fitting The Piston Pin CIRCLIP (GROUP 1, NO. 1/00)
Publication date: 2002-02-28Reference number: GROUP 1, NO. 1/00
FITTING THE PISTON PIN CIRCLIP
TECHNICAL SERVICE BULLETIN
Reference Number(s): GROUP 1, NO. 1/00, Date of Issue:
February 28, 2002
| PORSCHE: | 2000-on Boxster 2.7 / Boxster S |
| GROUP: | 1 - Engine |
DESCRIPTION

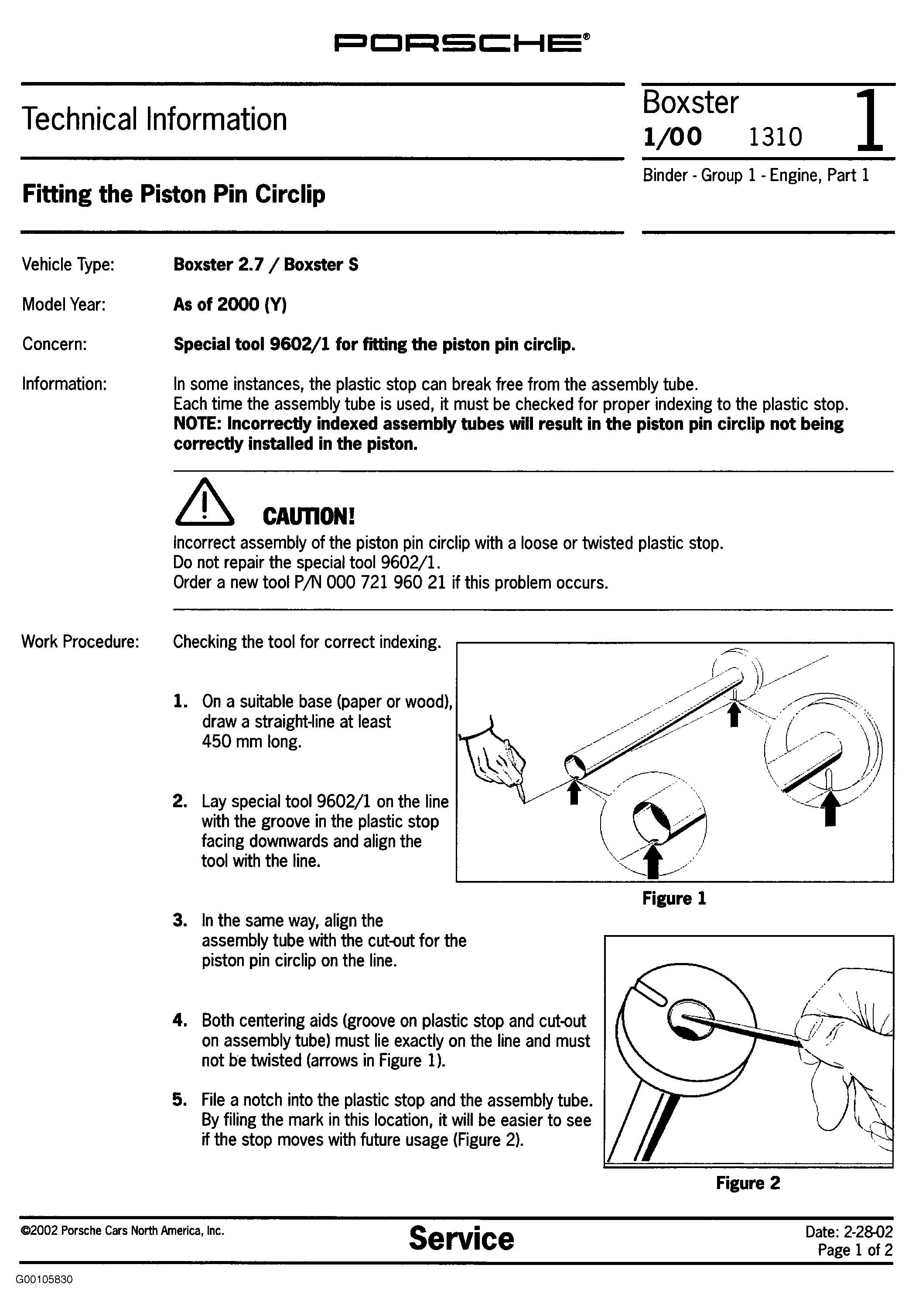

Fitting the Piston Pin Circlip
In some instances, the plastic stop can break free from the assembly tube. Each time the assembly tube is used, it must be checked for proper indexing to the plastic stop.
