New Design Oil Filler Hose (GROUP 1, NO. 9/00)

Publication date: 2000-12-22
Reference number: GROUP 1, NO. 9/00

NEW DESIGN OIL FILLER HOSE

TECHNICAL SERVICE BULLETIN

Reference Number(s): 9/00, Date of Issue: December 22, 2000

PORSCHE:	1997-2000 Boxster/Boxster S
GROUP:	Engine

New Design Oil Filler Hose

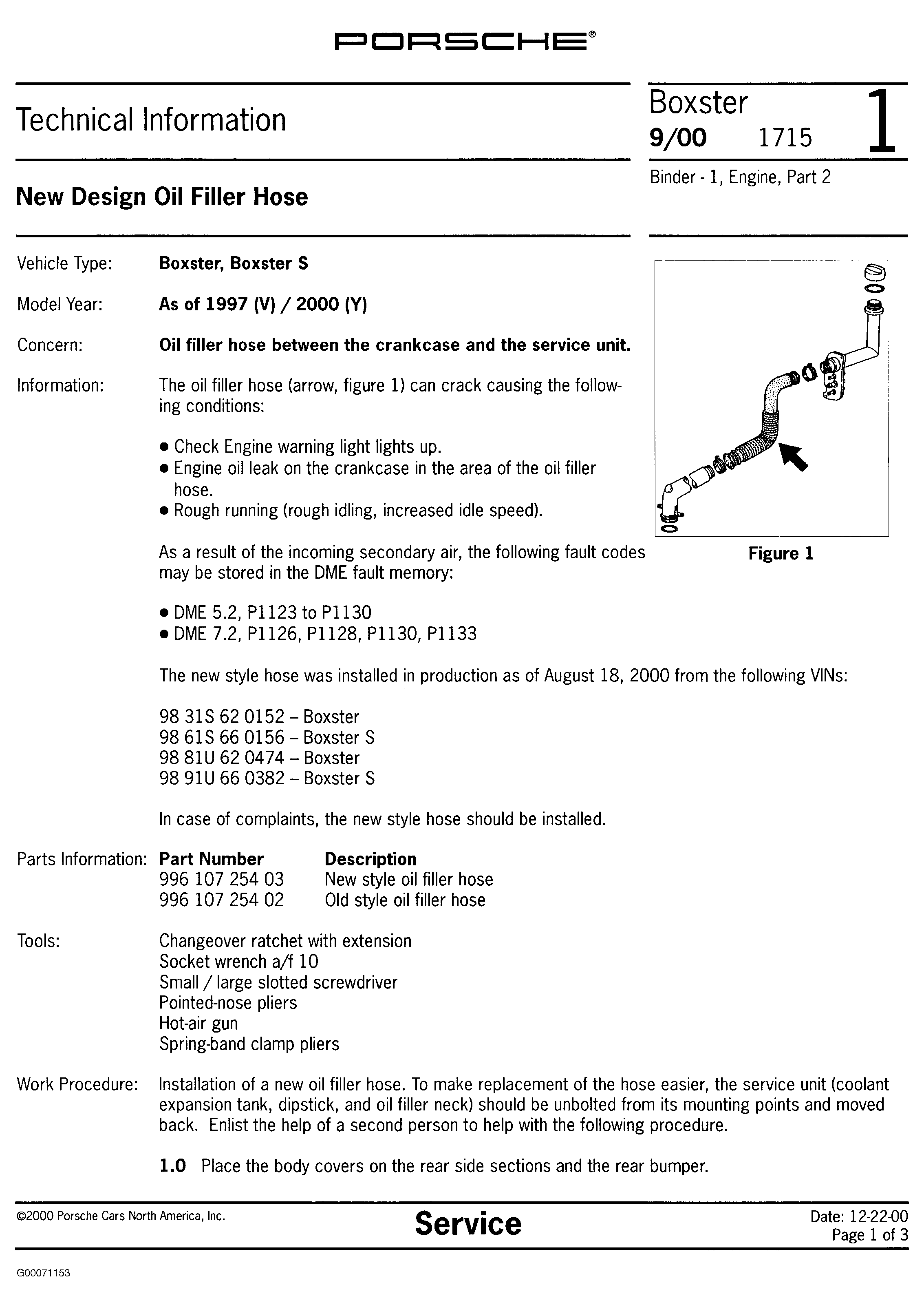

Fig 1: Page 1 of Bulletin

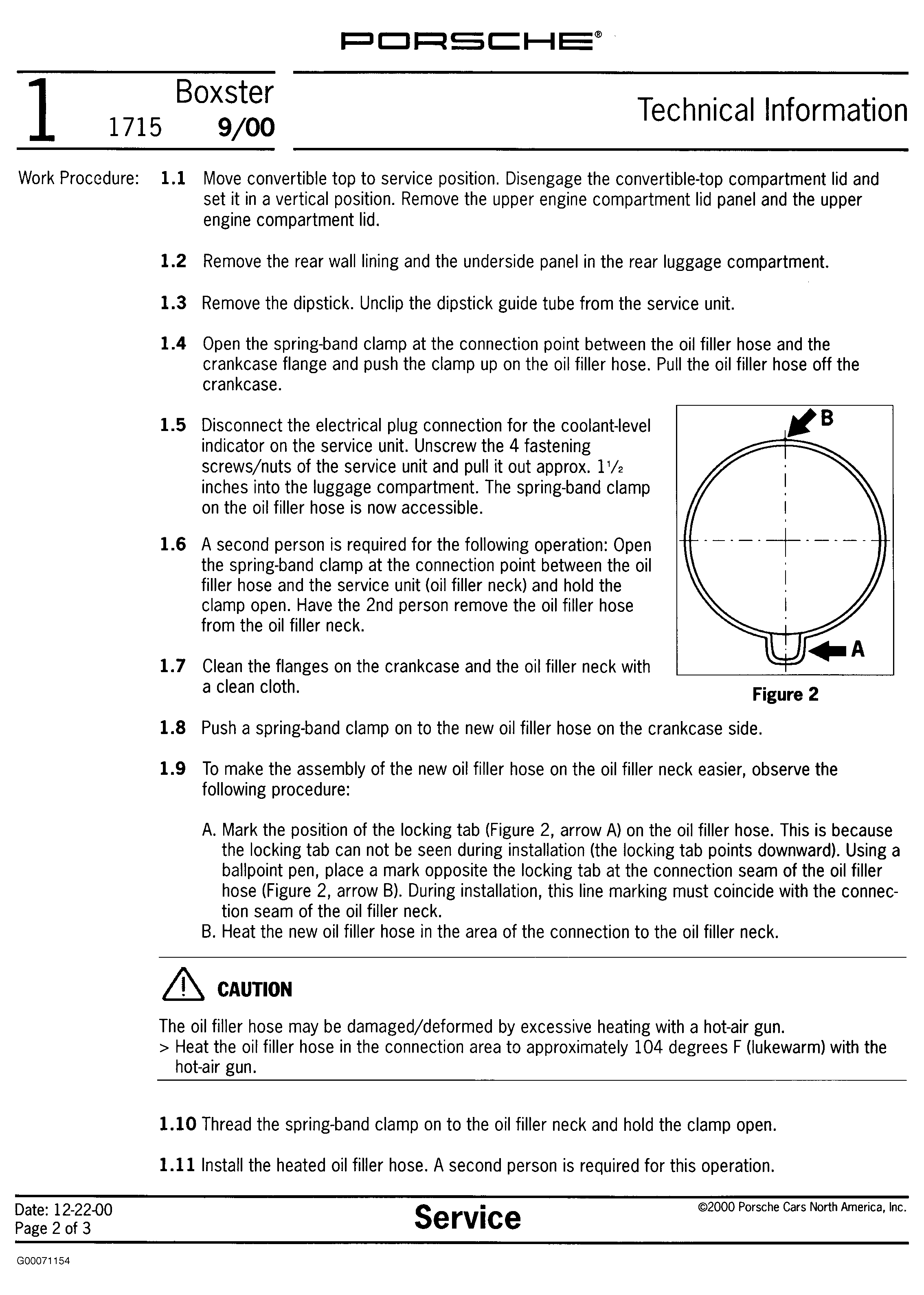

Fig 2: Page 2 of Bulletin

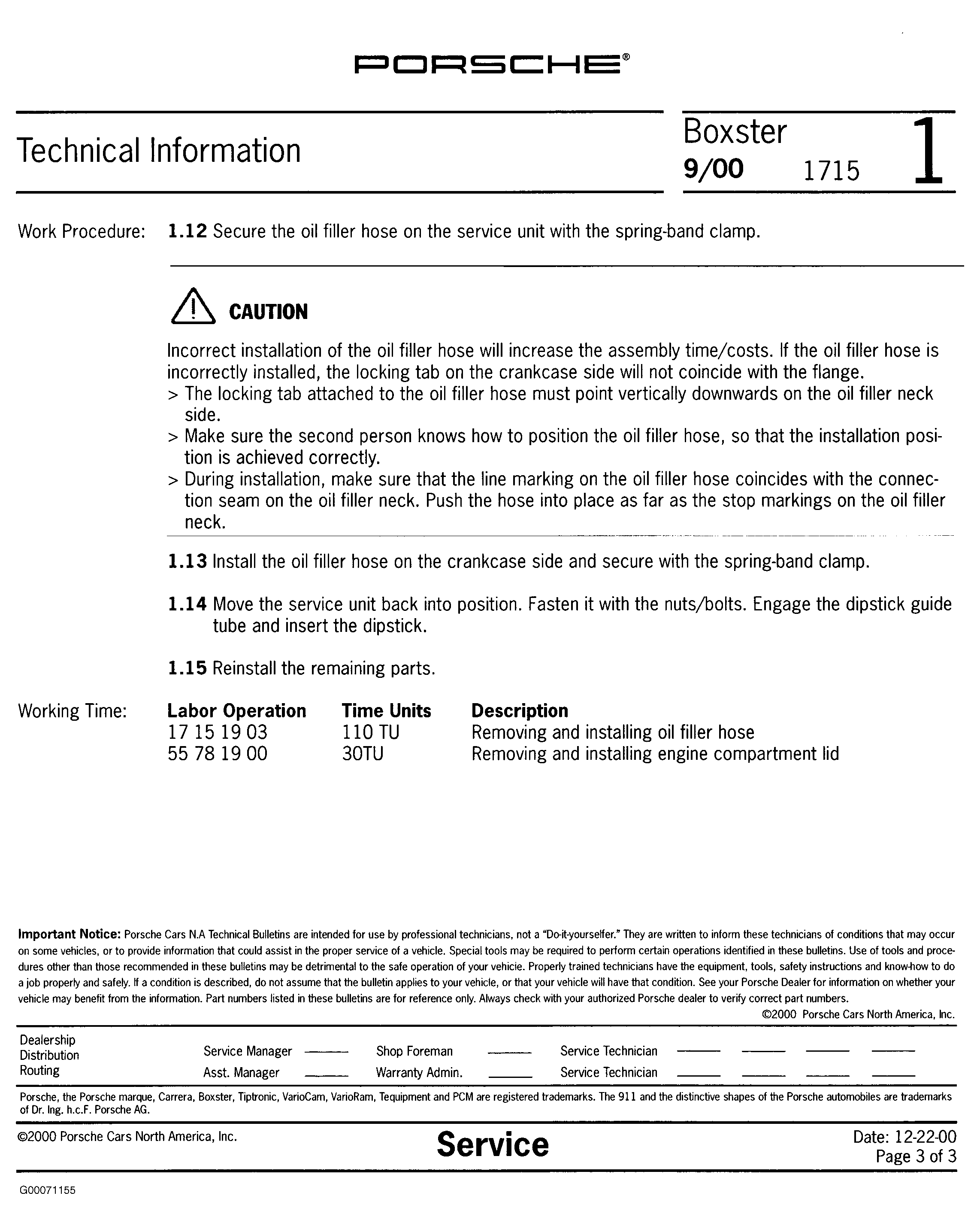

Fig 3: Page 3 of Bulletin
