Fog Light Adjustment

NOTE:

Make the adjustment with the vehicle ready for driving (fuel tank full, driver's seat occupied by a person or 75 kg, the tire pressure must correspond to the stipulated values) using a headlight adjustment unit.

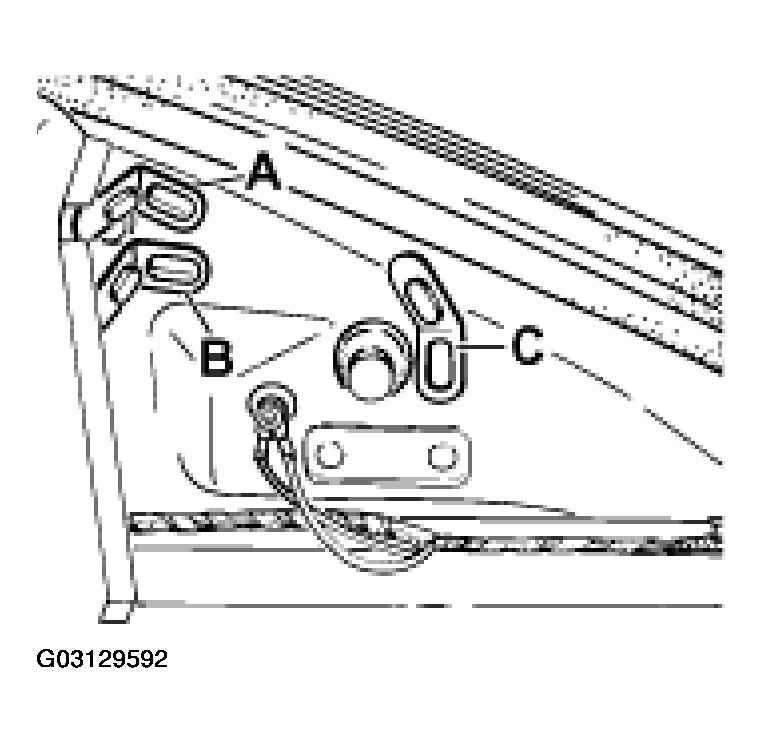

Fig 1: Identifying Fog Light Adjustment Screw
Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: Switched-on headlights must not be covered by a front apron or film!
