Water drainage

  1. Water drainage: Drip tray

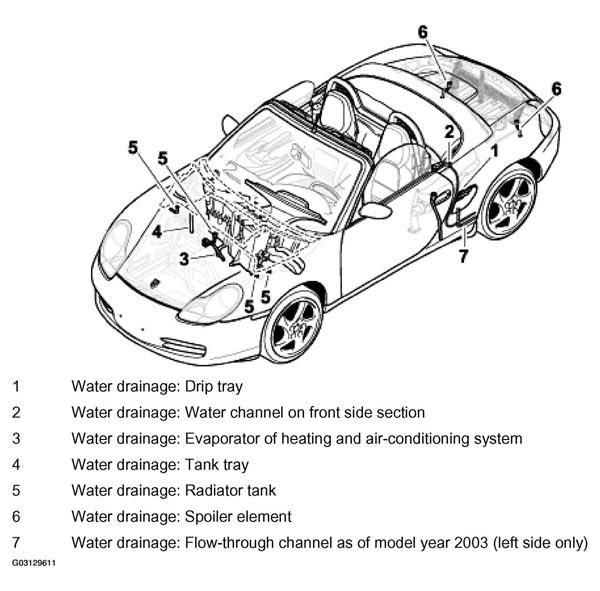

    Fig 1: Identifying Water Drainage
    G03129611Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Water drainage: Water channel on front side section
  3. Water drainage: Evaporator of heating and air-conditioning system
  4. Water drainage: Tank tray
  5. Water drainage: Radiator tank
  6. Water drainage: Spoiler element
  7. Water drainage: Flow-through channel as of model year 2003 (left side only)
