Instructions For Disassembly And Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the outer race for the small tapered roller bearing using special tools VW 771, VW 771/15 and a commercially available threaded adapter (M10/M8).

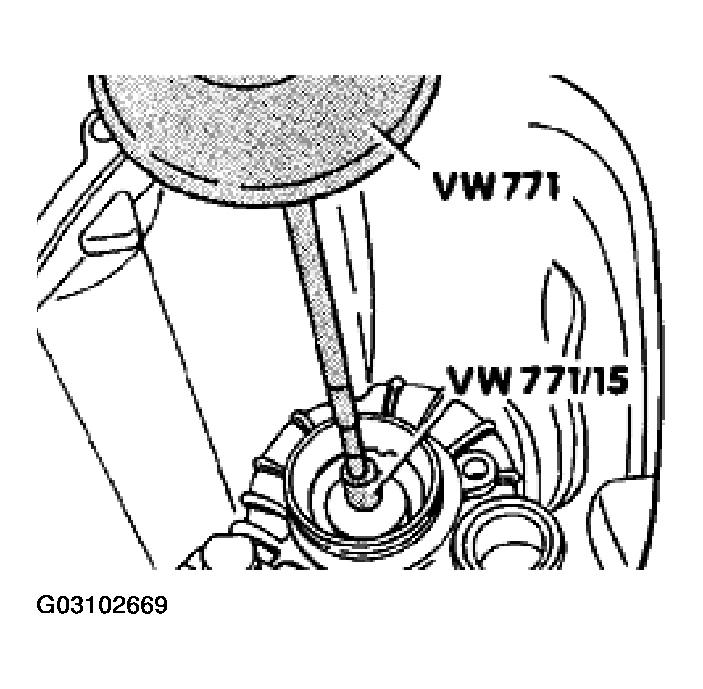

    Fig 1: Removing Outer Race For Small Tapered Roller Bearing Using Special Tools
    G03102669Courtesy of PORSCHE OF NORTH AMERICA, INC.
