Diagnosis Procedure: Notes

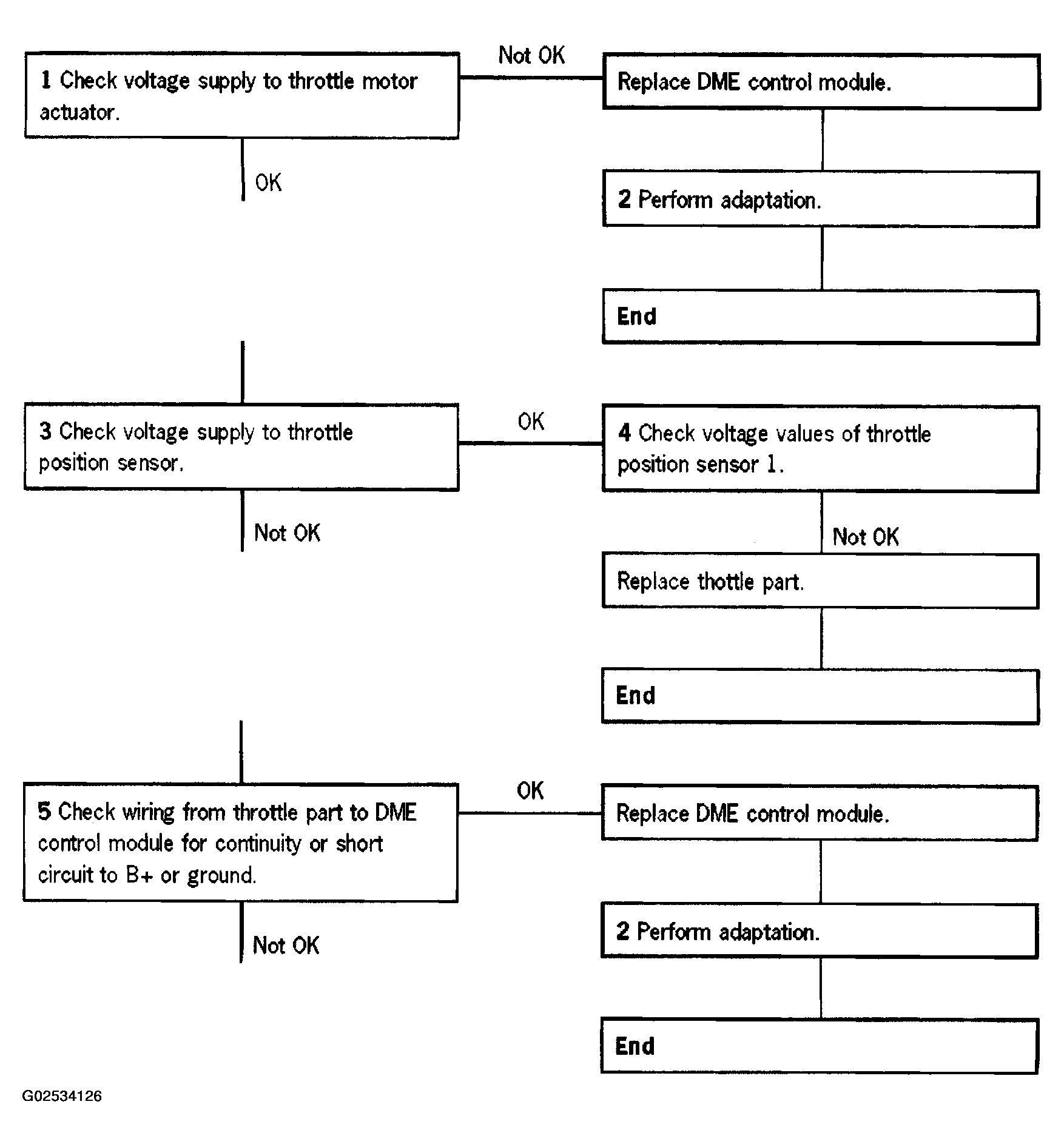

Fig 1: DTC P1121 Diagnostic Procedure (1 Of 2)
G02534126Courtesy of PORSCHE OF NORTH AMERICA, INC.

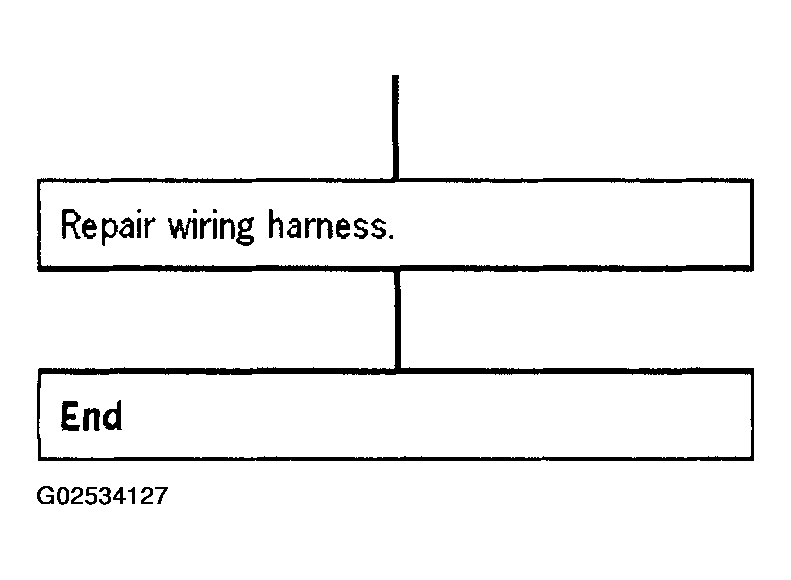

Fig 2: DTC P1121 Diagnostic Procedure (2 Of 2)
G02534127Courtesy of PORSCHE OF NORTH AMERICA, INC.
