DME 7.2 - 911 CARRERA & BOXSTER
>>
DTC P0198: Oil Temperature Sensor - Above Limit
>>
Diagnosis Procedure
>>
Notes
Diagnosis Procedure: Notes

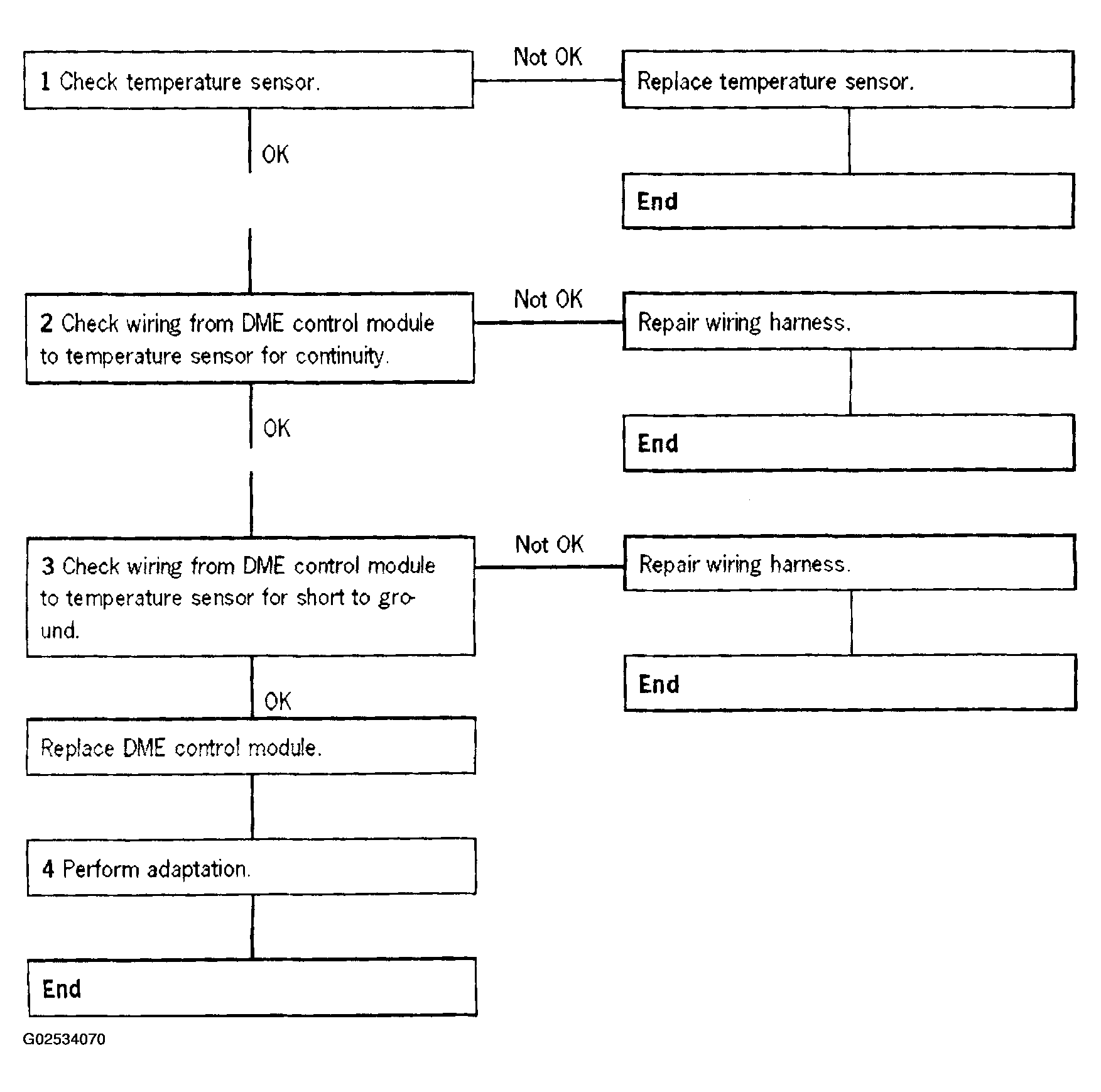

Fig 1: DTC P0197 Diagnostic Procedure
Courtesy of PORSCHE OF NORTH AMERICA, INC.

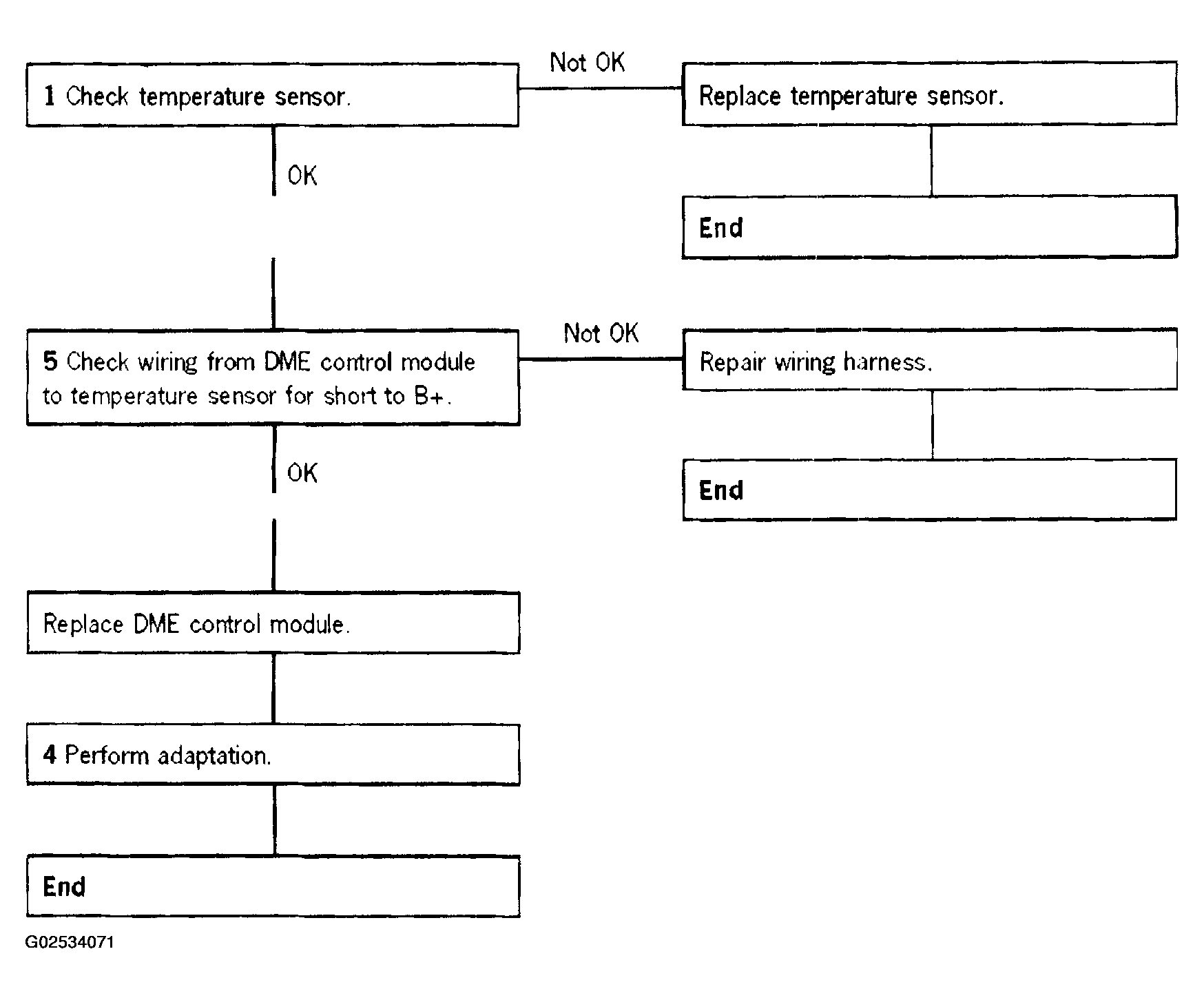

Fig 2: DTC P0198 Diagnostic Procedure
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
