DME 7.2 - 911 CARRERA & BOXSTER
>>
DTC P0118: Engine Temperature - Above Limit
>>
Diagnosis Procedure
>>
Notes
Diagnosis Procedure: Notes

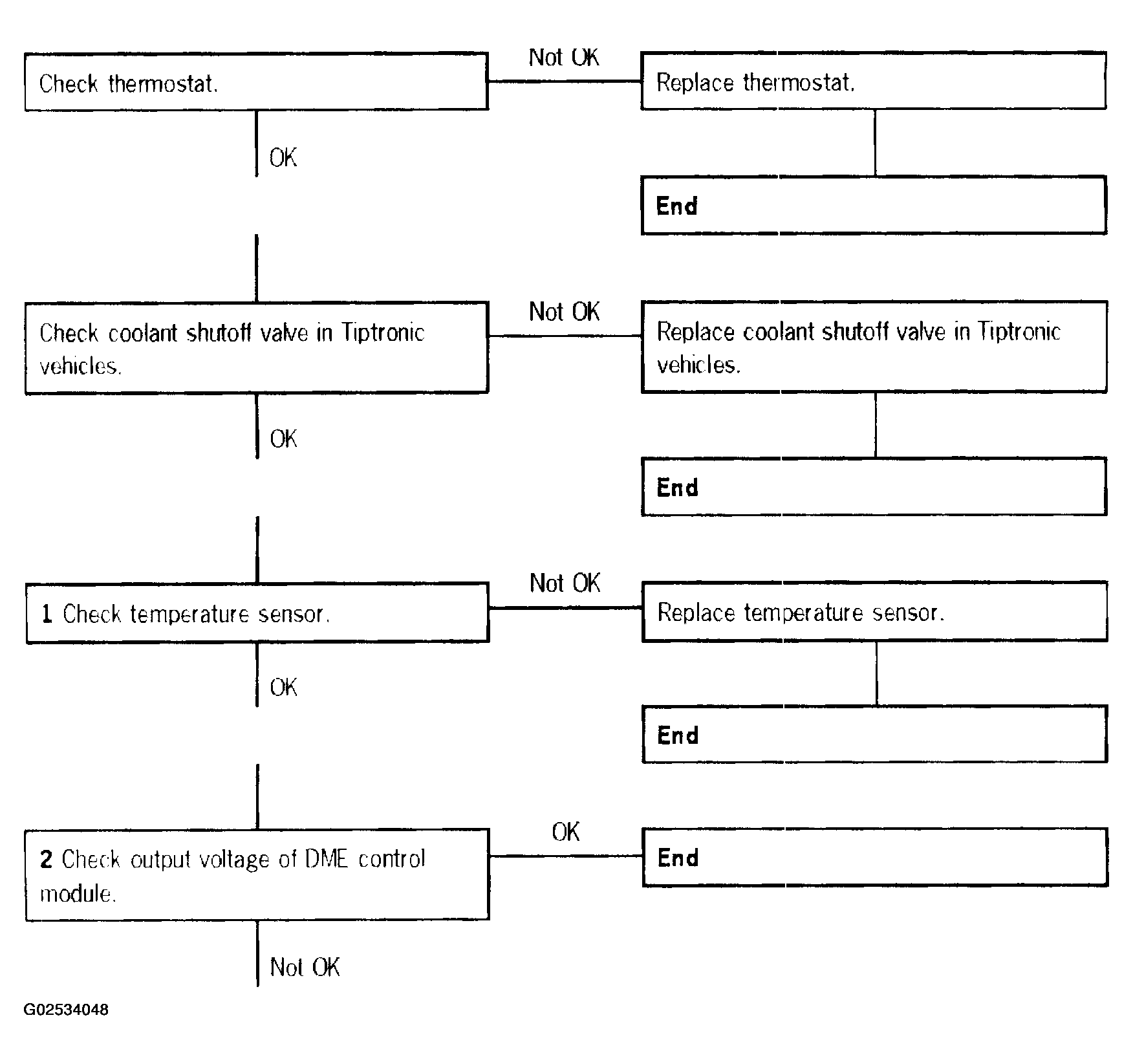

Fig 1: DTC P0115 Diagnostic Procedure (1 Of 2)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

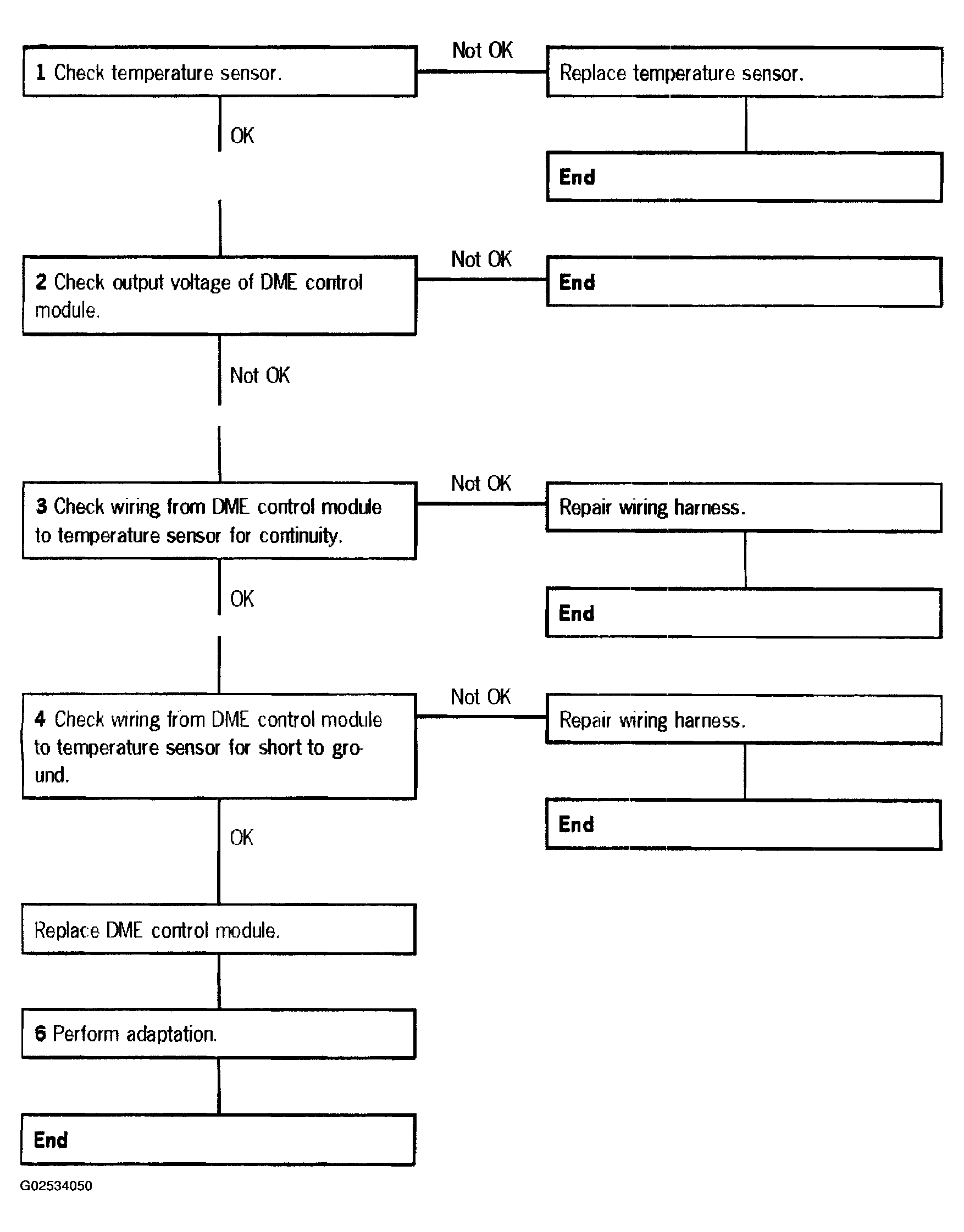

Fig 2: DTC P0115 Diagnostic Procedure (2 Of 2)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

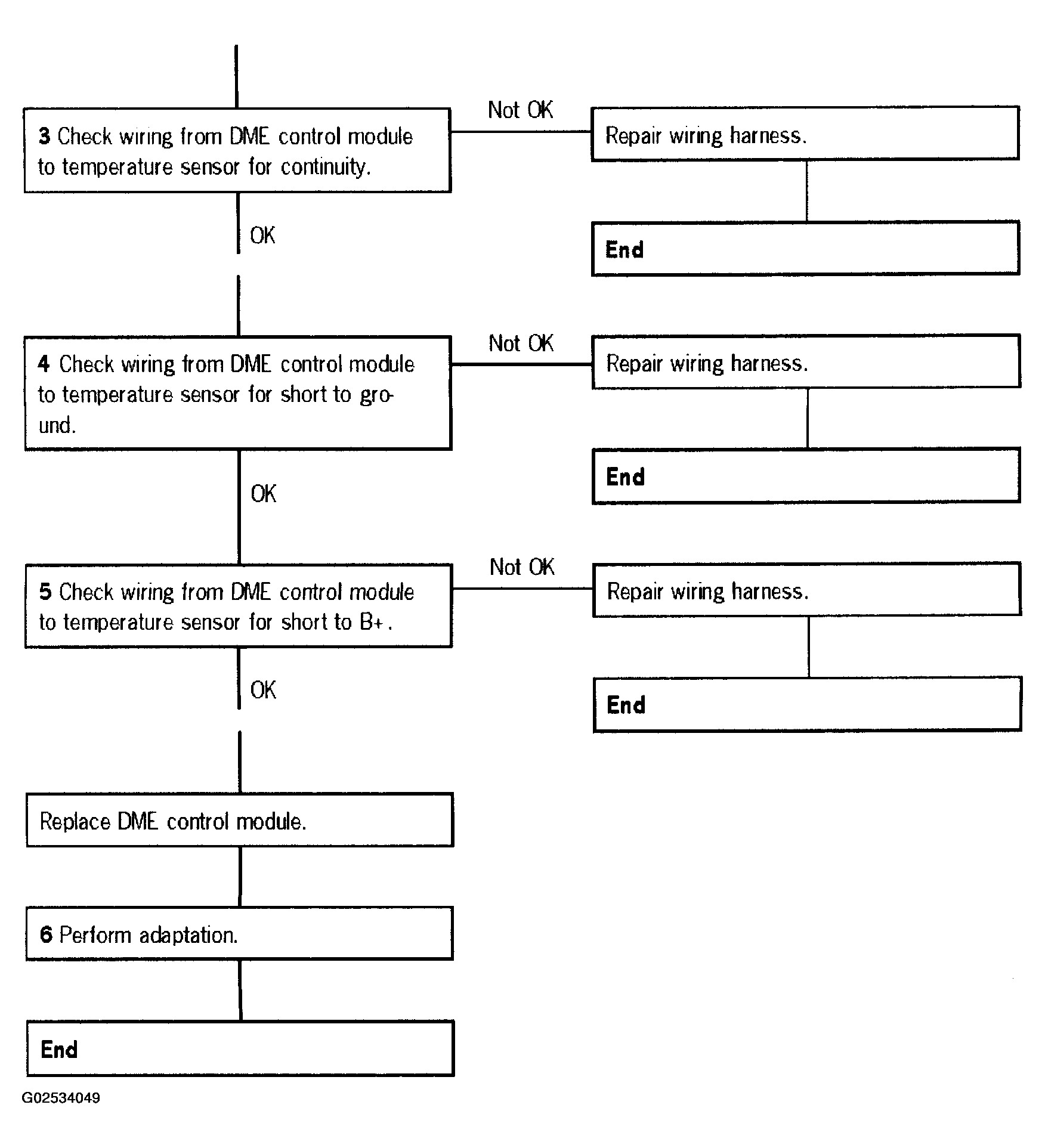

Fig 3: DTC P0117 Diagnostic Procedure
Courtesy of PORSCHE OF NORTH AMERICA, INC.

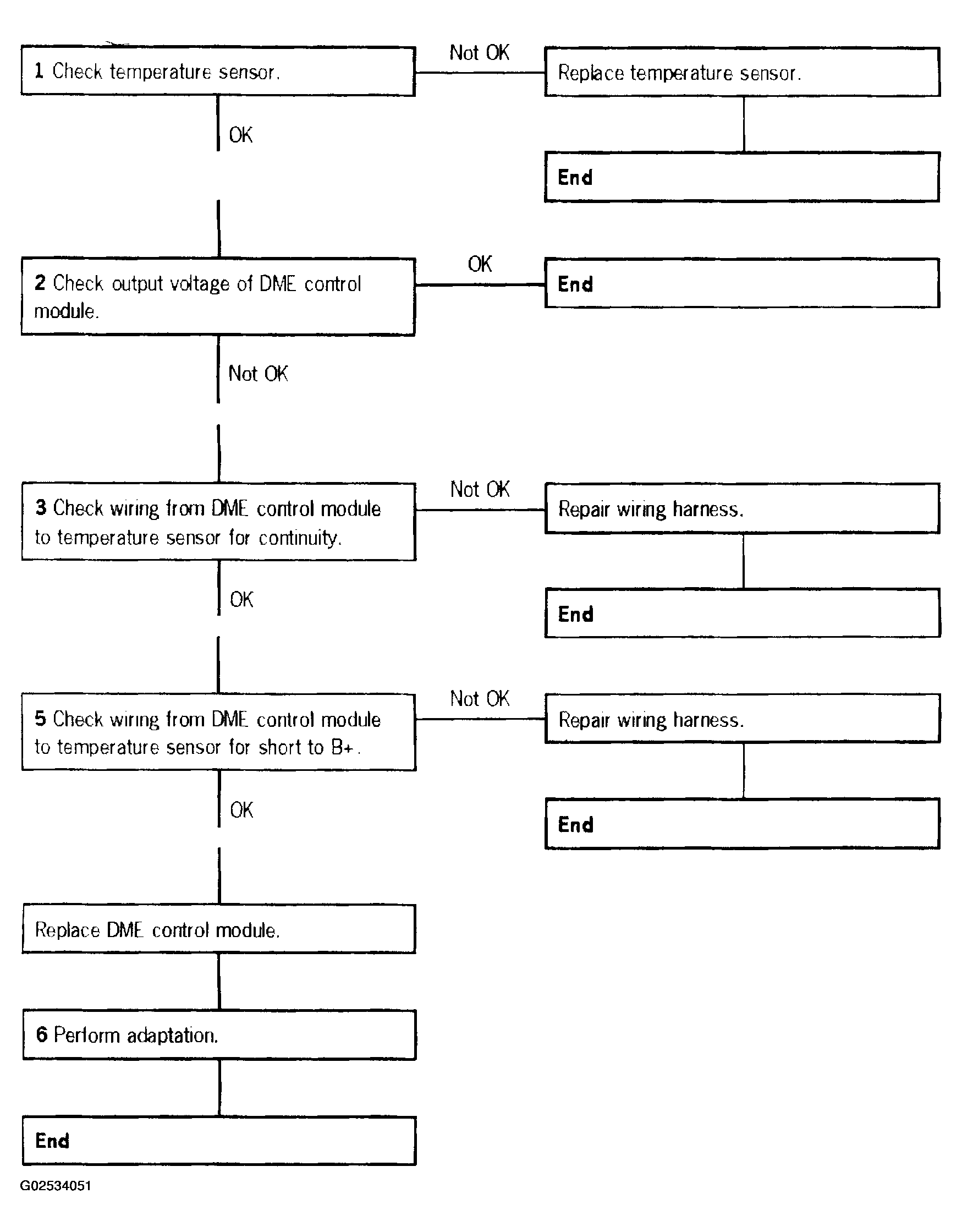

Fig 4: DTC P0118 Diagnostic Procedure
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
