DME 7.2 - 911 CARRERA & BOXSTER
>>
Components on the Engine
Components on the Engine

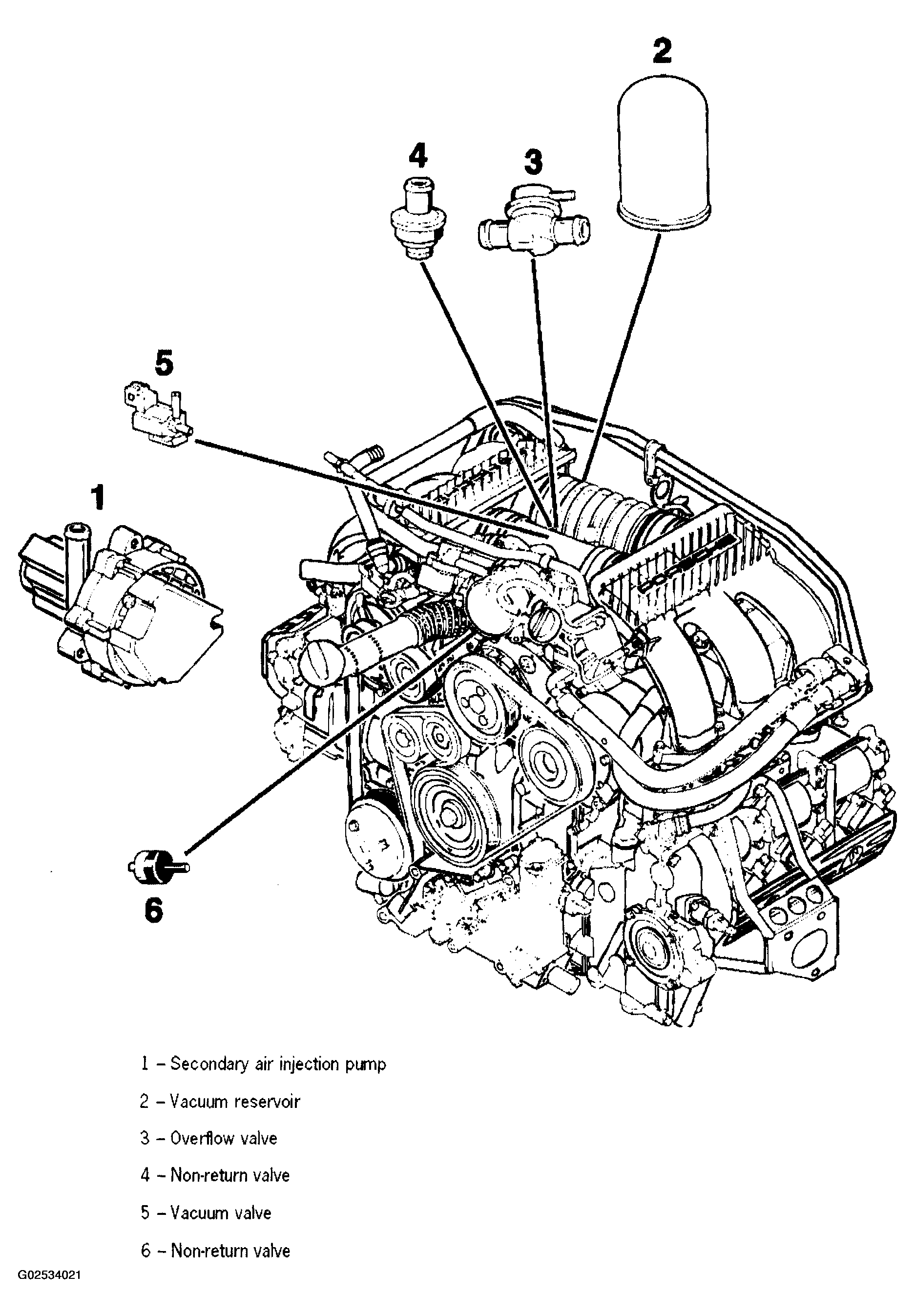

Fig 1: Identifying Components On Engine (1 Of 3)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

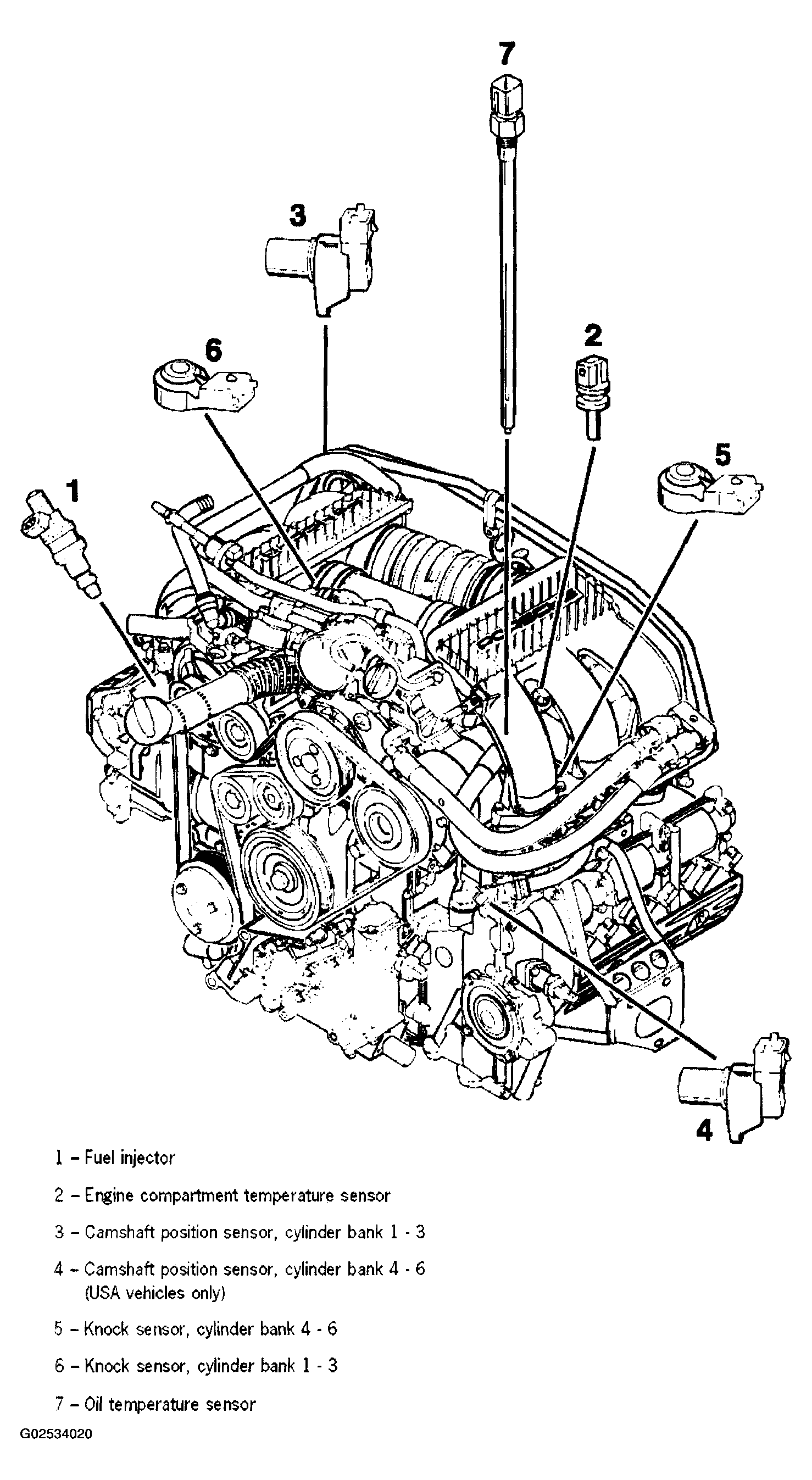

Fig 2: Identifying Components On Engine (2 Of 3)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

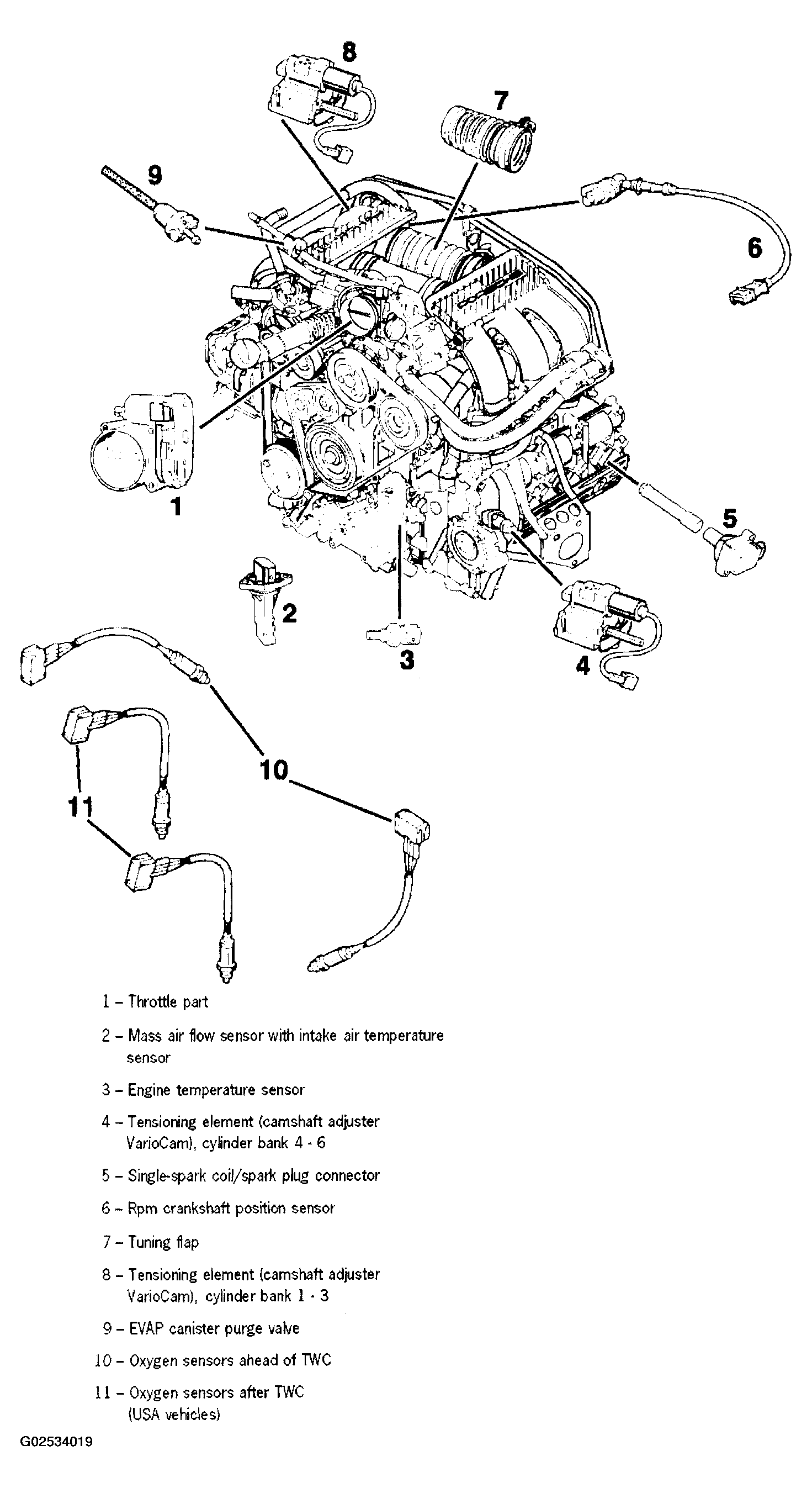

Fig 3: Identifying Components On Engine (3 Of 3)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
