Removing And Installing Trims Units With PSM

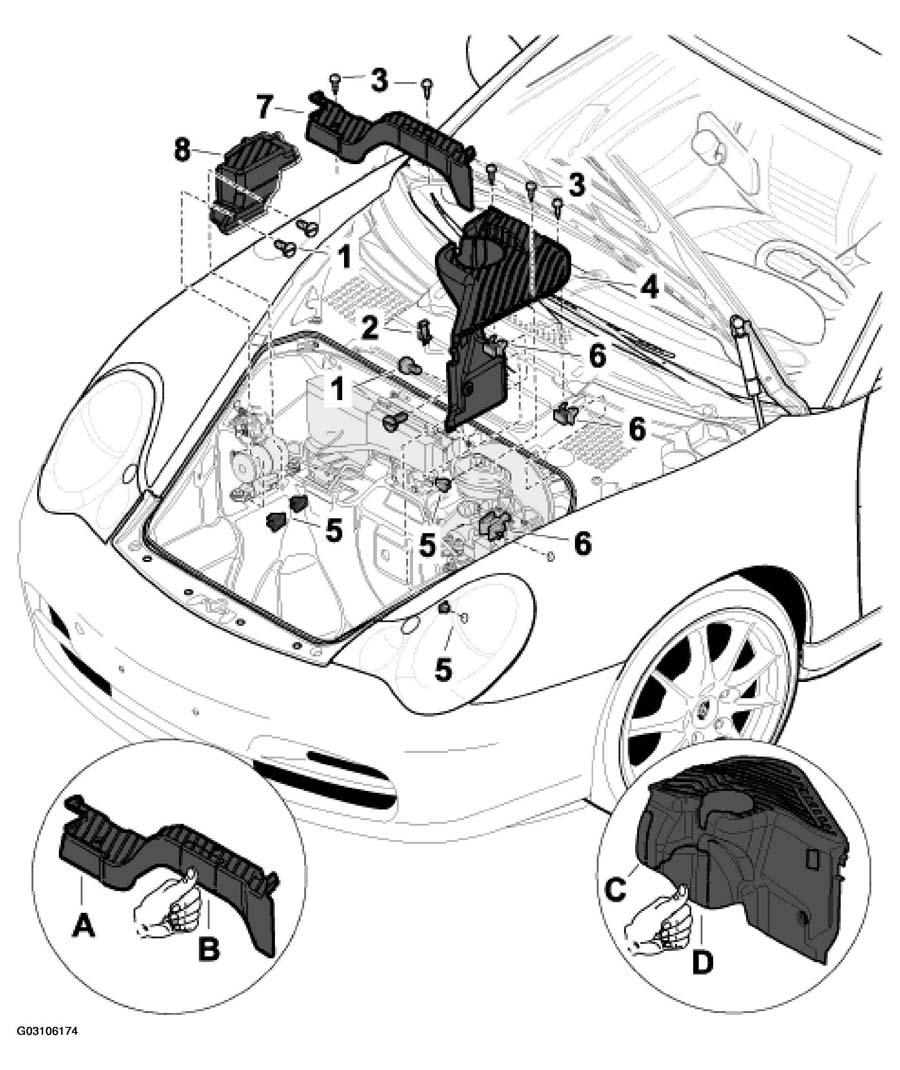

REMOVING AND INSTALLING PROCEDURE FOR TRIMS UNITS WITH PSM
| No. | Designation | Qty. | Removal | Installation | ||
|---|---|---|---|---|---|---|
| 1(1) | Cam | 2 | Turn 90° and remove. | Position and turn 90°. | ||
| 2(1) | Interior light | 1 | Press out. | Press in. | ||
| 3(1) | Fastening screws | 3 | Unscrew. | Screw in. | ||
| 4(1) | Trim units | 1 | Unscrew fastening screws -3- (1) | Screw in fastening screws -3- (1) | ||
| 5(1) | Holder | 2 | ||||
| 6(1) | Holder | 2 | ||||
| 7(1) | Trim units | 1 | Unscrew fastening screws -3- (1) | Screw in fastening screws -3- (1) | ||
| 8(1) | Trim units | 1 | Turn cam -1- (1) | Turn cam -1- (1) | ||
|
||||||
NOTE:
- When replacing the trim units -4, 7- the recesses -A, B, C, D- must be knocked out in accordance with the vehicle equipment. See () .
- A = recess for CD changer
- B = recess for CD amplifier
- C = recess for amplifier
- C = recess for PSM
