Removing And Installing Carpet Lining With PSM

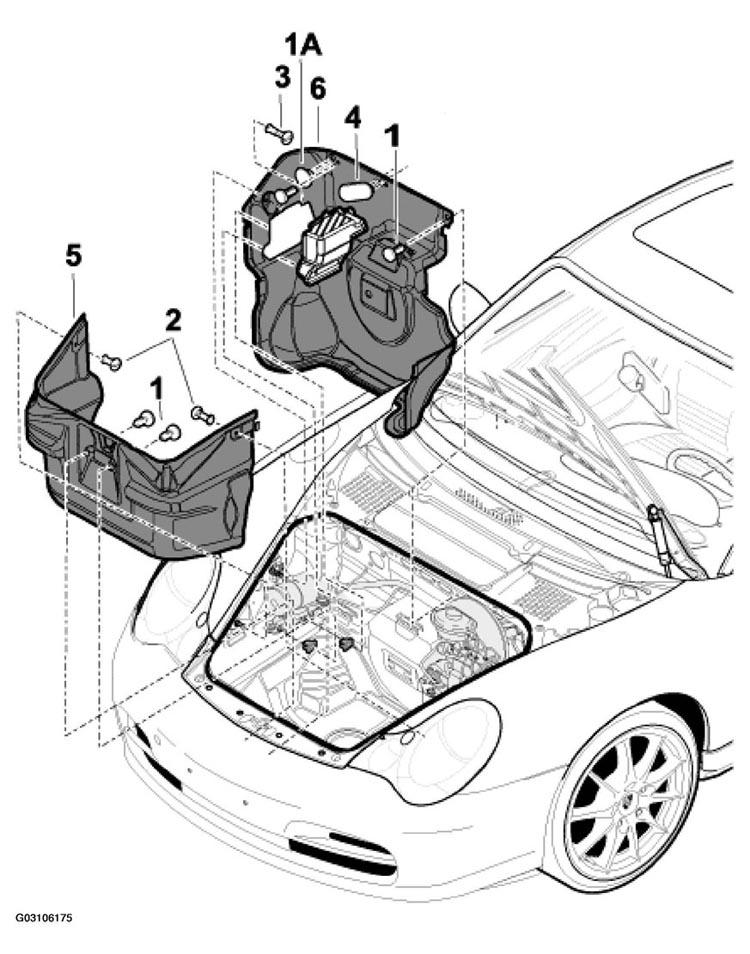

REMOVING AND INSTALLING PROCEDURE FOR CARPET LINING WITH PSM
| No. | Designation | Qty. | Removal | Installation | ||
|---|---|---|---|---|---|---|
| 1A(1) | Closure cap | 2 | Removal tool: | Press in. | ||
| 1(1) | Plug | 4 | Removal tool: | Press in. | ||
| 2(1) | Short plastic nuts | 1 | Unscrew. | Screw in. | ||
| 3(1) | Long plastic nuts | 3 | Unscrew. | Screw in. | ||
| 4(1) | Cover cap | 1 | ||||
| 5(1) | Front carpet lining | 2 | ||||
| 6(1) | Rear carpet lining | 2 | ||||
|
||||||
