Installing Instrument Cluster

  1. Engage electrical plug connections and fasten the dashboard insert on the dashboard.
  2. Install hazard warning light switch.

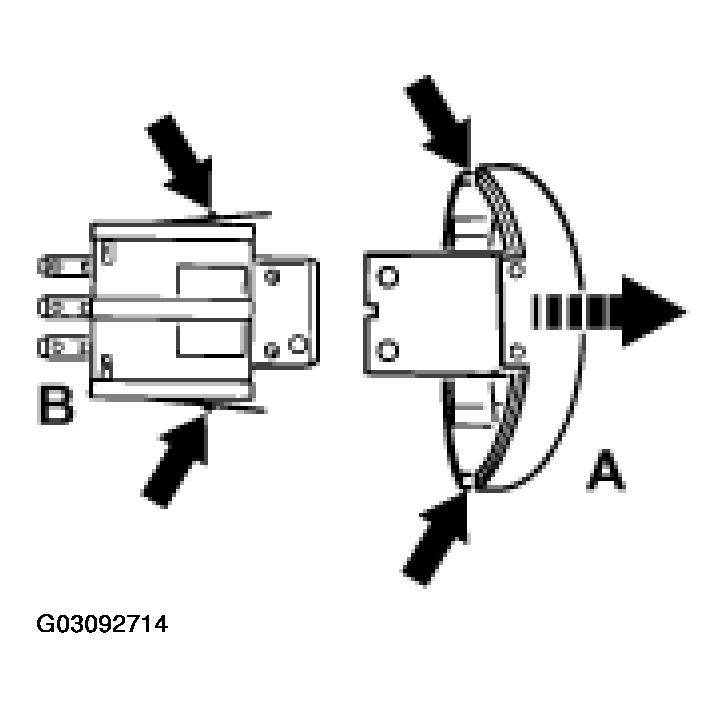

  3. Press button -A-  onto the hazard warning light switch -B-  until the button is heard to engage. See Figure .
  4. Connect the battery and perform a function test.
    • If a new instrument cluster has been installed, it must be coded.
