Removing and installing lower part of lid lock at rear: Notes
NOTE:

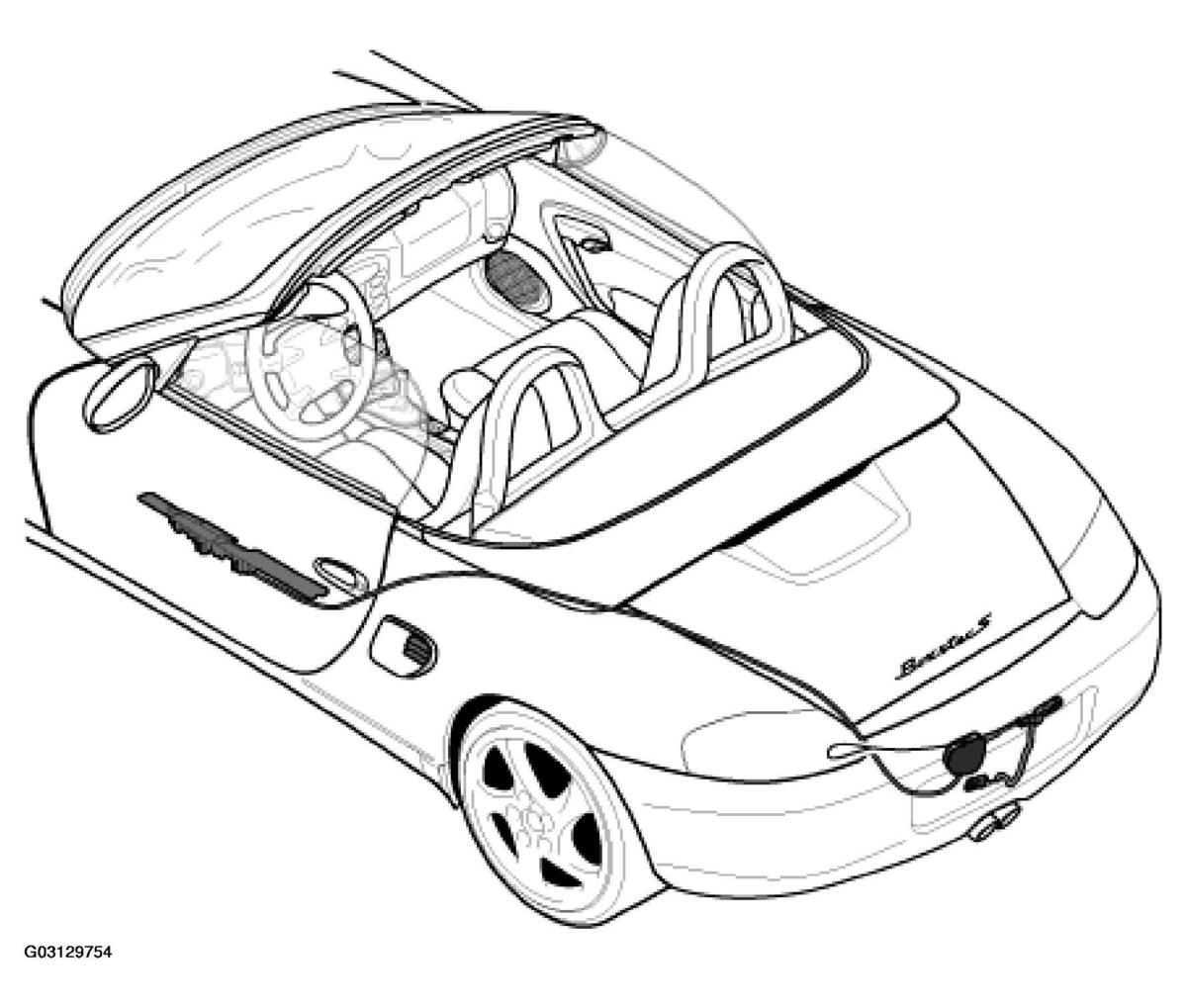

- Observe the variant table of the installed bowden cables!
- See SURVEY OF INSTALLED BOWDEN CABLE VARIANTS

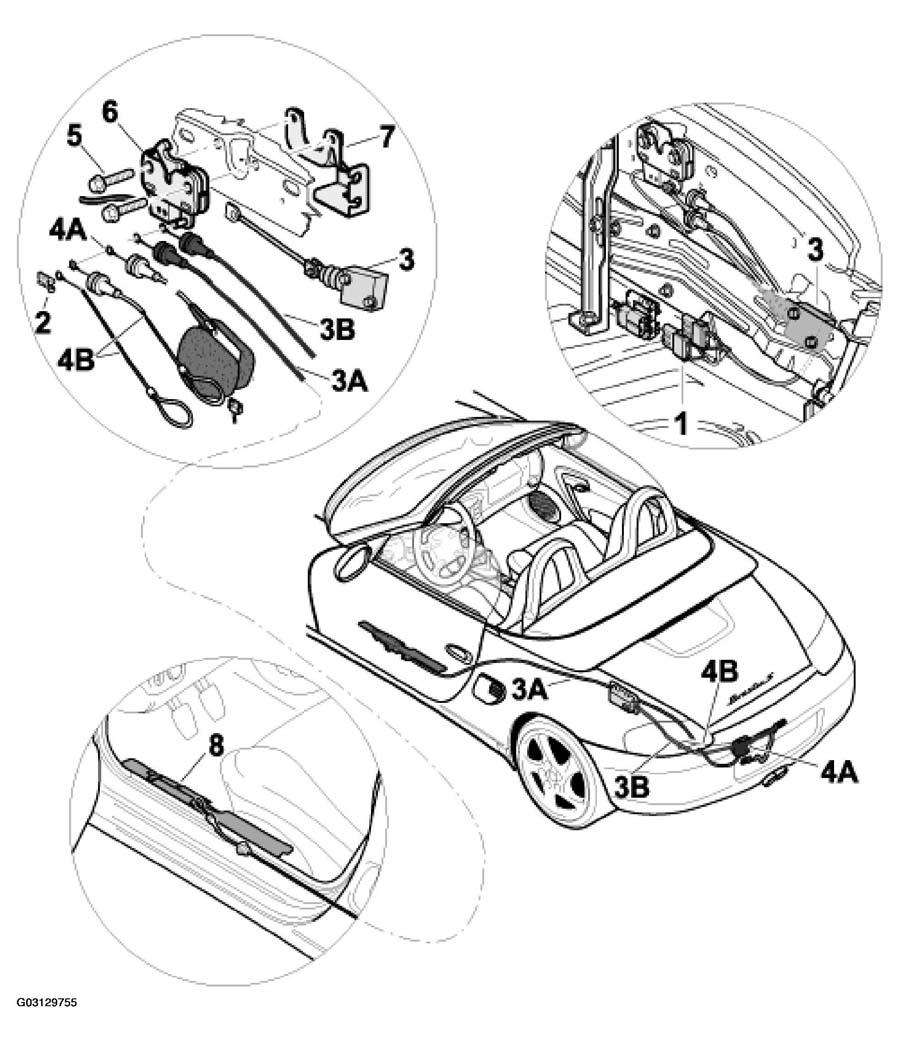

LOWER PART OF LID LOCK AT REAR REMOVING AND INSTALLING PROCEDURE
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Electrical plug connection, lower part of lock | 1 | Press the locking tabs on the let and right of the wiring harness plug connection -1- . See Fig 2 . | Connect wiring harness plug connection -1- . See Fig 2 . |
| 2 | Retainer | 1 | ||
| 3 | Guide rod with servo motor unit | 1 | See REMOVING AND INSTALLING LID RELEASE MOTOR | See REMOVING AND INSTALLING LID RELEASE MOTOR |
| 3A | Bowden cable | 1 | Press the bowden cable -3A-7- . See Fig 2 . | Press the bowden cable -3A-7- . See Fig 2 . |
| 3B | Bowden cable emergency release, only USA vehicles As of model year 2003 | 1 | Press the bowden cable -3B-7- . See Fig 2 . | Press the bowden cable -3B-7- . See Fig 2 . |
| 4A | Bowden cable with servo motor unit | 1 | Press or pull the bowden cable with servo motor unit -4A-7- . See Fig 2 . | Press the bowden cable with servo motor unit -4A-7- . See Fig 2 . |
| 4B | Bowden cable emergency operation | 1 | ||
| 5 | Fastening screws | 2 | Unscrew. | Screw the lower part of the lock -6-7-5-10 Nm (7.5 ftlb.)- . See Fig 2 . |
| 6 | Lower part of lock | 1 | Screw lower part of lock in place with the holder -7- . See Fig 2 . | |
| 7 | Holder | 1 | ||
| 8 | Sill cover with handle liner | 1 | See Disassembling and assembling release for the front cover - up to model year 2000 | See Disassembling and assembling release for the front cover - up to model year 2000 |
