Removing lid release motor

  1. Unscrew both fastening nuts and take out the retaining strip.

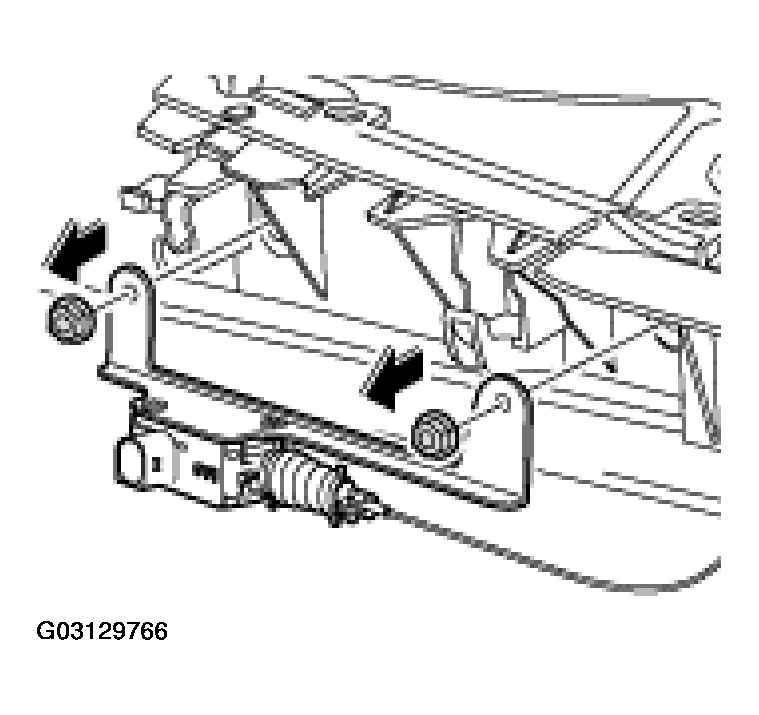

    Fig 1: Unscrewing Both Fastening Nuts And Taking Out Retaining Strip
    G03129766Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Disconnect the electrical plug connection.

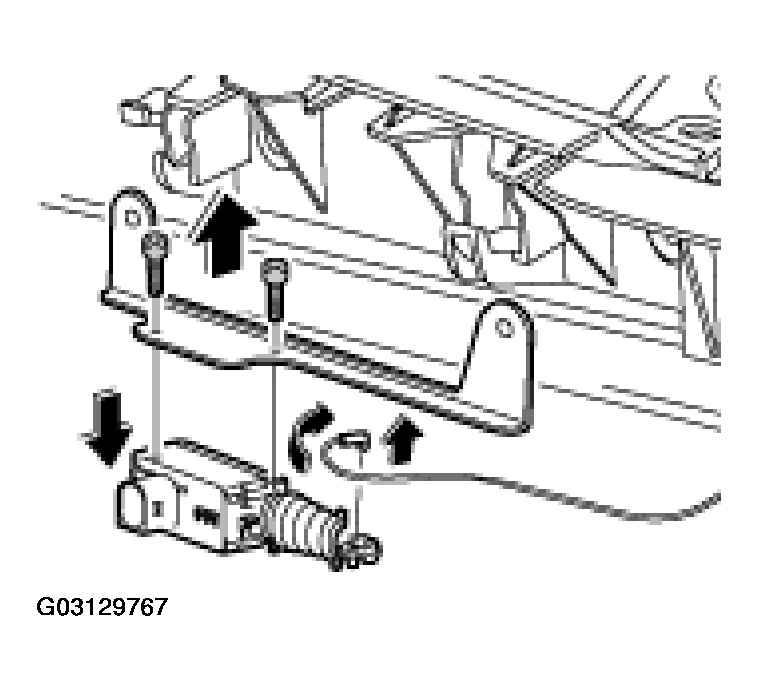

    Fig 2: Disconnecting Electrical Plug Connection From Lid Release Motor
    G03129767Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Unscrew the fastening screws and disengage the cable.
