Removing and installing rate-of-turn sensor: Removal

CAUTION: The rate-of-turn sensor is a micro-mechanical component and is very sensitive to impacts!
NOTE: Perform removal and installation with the ignition switched off!
  1. Move the front seats into the rear seat position.
  2. Remove side-panel lining in front of the centre console on the left -A-  and right.

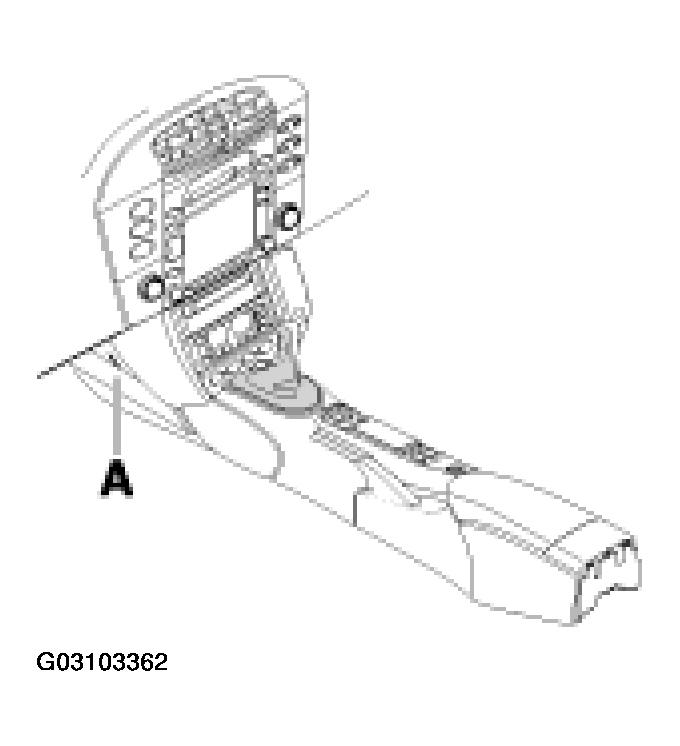

    Fig 1: Removing Side-Panel Lining In Front Of Centre Console On Left
    G03103362Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Remove fastening nuts of the rate-of-turn sensor on the right and left. See Fig 2 .

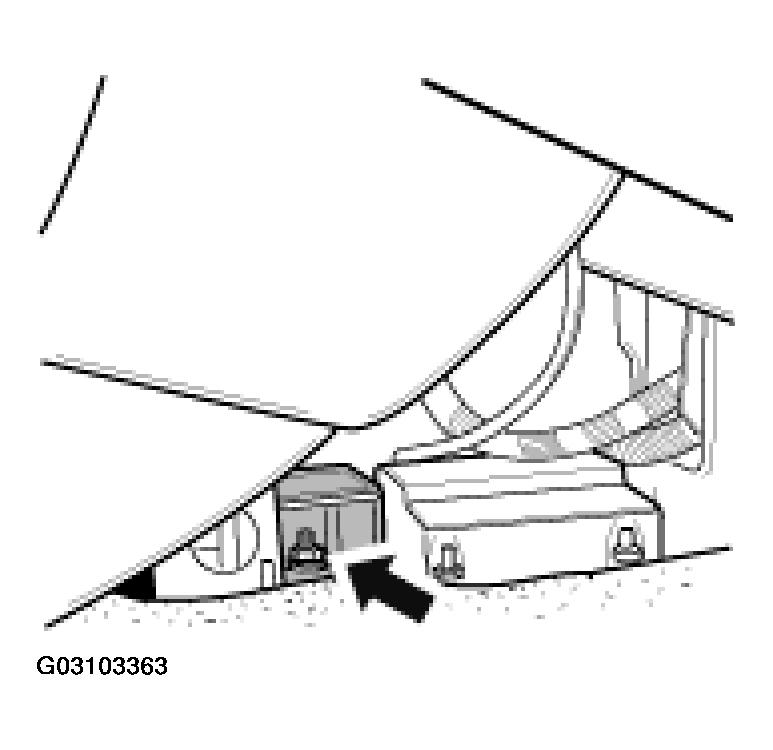

    Fig 2: Removing Fastening Nuts Of Rate-Of-Turn Sensor
    G03103363Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Pull out the rate-of-turn sensor and unlock and pull off the plug with the ignition switched off.
NOTE: Pull at the plug housing only! Never pull the electrical connections!
