Overview of tools and materials

The following tools and materials are required for removing and installing the windscreen with 2-component adhesive:

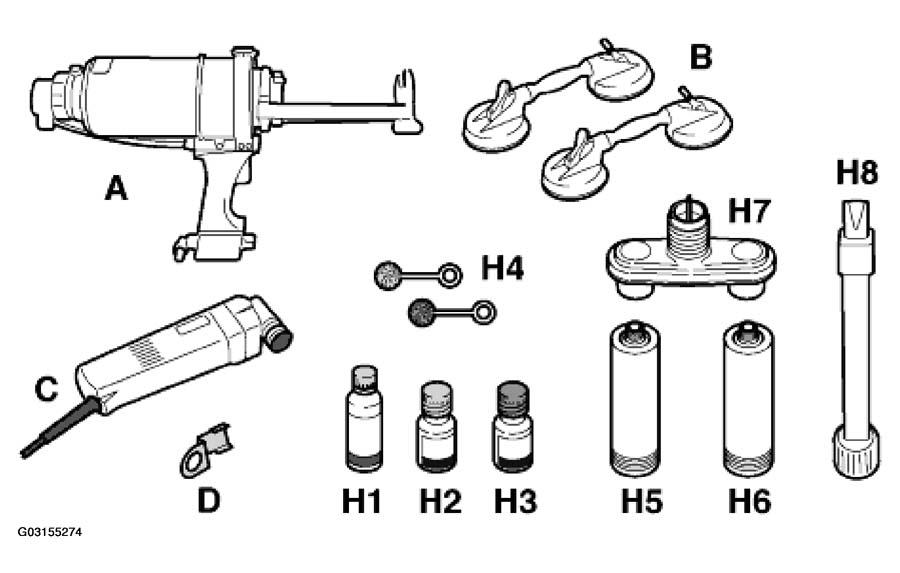

Fig 1: View Of Tools And Materials (1 Of 2)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

COMPONENTS DESIGNATION (A, B, C, D, H)

COMPONENTS DESIGNATION (H)

Item	Designation	Item	Designation
-H1-	Cleaning solution	-H5-	Cartridge, component A
-H2-	Primer	-H6-	Cartridge, component B
-H3-	Activator	-H7-	Mixing nozzle
-H4-	Swab	-H8-	Processing nozzle

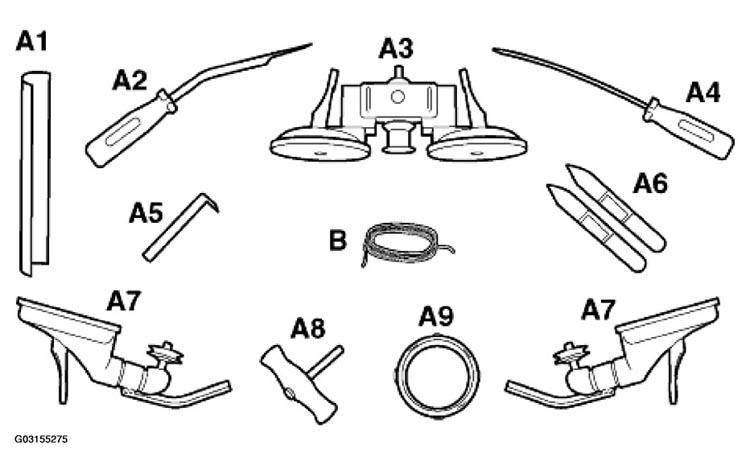

Fig 2: View Of Tools And Materials (2 Of 2)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

COMPONENTS DESIGNATION (A, B)

Item	Designation	Remarks
-A-		Contains set components A1-A9
-B-

COMPONENTS DESIGNATION (A)

Item	Designation	Item	Designation
-A1-	Guide rails	-A6-	Filler
-A2-	Cutting tool (wire holder)	-A7-	Steering roller with arm bracket
-A3-	Spooling device	-A8-	Handle
-A4-	Awl	-A9-	Square cutting wire
-A5-	Guide rails
