Replacing convertible-top covering: Notes
NOTE:
- The following convertible-top covering spare parts are required for replacement of the convertible-top covering!
- The spare parts contained in the "convertible-top covering" scope of parts must always be replaced!
- The convertible-top covering must be replaced at a room temperature of at least 15 degrees Celsius (59 Fahrenheit)!
- The roof liner must be removed when replacing the convertible-top covering on the model version with roof liner!
- The centre cover moulding is characterised by a second groove for the connection to the roof liner which must be ordered separately!

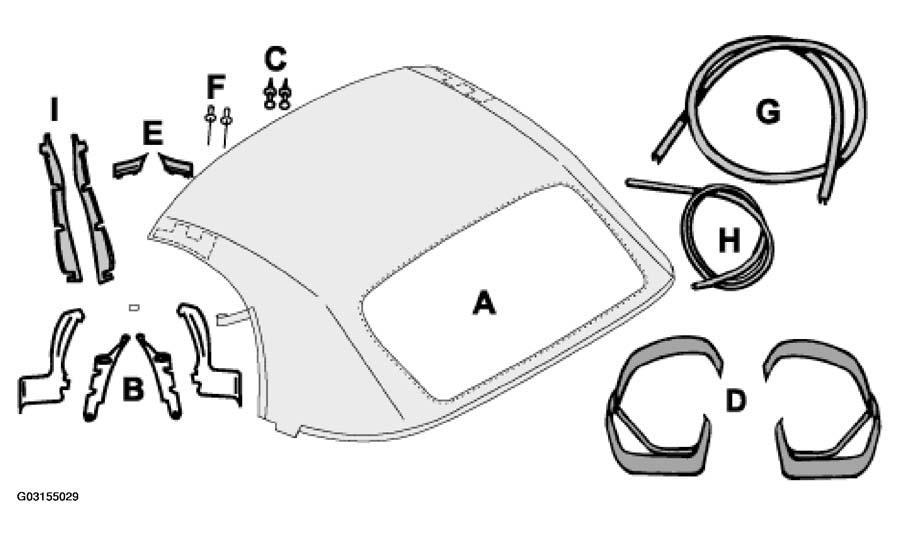

CONVERTIBLE-TOP COVERING SPECIFICATIONS
| A = Convertible-top covering | D = Tension strap | G = Tension bow seal |
| B = Slider/rail | E = Tension strap cover | H = Seal |
| C= Plastic plug | F = Tubular rivets | I = Side sea |
