Assembly instructions for hardtop assembly fixture: Notes

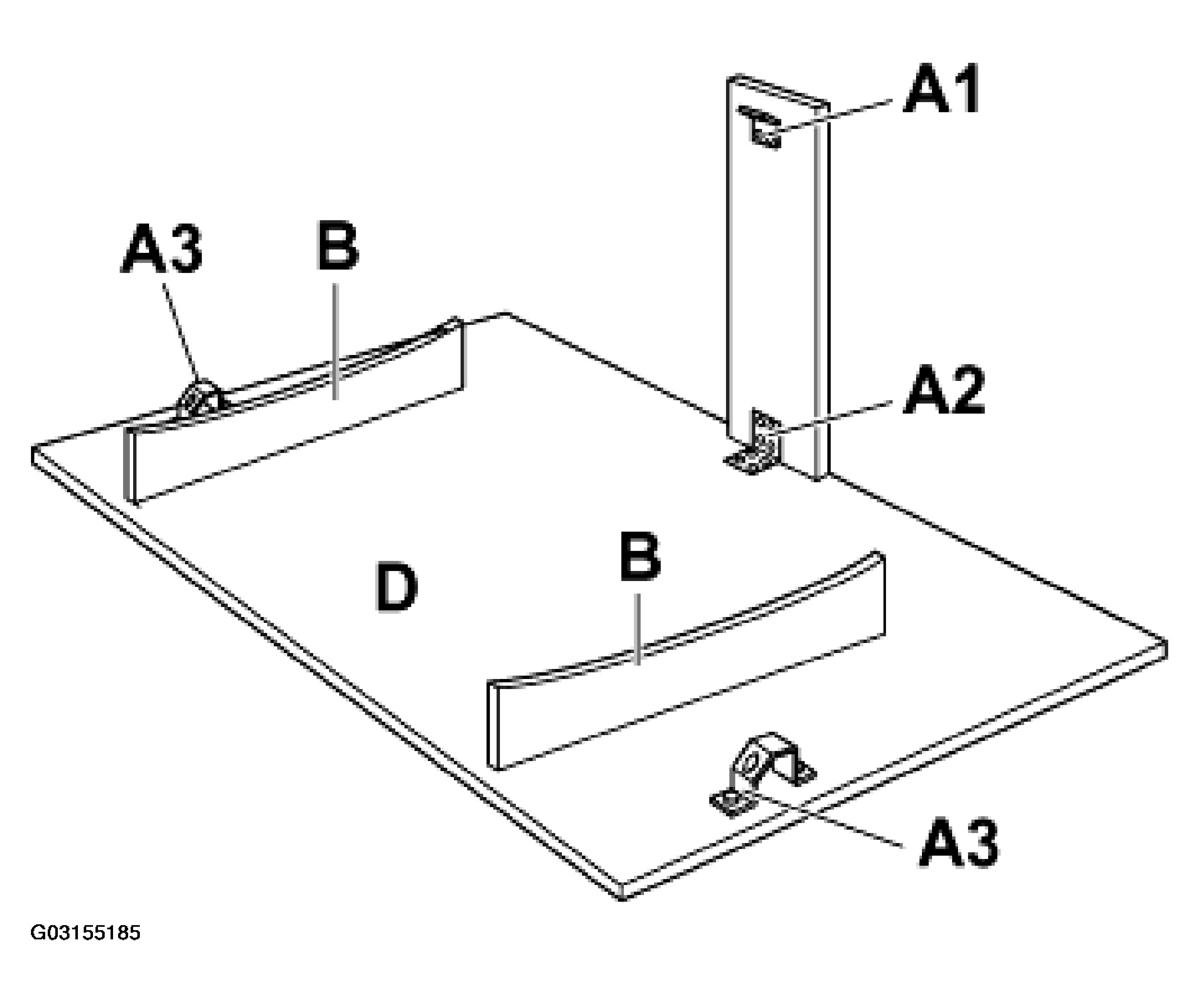

Fig 1: Assembly Instructions For Hardtop Assembly Fixture

G03155185

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Contents mounting tools:

A1 = bracket (1x)
A2 = hinge (1x)
A3 = contact surface (2x)
A4 = straight pin 6 m6 x 40 (6x)
A5 = countersunk screw 4.5 x 20 (8x)
A6 = countersunk screw 6 x 20 (2x)
A7 = hexagon-head bolt 6 x 20 with disc (4x)
