Installing sun visors

  1. Fitting sun visor
    1. Insert sun visor -3-  into the bearing pedestal.
    2. Position sun visor -3-  and screw down using the fastening screw -2-  .
    3. Press in cover -1-  until it engages.

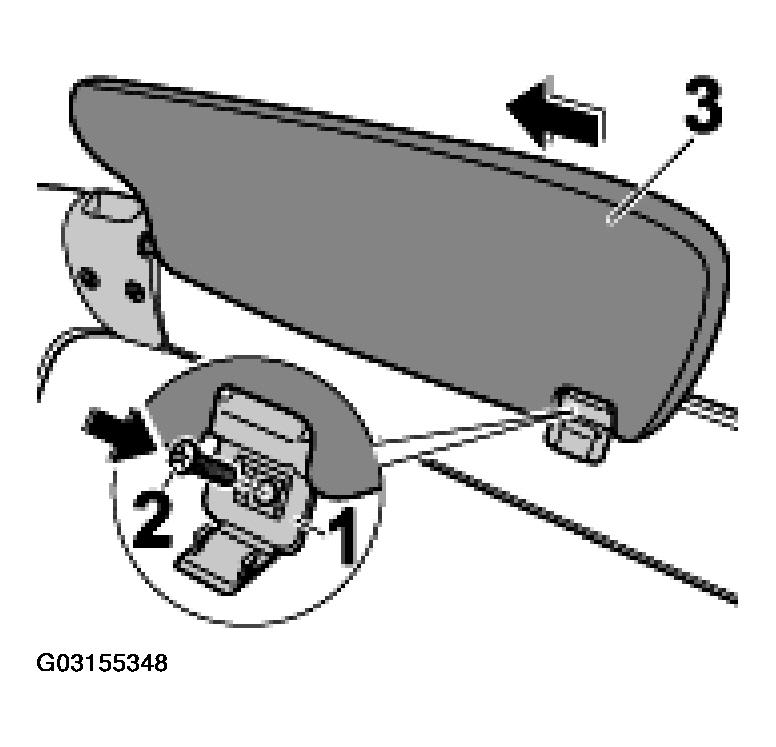

Fig 1: Installing Sun Visors
G03155348Courtesy of PORSCHE OF NORTH AMERICA, INC.
