Disassembling front spoiler

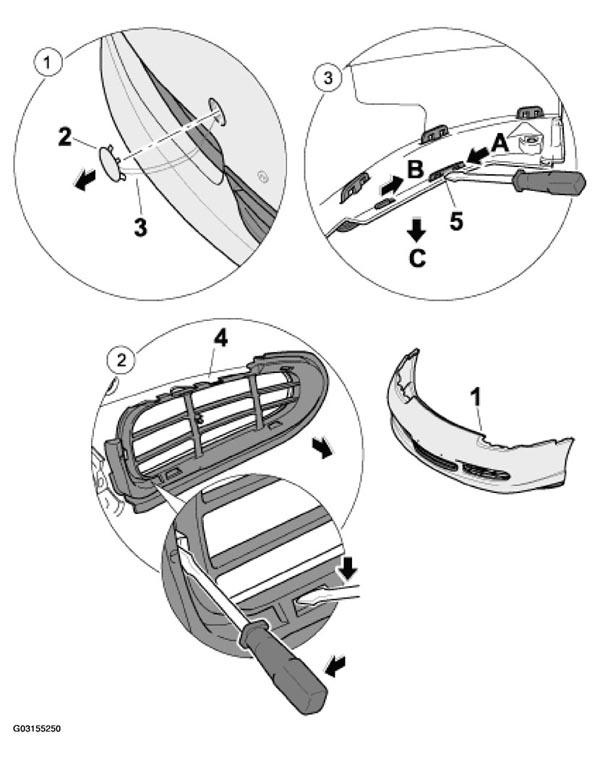

Fig 1: Disassembling Front Spoiler Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

DISASSEMBLING FRONT SPOILER PROCEDURE

No.	Procedure	Instructions
1	Removing covering cap -2- . See Fig 1 .	Carefully press out covering cap -2-3-2-1- . See Fig 1 .
2	Installing grille frame -4- . See Fig 1 .	Carefully disengage the lugs of the grille frame -4- . See Fig 1 .
3	Removing covering frame -5- . See Fig 1 .	Carefully press in the lugs of the covering frame at the side -5--A-5-direction of arrow C-direction of arrow B-1- . See Fig 1 .
