Assembling front spoiler
ASSEMBLING FRONT SPOILER PROCEDURE
| No. | Procedure | Instructions |
|---|---|---|

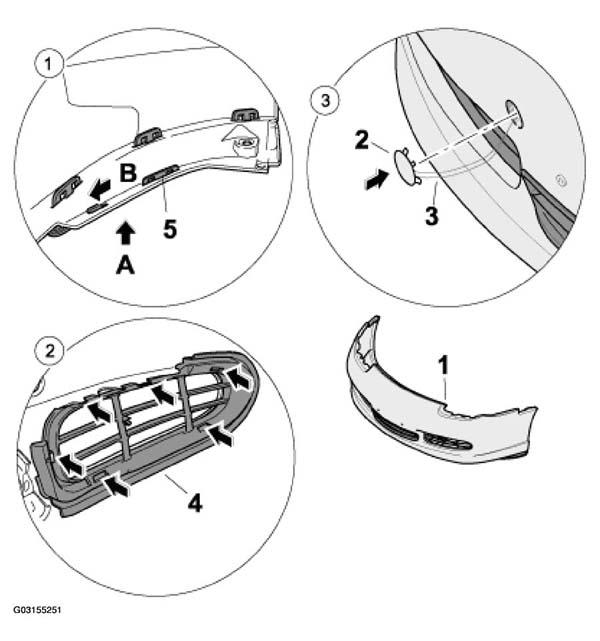

| 1 | Installing covering frame -5- . See Fig 1 . | Insert covering frame -5-direction of arrow B--5--direction of arrow C-1- . See Fig 1 . |
| 2 | Installing grille frame -4- . See Fig 1 . | Lock grille frame -4-1- . See Fig 1 . |
| 3 | Installing covering cap | Pull the securing cord -3-2-1-2-1- . See Fig 1 . |
