Removing And Installing Passenger Compartment Monitoring Sensor: Removal

Using a small screwdriver, carefully unclip both cover lenses at the openings provided. Undo M 6 (Torx T30) fastening screws.

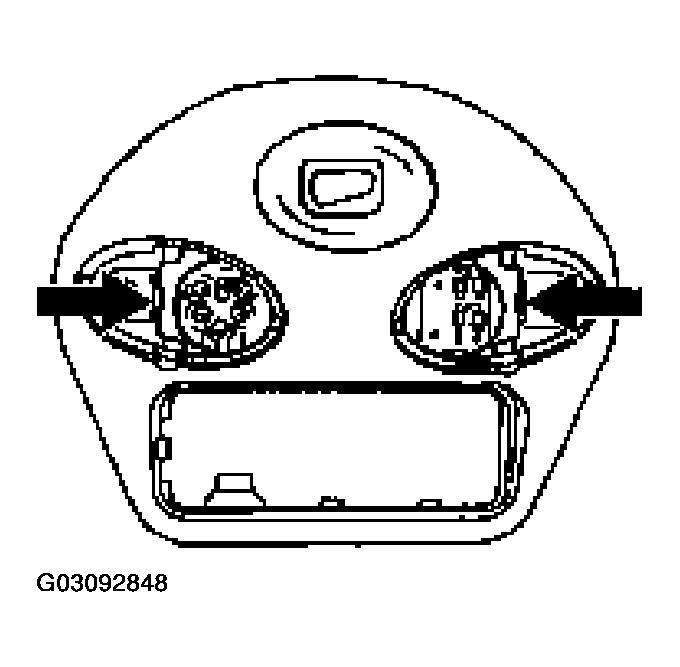

Fig 1: Unclipping Cover Lenses
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Remove locking hook holder and pull off electrical plug connections.
Unclip passenger compartment monitoring sensor at the side and remove from the locking hook holder.

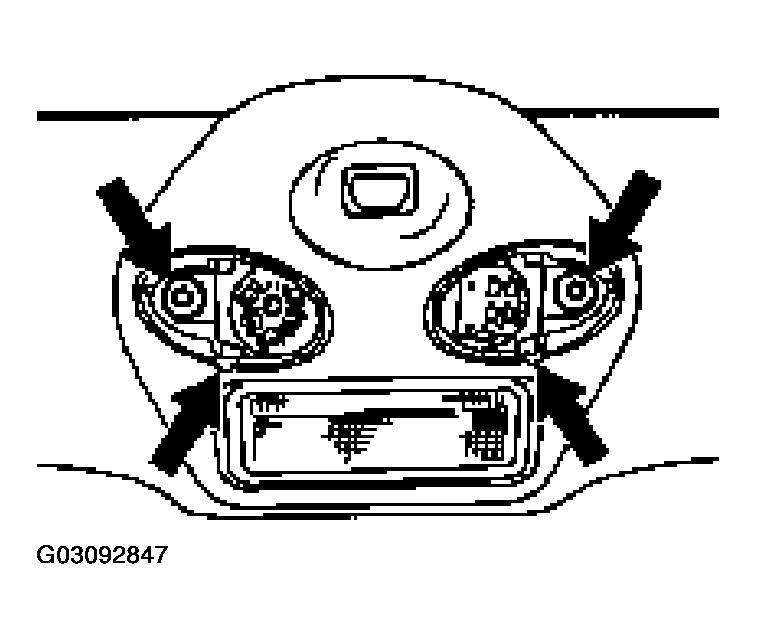

Fig 2: Removing Passenger Compartment Monitoring Sensor From Locking Hook Holder
Courtesy of PORSCHE OF NORTH AMERICA, INC.
