Setting the door

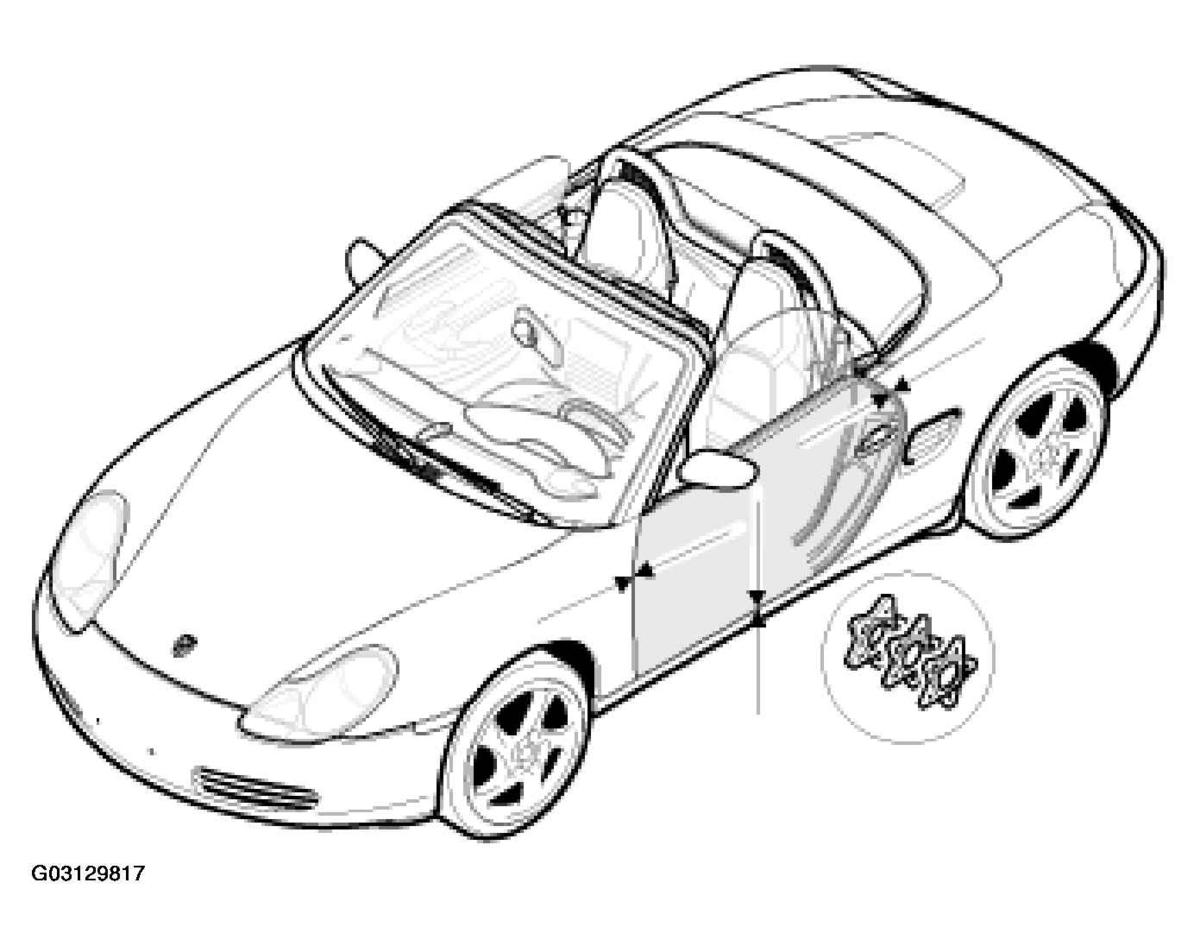

Fig 1: Identifying Door Gap Measurment Points

G03129817

Courtesy of PORSCHE OF NORTH AMERICA, INC.

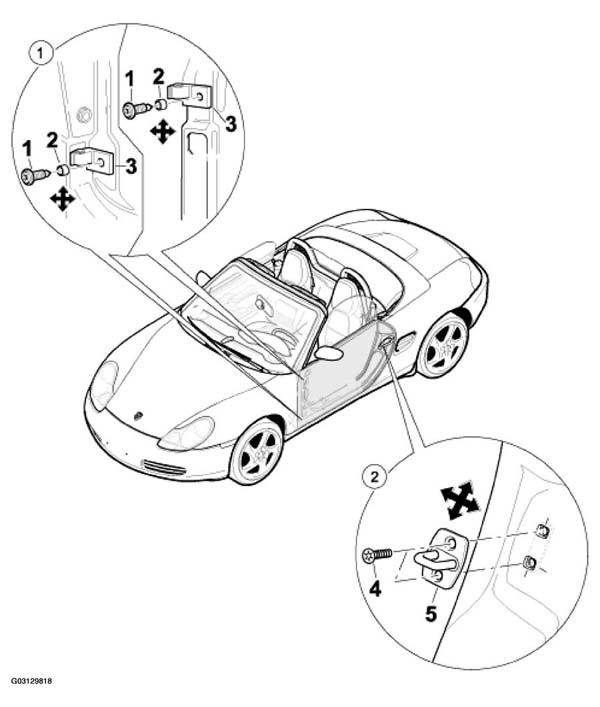

Fig 2: Door Gap Setting Components

G03129818

Courtesy of PORSCHE OF NORTH AMERICA, INC.

DOOR SETTING PROCEDURE

No.	Procedure	Instructions
1	Setting t he door at front	Undo fastening screw -1-3-2- . See Fig 2 . Refer to GAP DIMENSIONS, BODY .
2.	Setting the door at rear	Undo fastening screw -4-5- . See Fig 2 . Refer to GAP DIMENSIONS, BODY .
