Removing And Installing The Wiper Link: Installation

  1. Observe the installation sequence for the fastening screws 1...3.

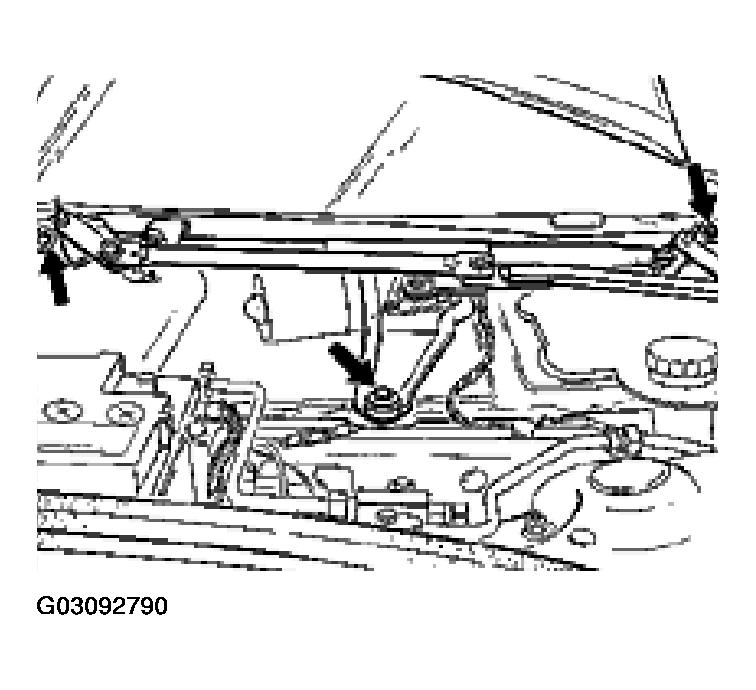

    Fig 1: Installing Left Dome Strut
    G03092790Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Tightening torques:
    TIGHTENING TORQUES SPECIFICATIONS - LEFT DOME STRUT

    Wiper arm nut M 17 Nm
    Hexagon-head bolts M6 10 Nm
  3. Before installing the dome strut, the vehicle must be on its wheels.
