Removing And Installing Pump For Windscreen Washer System: Removal

  1. Remove tank for windscreen washer system. Refer to REMOVING AND INSTALLING TANK FOR WINDSCREEN WASHER SYSTEM  .
  2. Remove hose to the spray nozzles at the tank and turn the pump outlet to the rear.
  3. Lift pump out of the rubber sleeve.

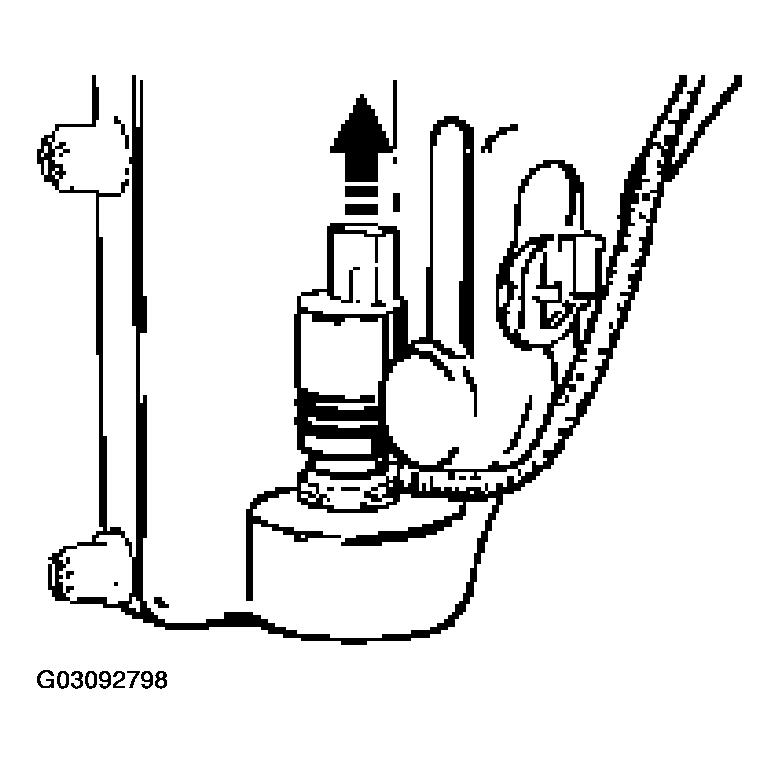

    Fig 1: Lifting Windshield Washer Pump Out Of Rubber Sleeve
    G03092798Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Pull hose off the pump.
NOTE: A stuck hose can be pulled off more easily if it is heated with a hot-air gun.
