Parking Assistant
>>
Connector Assignment
Connector Assignment
See
Fig 1
for control module connector assignment.

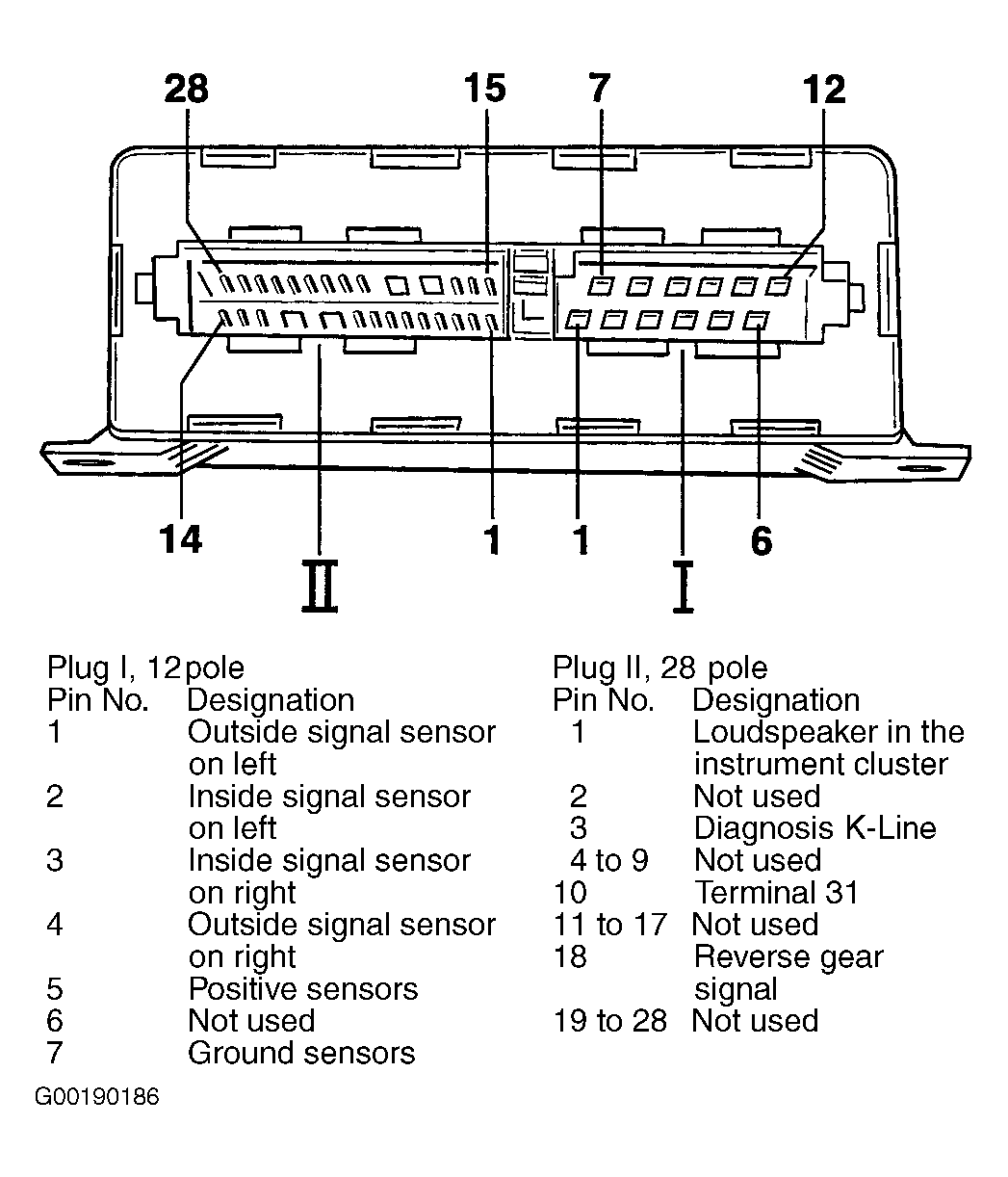

Fig 1: Identifying Parking Assistant Connector Assignment
Courtesy of PORSCHE OF NORTH AMERICA, INC.
