Removing Subwoofer

WARNING: Material damage.
  • The radio must be switched off before the subwoofer is unplugged.
  • Remove ignition key.

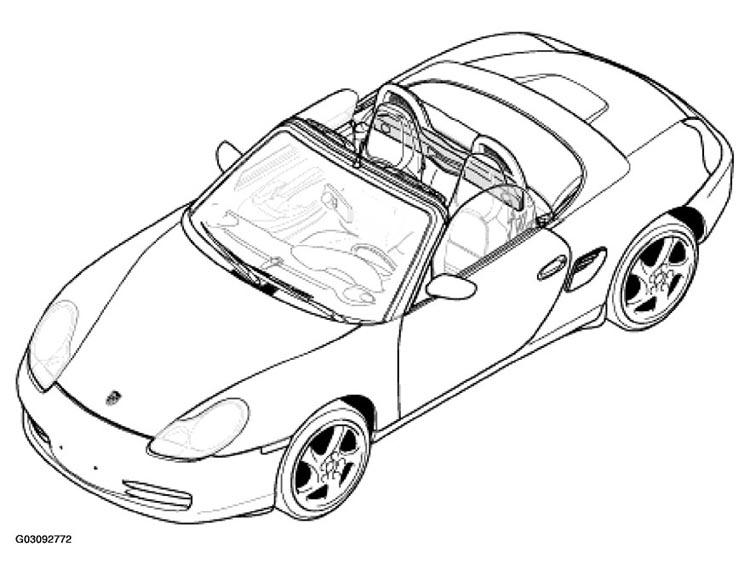

Fig 1: Locating Subwoofer
G03092772Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. Open convertible top approx. 50%.
  2. Open the plugs on the left and right by turning in the -B-  direction. See Fig 2 .

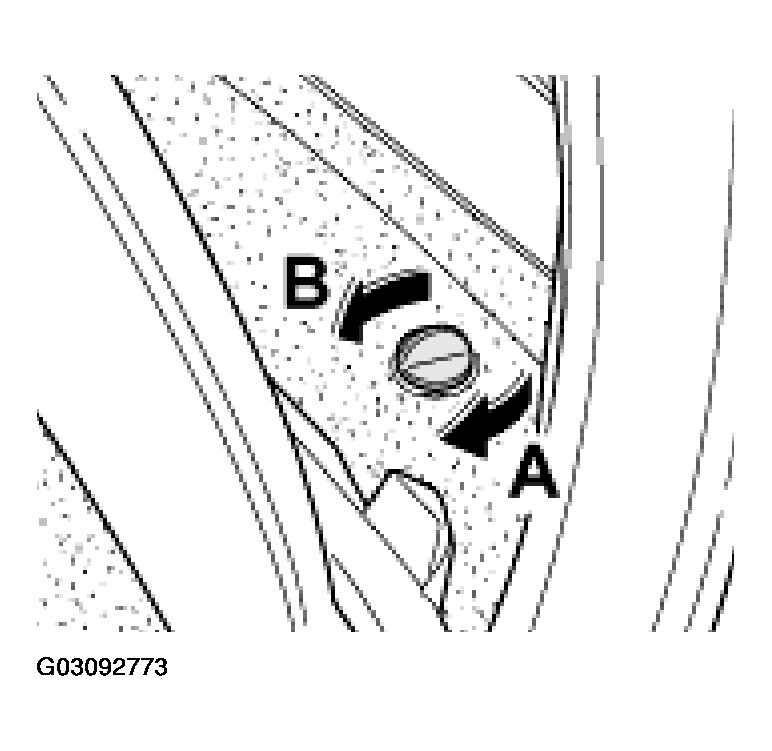

    Fig 2: Opening Plugs On The Left And Right
    G03092773Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Open convertible top approx. 75%.
  4. Unplug the electrical plug connection on the right side beneath the convertible top linkage. Press connectors -arrow-  together and pull apart.

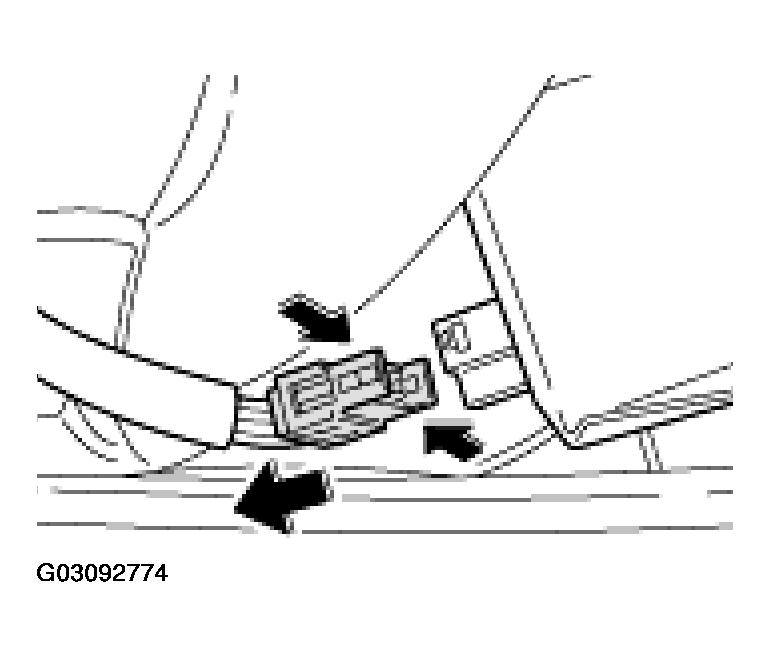

    Fig 3: Unpluging Electrical Plug Connection On The Right Side Beneath The Convertible Top Linkage
    G03092774Courtesy of PORSCHE OF NORTH AMERICA, INC.
  5. Detach tension cables from the tension bow.

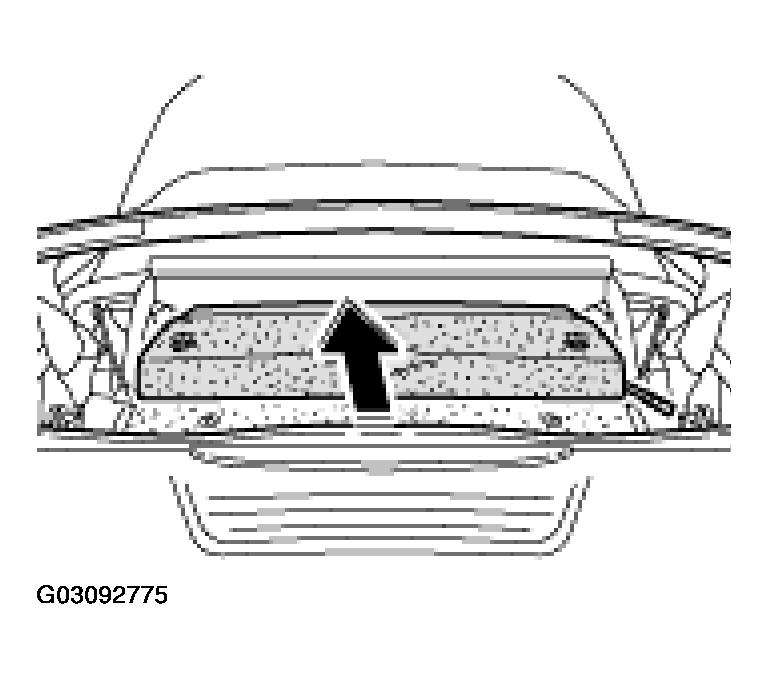

    Fig 4: Detaching Tension Cables From Tension Bow
    G03092775Courtesy of PORSCHE OF NORTH AMERICA, INC.
  6. Close the convertible top to approx. 80% and bring convertible top to service position.
  7. Pull the subwoofer out to the rear.
